Fuel Tank, Eng. Management & Exhaust Systems.

Triumph Trident 800 · 7 diagrams

7 exploded diagrams for the fuel tank, eng. management & exhaust systems. of the Triumph Trident 800, covering the Trident 800. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

FUEL TANK, PUMP, FITTINGS & BODYWORK

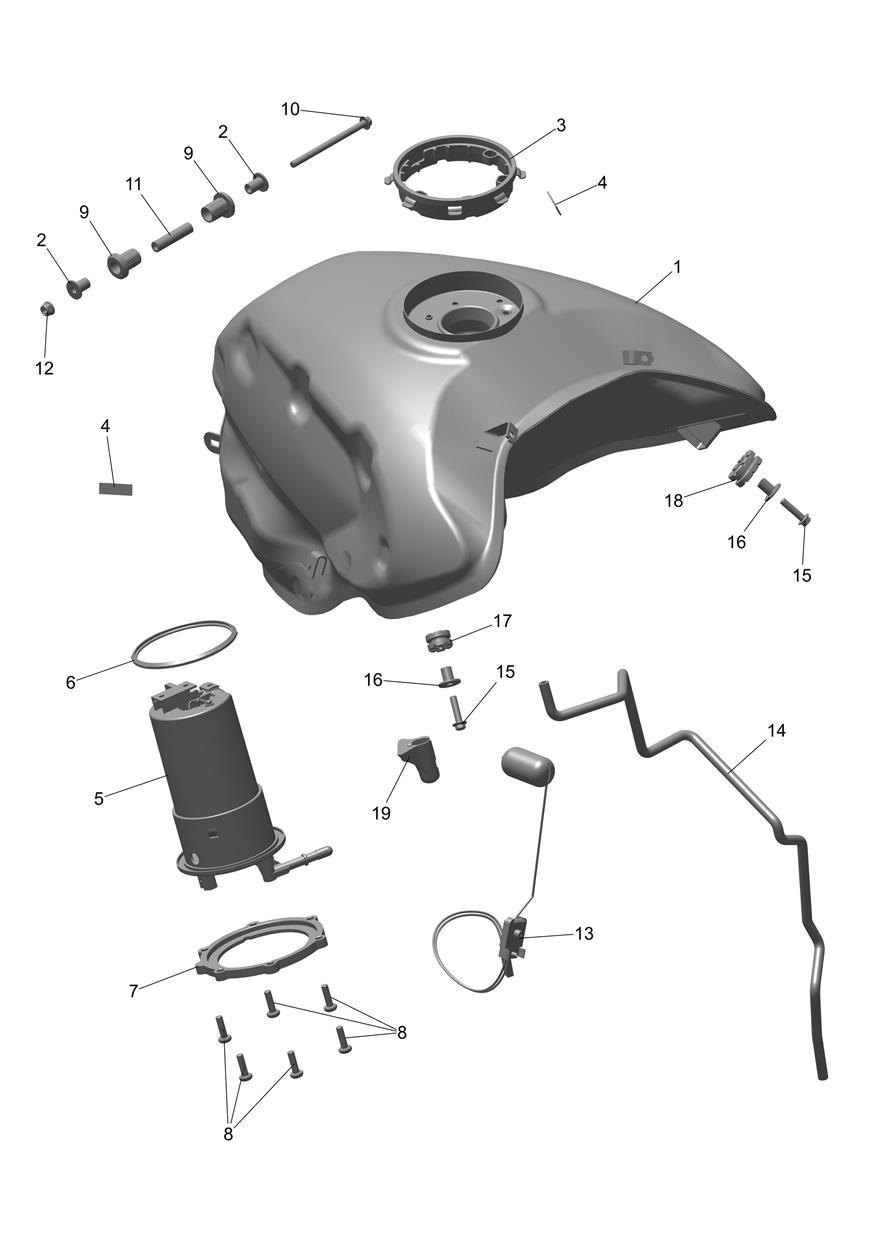

Fuel Tank, Pump and Fittings exploded diagram
Fuel Tank, Pump and Fittings
19 parts

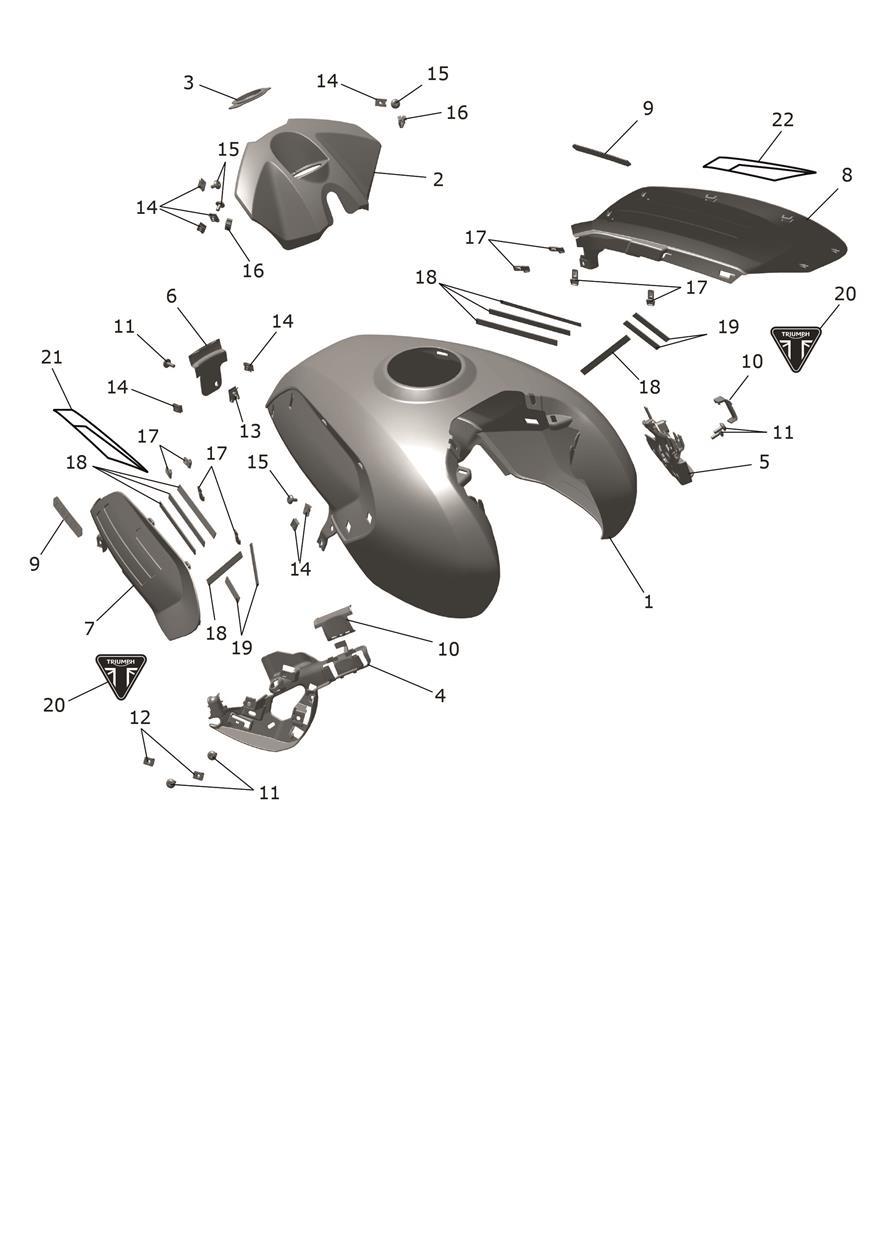

 Fuel Tank Bodywork exploded diagram
Fuel Tank Bodywork
26 parts

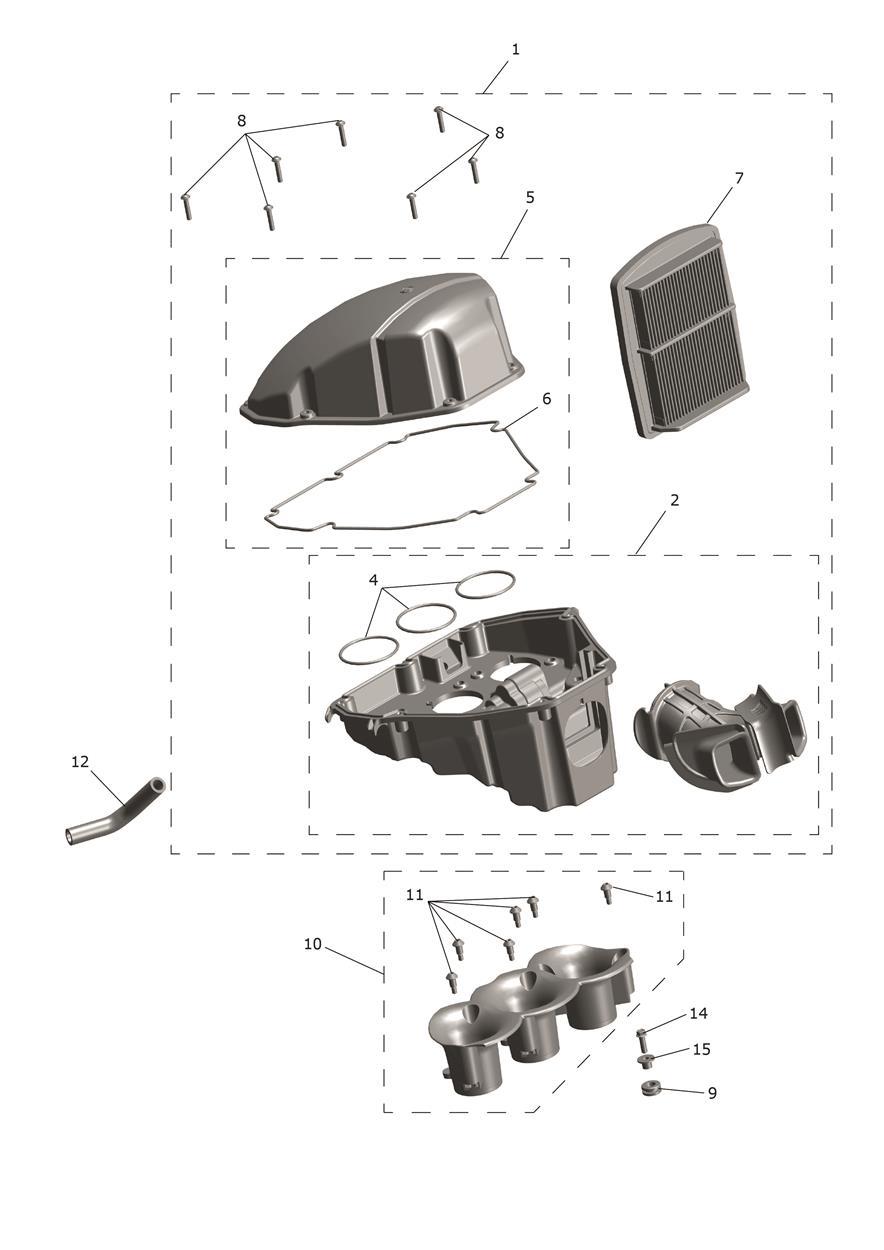

Airbox Assembly exploded diagram
Airbox Assembly
13 parts

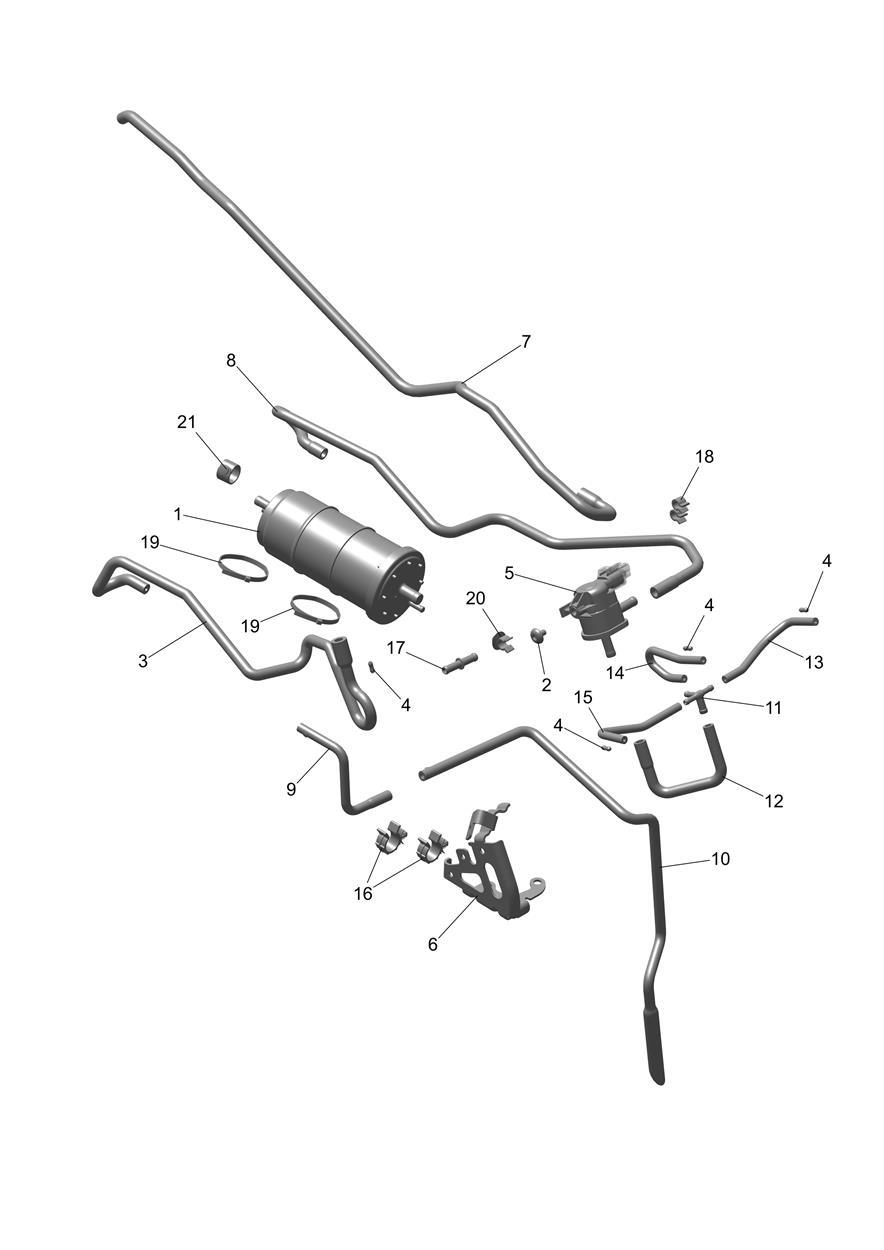

 Evap System exploded diagram
Evap System
21 parts

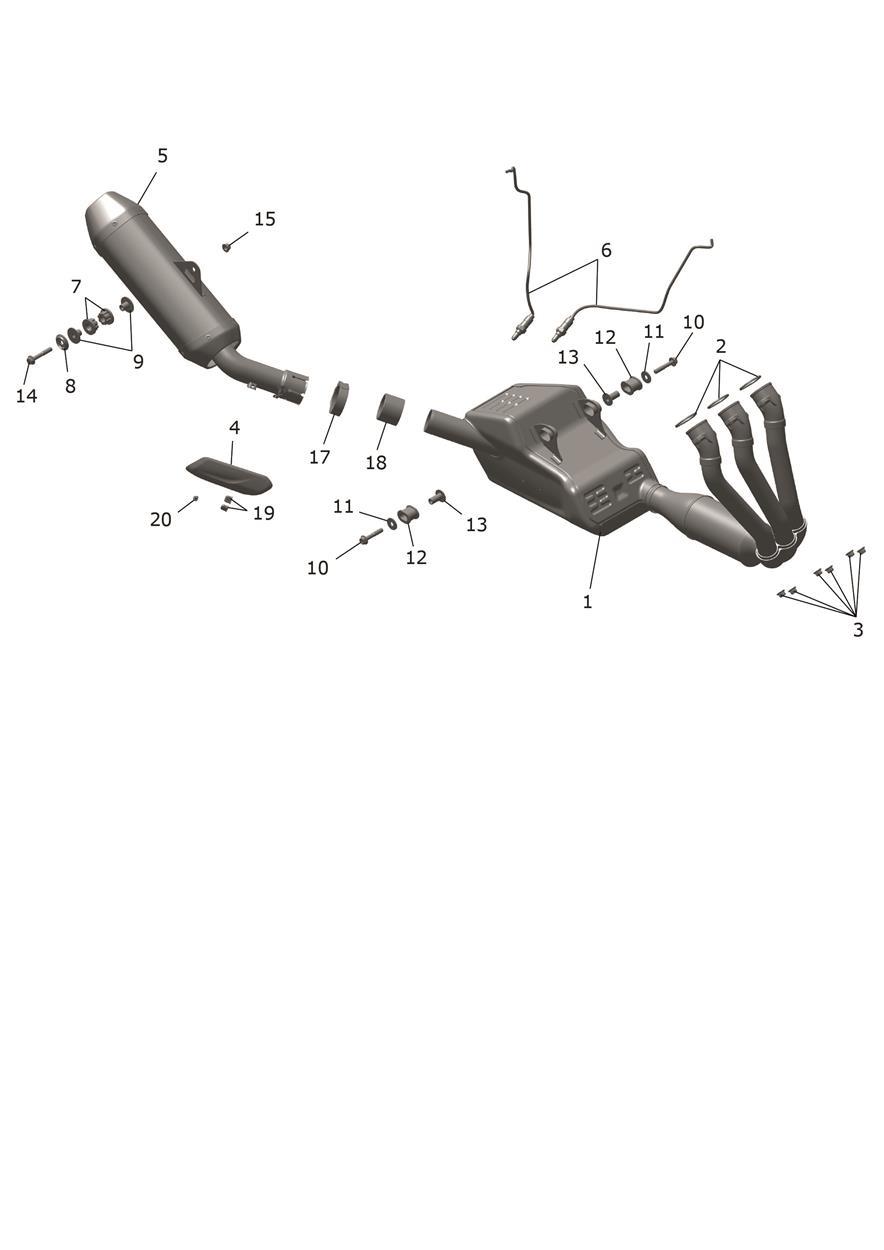

 Exhaust System exploded diagram
Exhaust System
19 parts

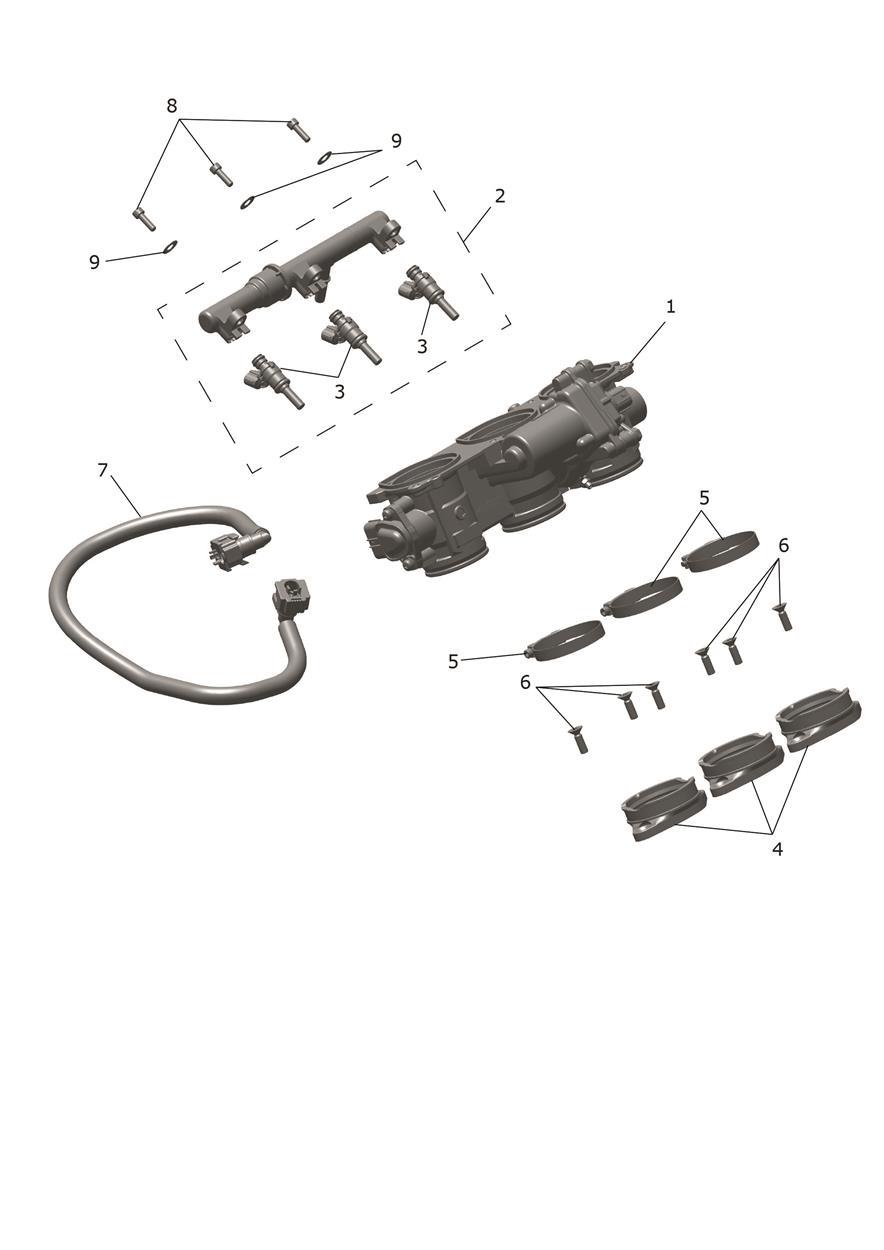

 Throttles, Injectors and Fuel Rail exploded diagram
Throttles, Injectors and Fuel Rail
9 parts

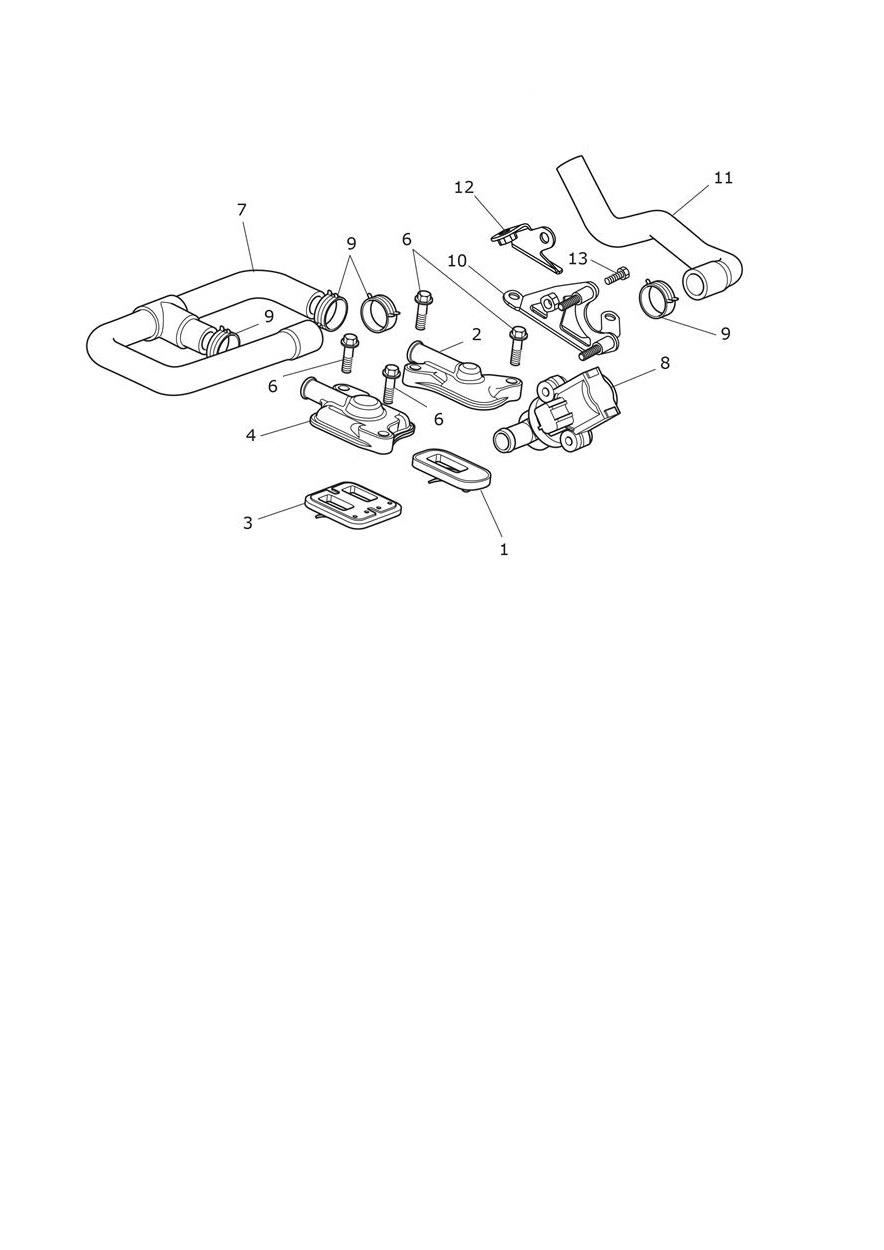

 Emissions Control exploded diagram
Emissions Control
12 parts
