Clutch & Transmission incl. Gearchange Mechanism

Triumph Trophy 1215 · 10 diagrams

10 exploded diagrams for the clutch & transmission incl. gearchange mechanism of the Triumph Trophy 1215, covering the Trophy 1215. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

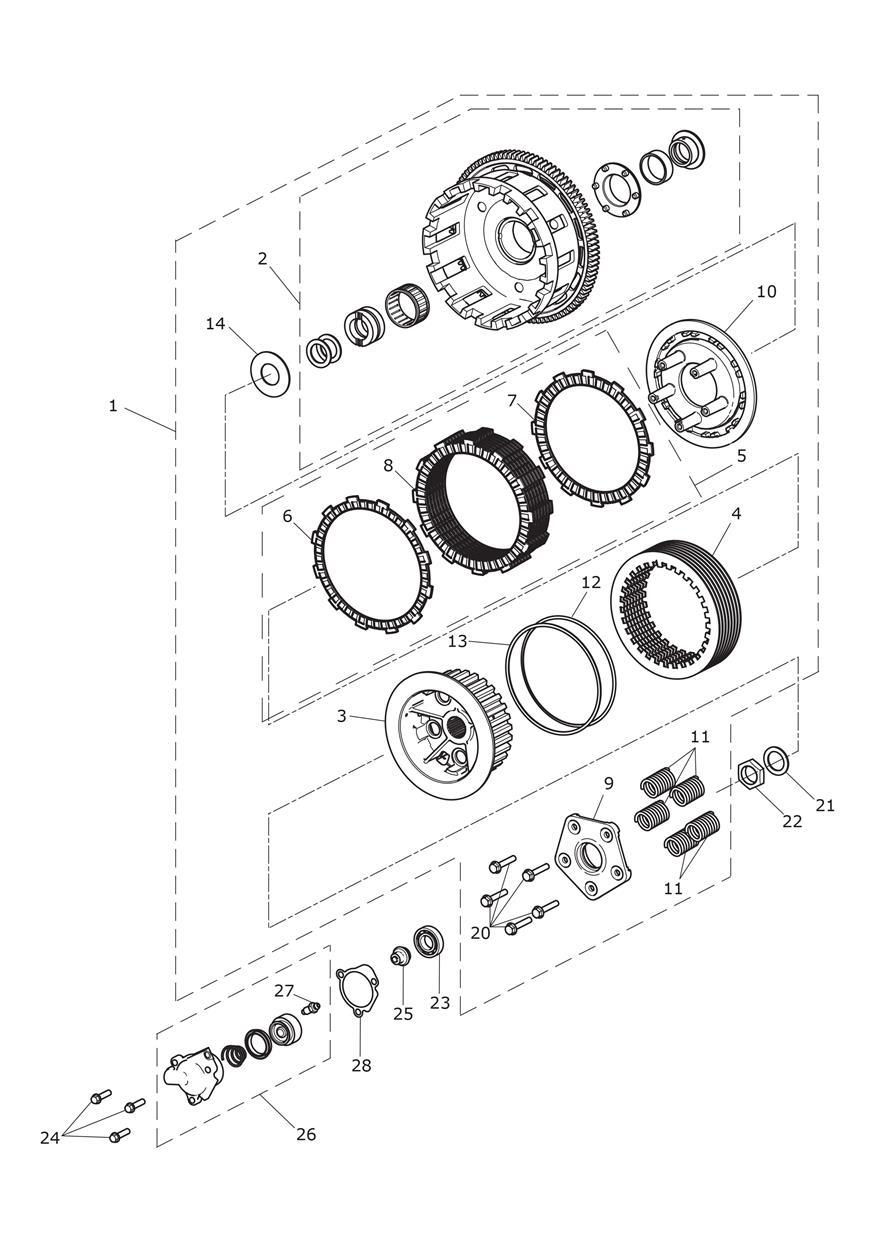

Clutch exploded diagram
Clutch
26 parts
 Clutch exploded diagram
Clutch
26 parts

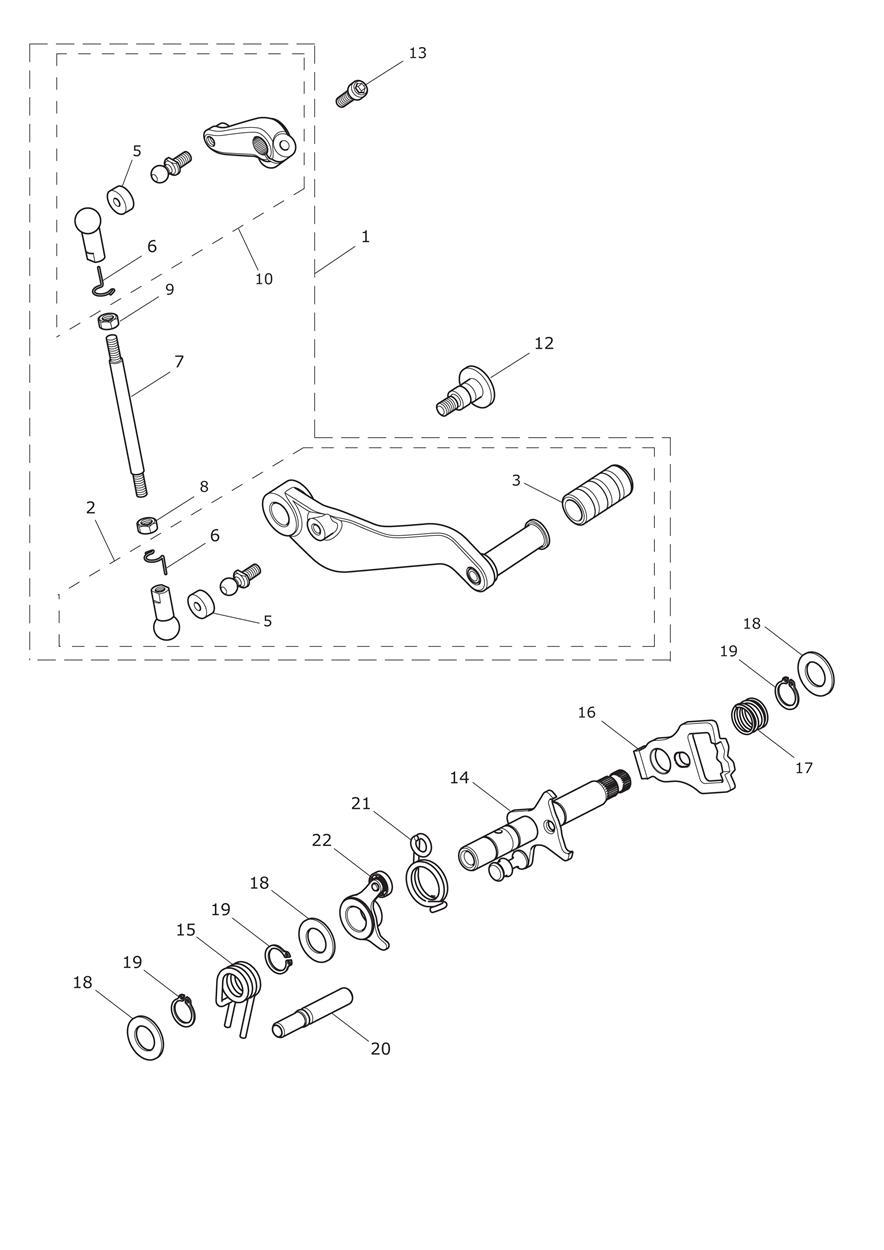

 Gear Change Mechanism exploded diagram
Gear Change Mechanism
20 parts
 Gear Change Mechanism exploded diagram
Gear Change Mechanism
21 parts

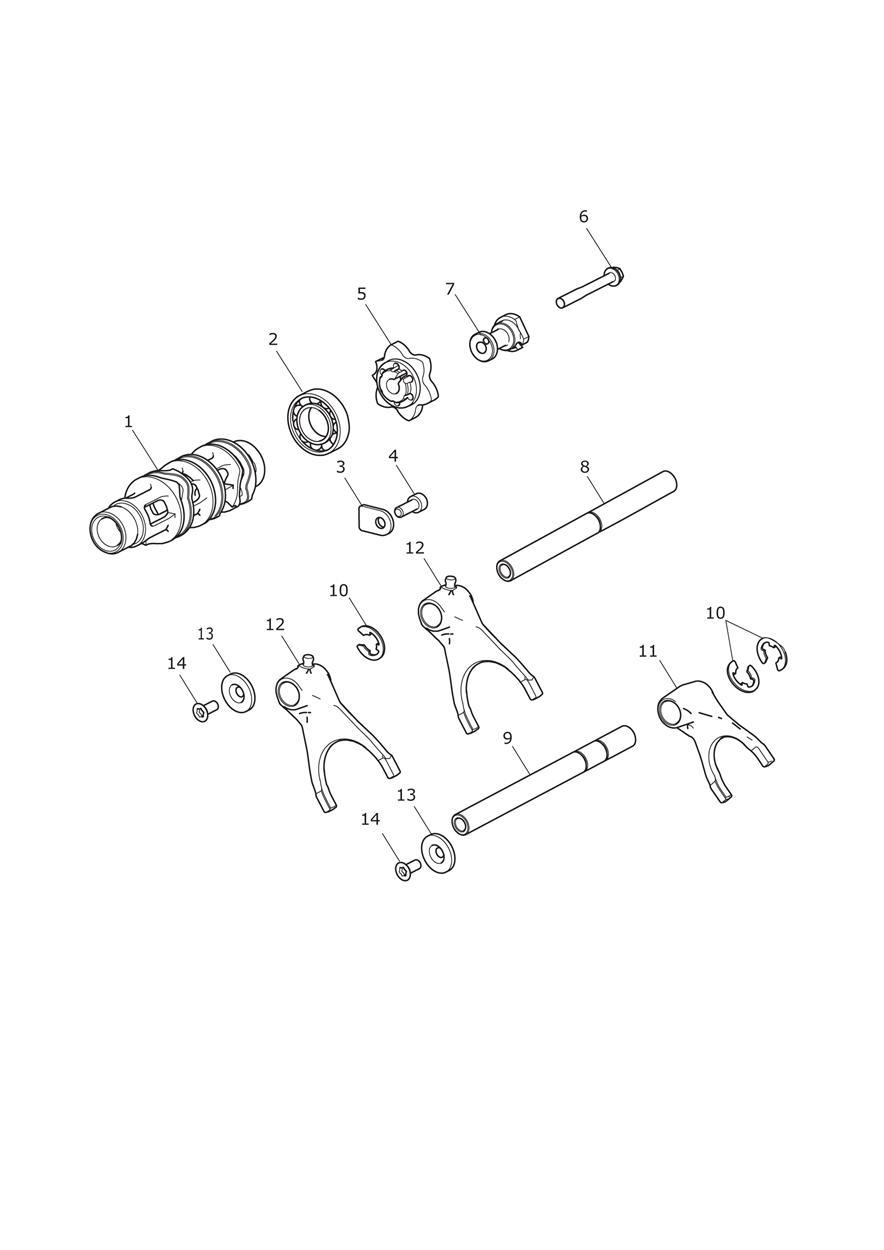

 Gear Selector Drum exploded diagram
Gear Selector Drum
14 parts
 Gear Selector Drum exploded diagram
Gear Selector Drum
17 parts

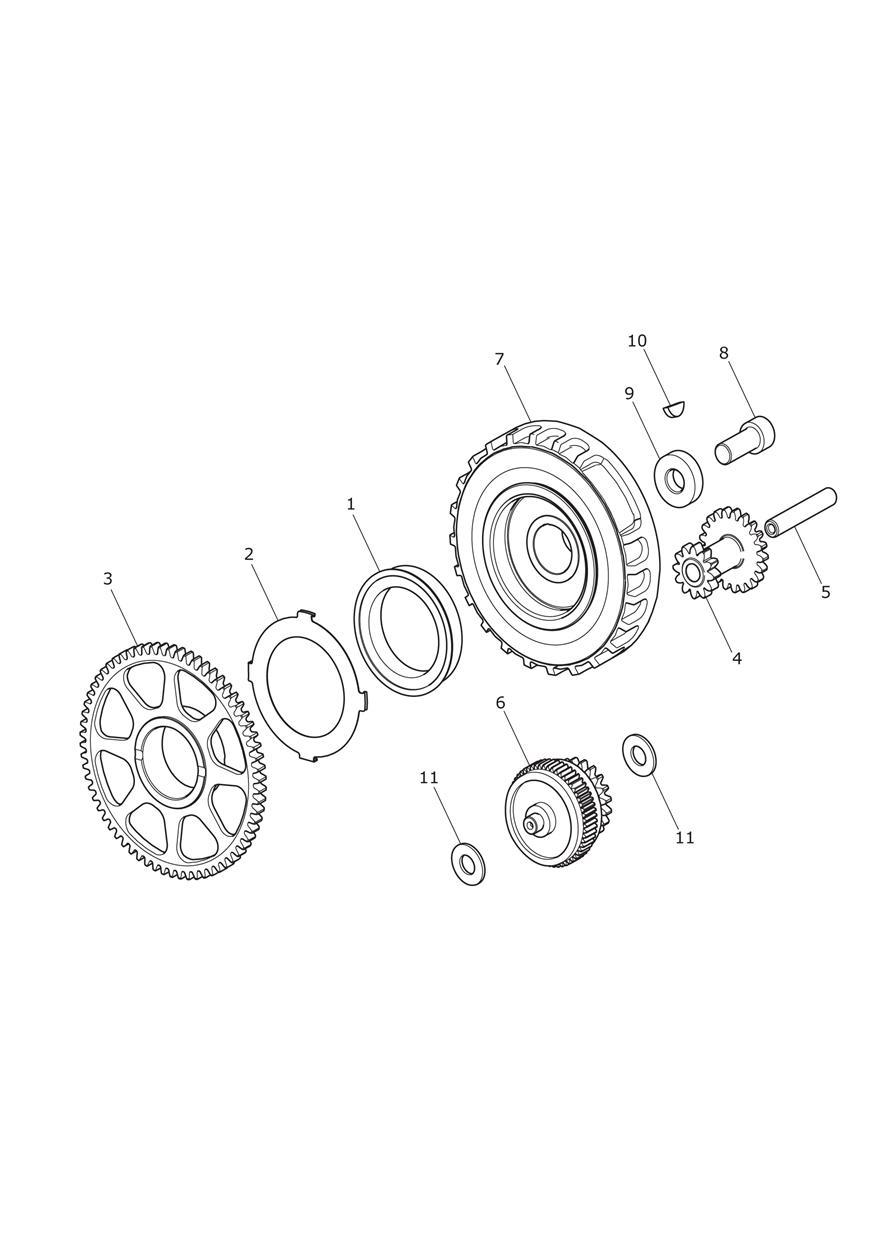

 Starter Drive Gears exploded diagram
Starter Drive Gears
11 parts
 Starter Drive Gears exploded diagram
Starter Drive Gears
11 parts

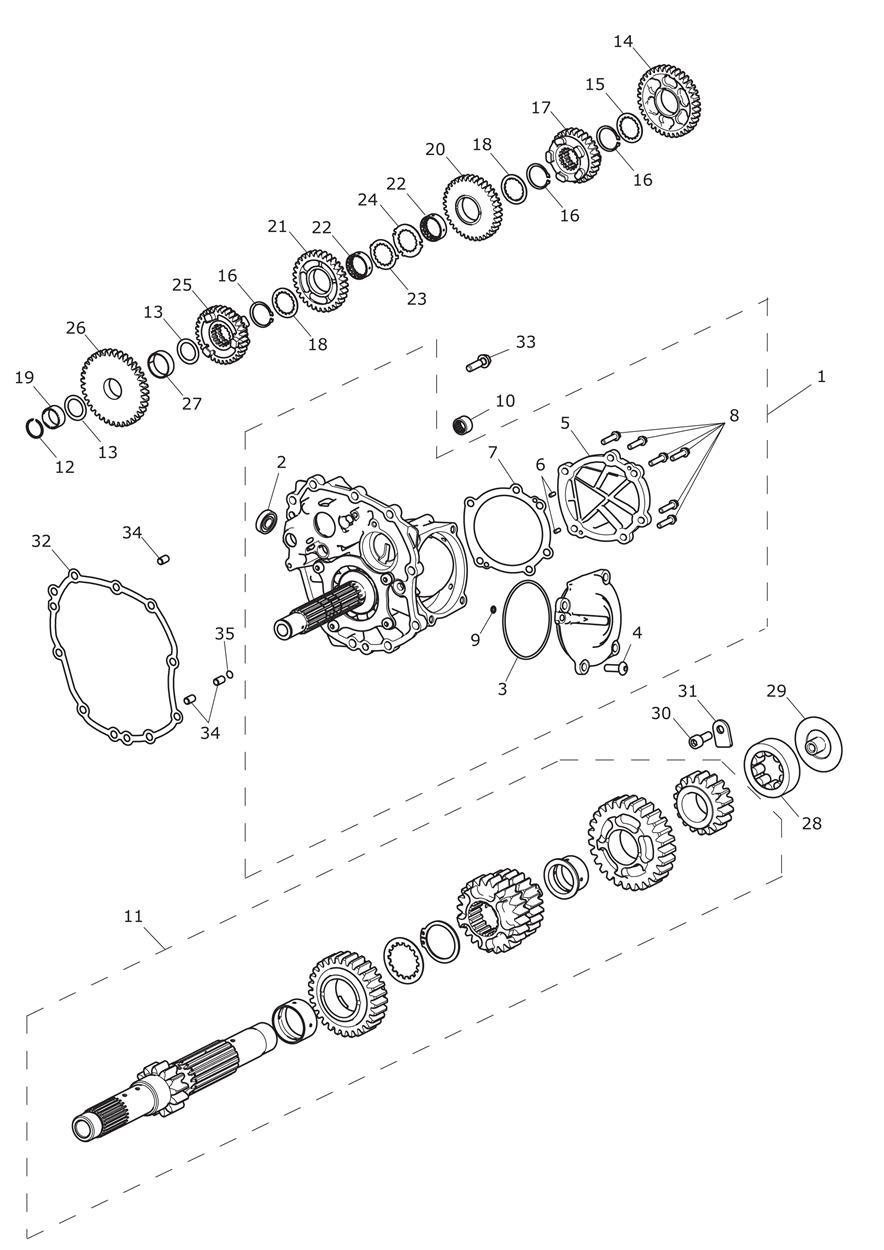

 Transmission exploded diagram
Transmission
36 parts
 Transmission exploded diagram
Transmission
36 parts
