Cylinder Head, Valves, Pistons, Liners, Camshaft & Balancers

Triumph Trophy 1215 · 8 diagrams

8 exploded diagrams for the cylinder head, valves, pistons, liners, camshaft & balancers of the Triumph Trophy 1215, covering the Trophy 1215. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

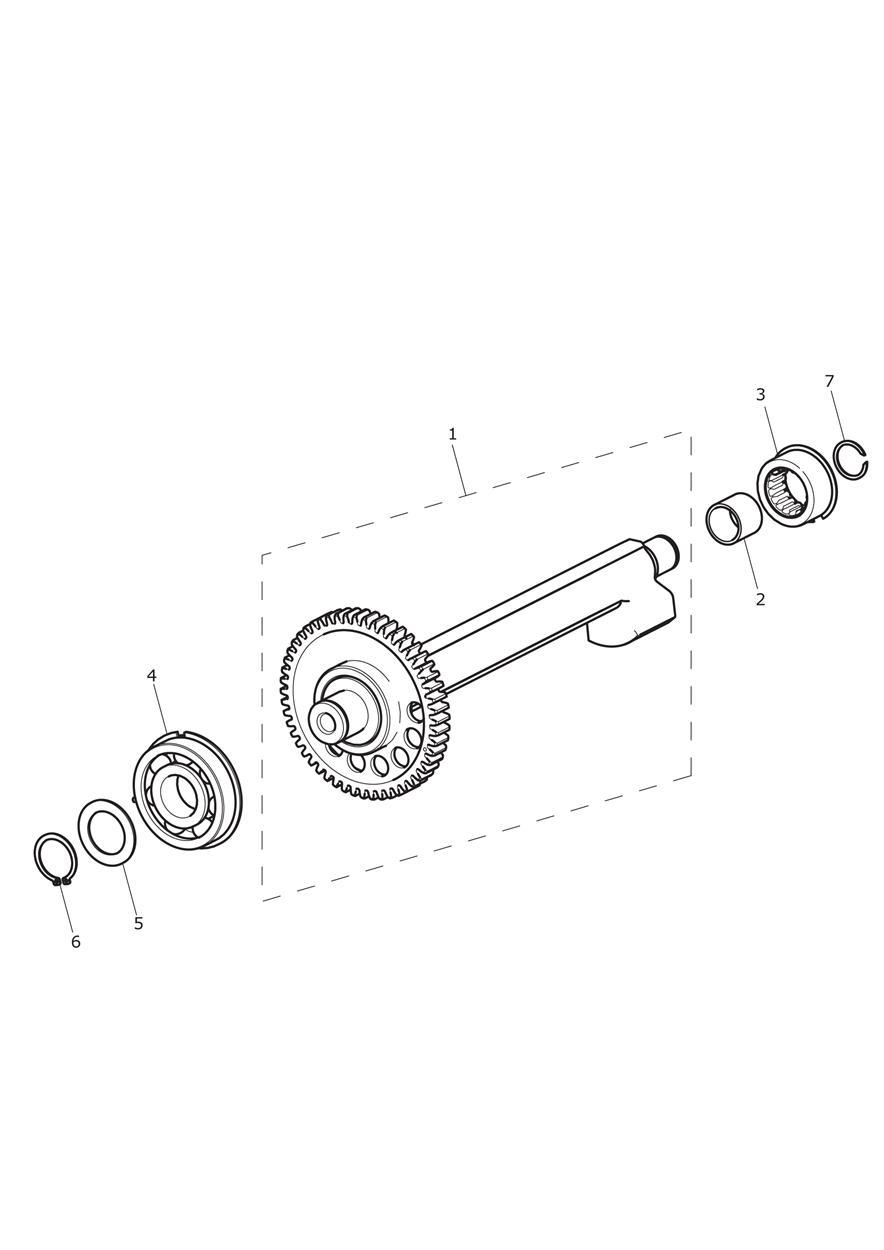

Balancer exploded diagram
Balancer
7 parts
 Balancer exploded diagram
Balancer
7 parts

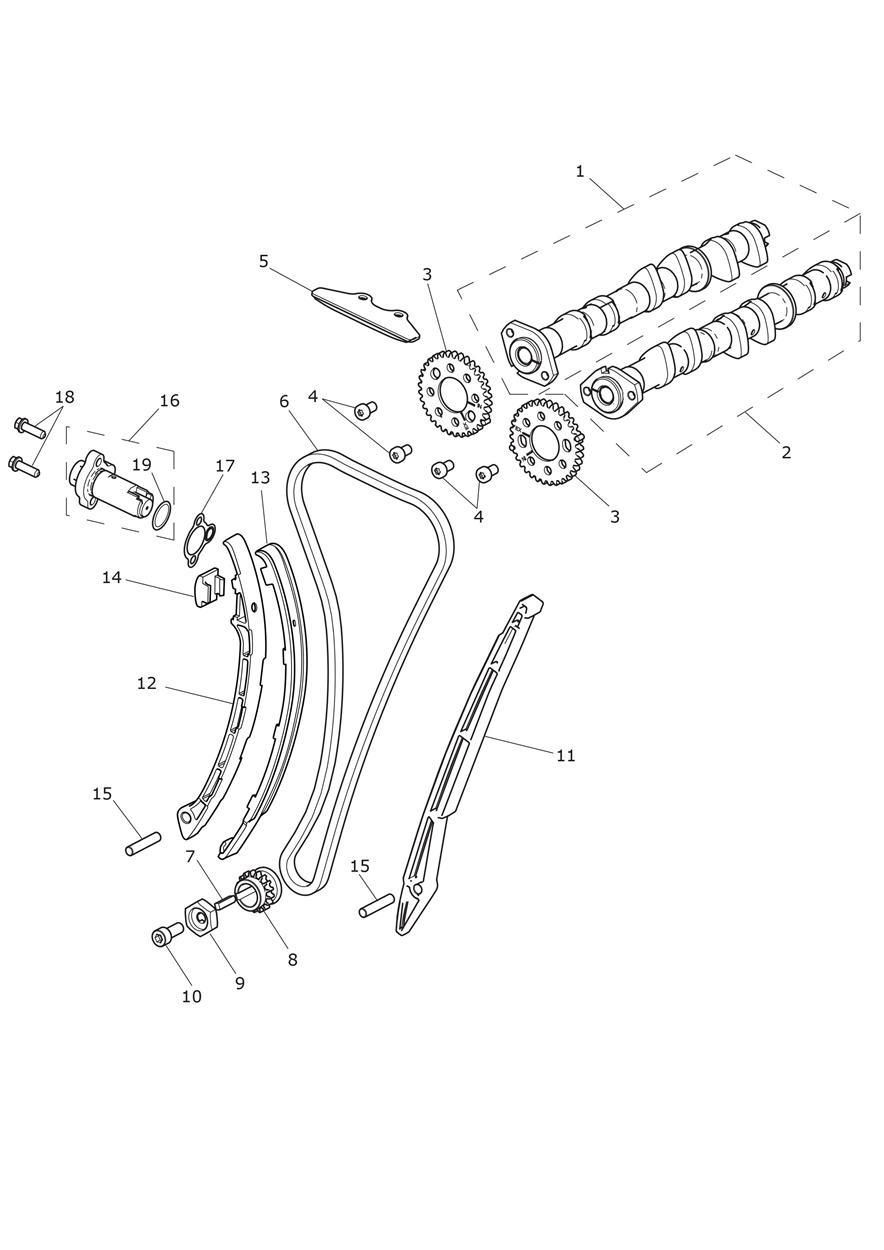

 Camshaft & Camshaft Drive exploded diagram
Camshaft & Camshaft Drive
22 parts
 Camshaft & Camshaft Drive exploded diagram
Camshaft & Camshaft Drive
22 parts

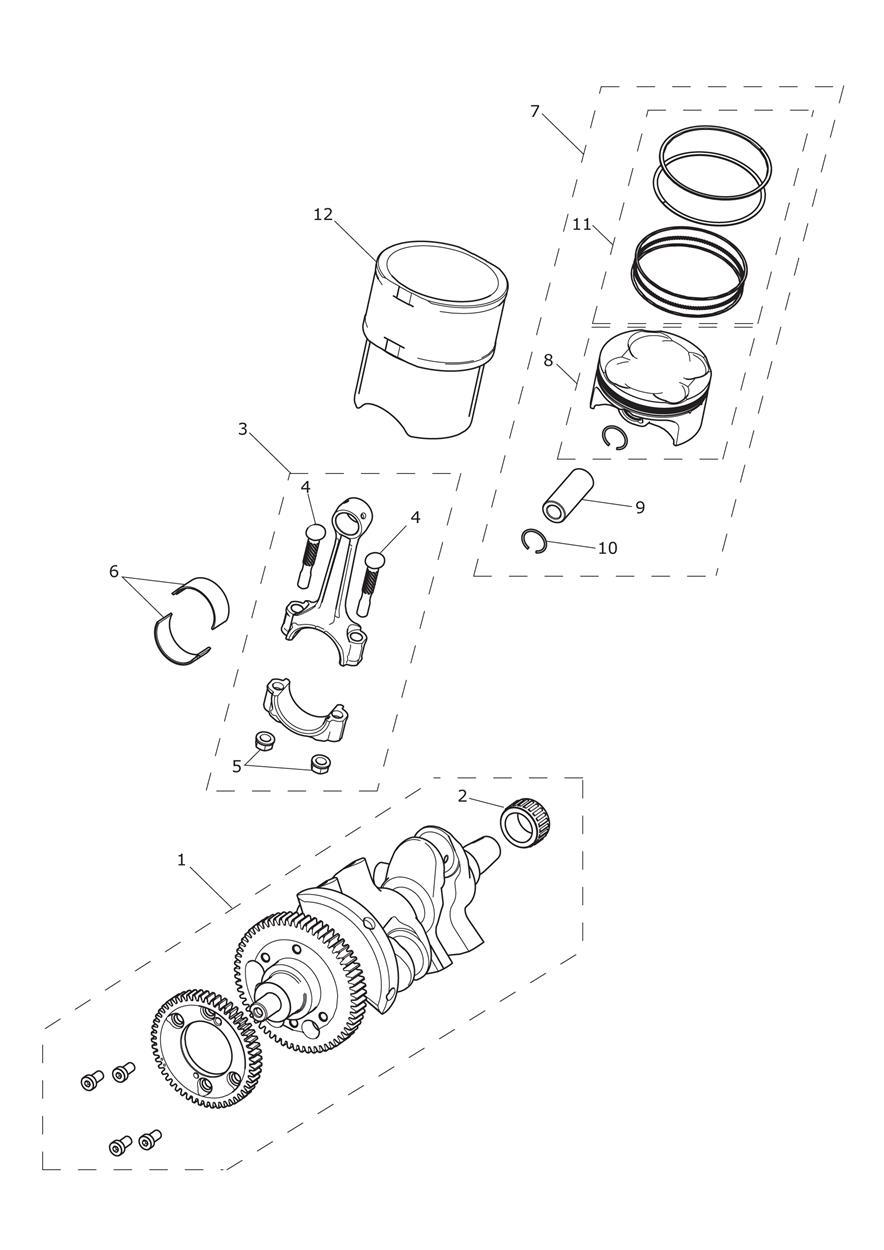

 Crankshaft, Connecting Rods, Pistons & Liners exploded diagram
Crankshaft, Connecting Rods, Pistons & Liners
14 parts
 Crankshaft, Connecting Rods, Pistons & Liners exploded diagram
Crankshaft, Connecting Rods, Pistons & Liners
14 parts

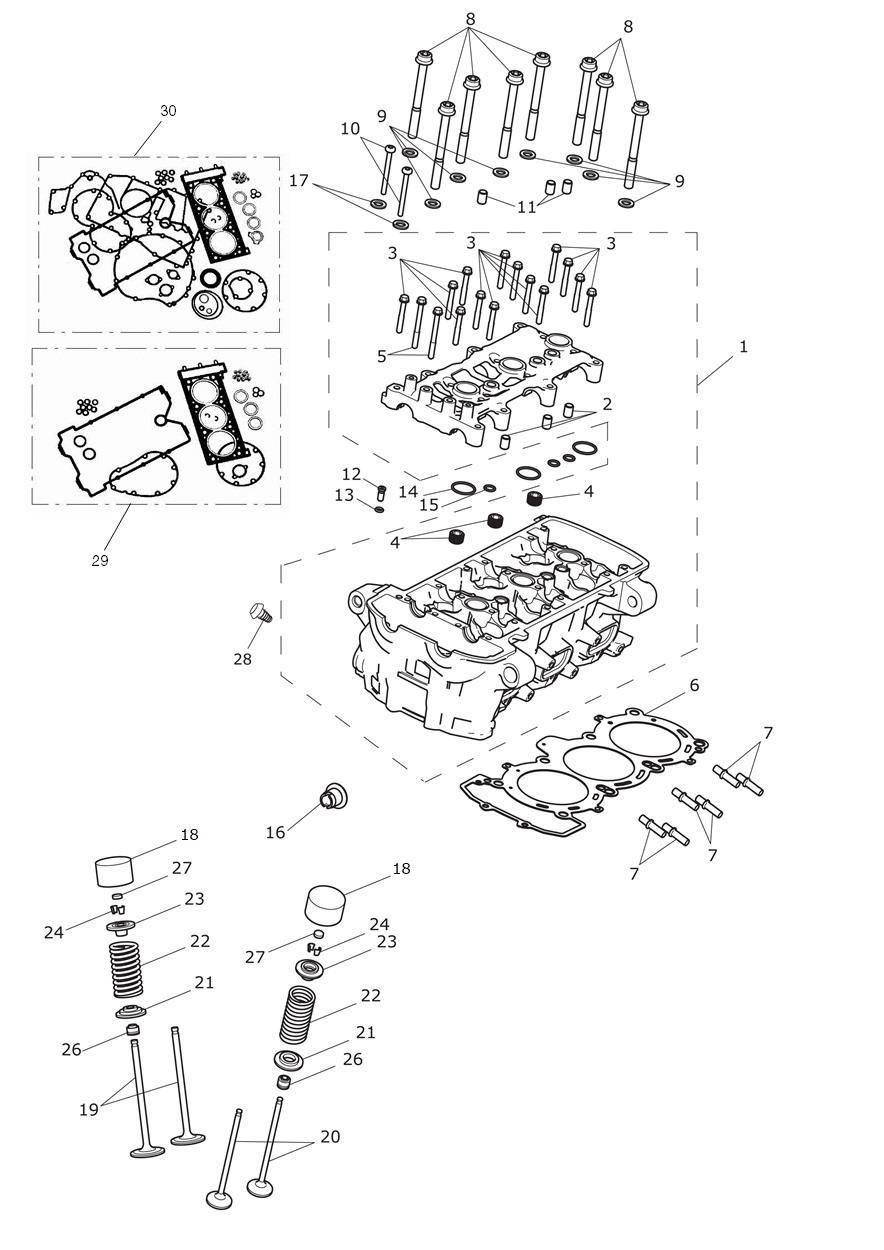

 Cylinder Head & Valves exploded diagram
Cylinder Head & Valves
86 parts
 Cylinder Head & Valves exploded diagram
Cylinder Head & Valves
86 parts
