Rear Swinging Arm & Rear Suspension

Triumph Trophy 1215 · 4 diagrams

4 exploded diagrams for the rear swinging arm & rear suspension of the Triumph Trophy 1215, covering the Trophy 1215. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

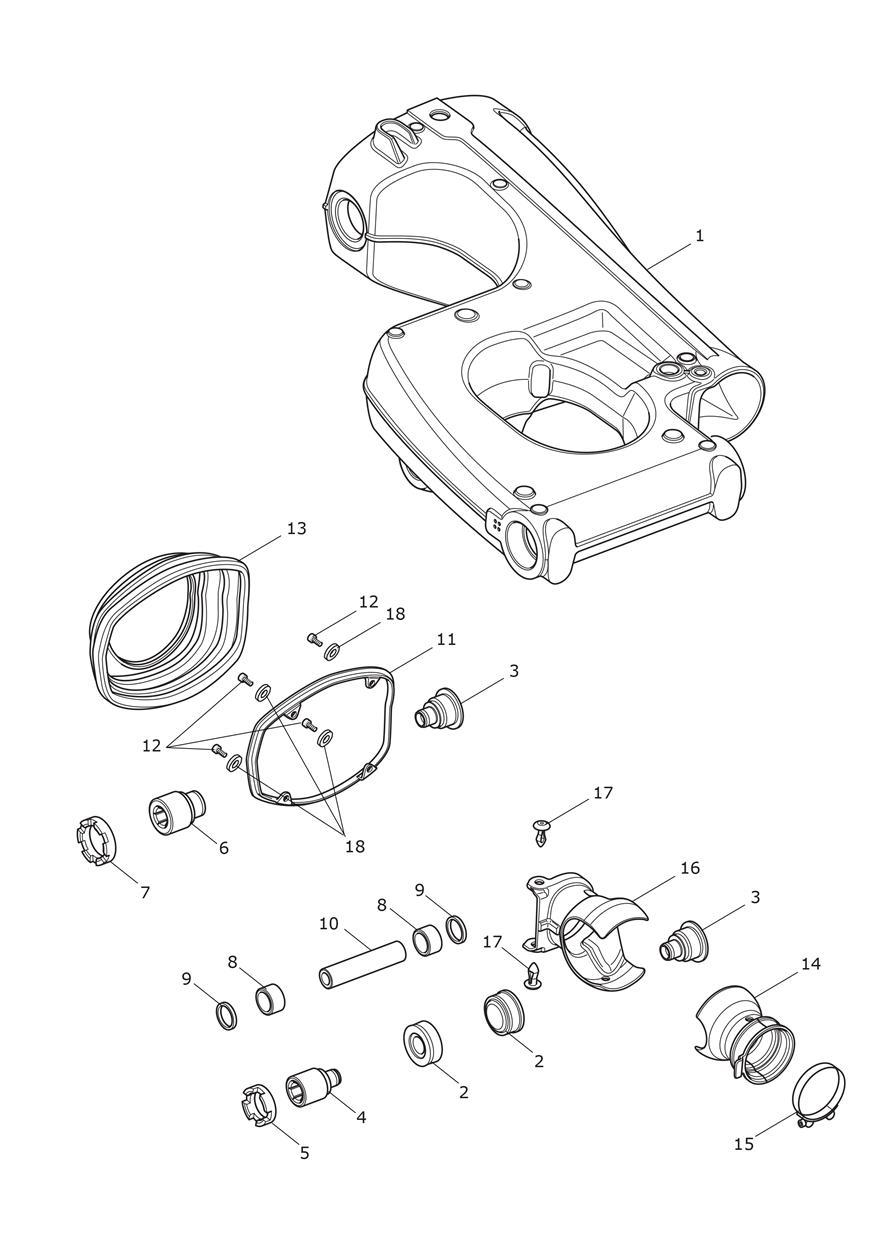

Swingarm Assembly exploded diagram
Swingarm Assembly
18 parts
 Swingarm Assembly exploded diagram
Swingarm Assembly
18 parts

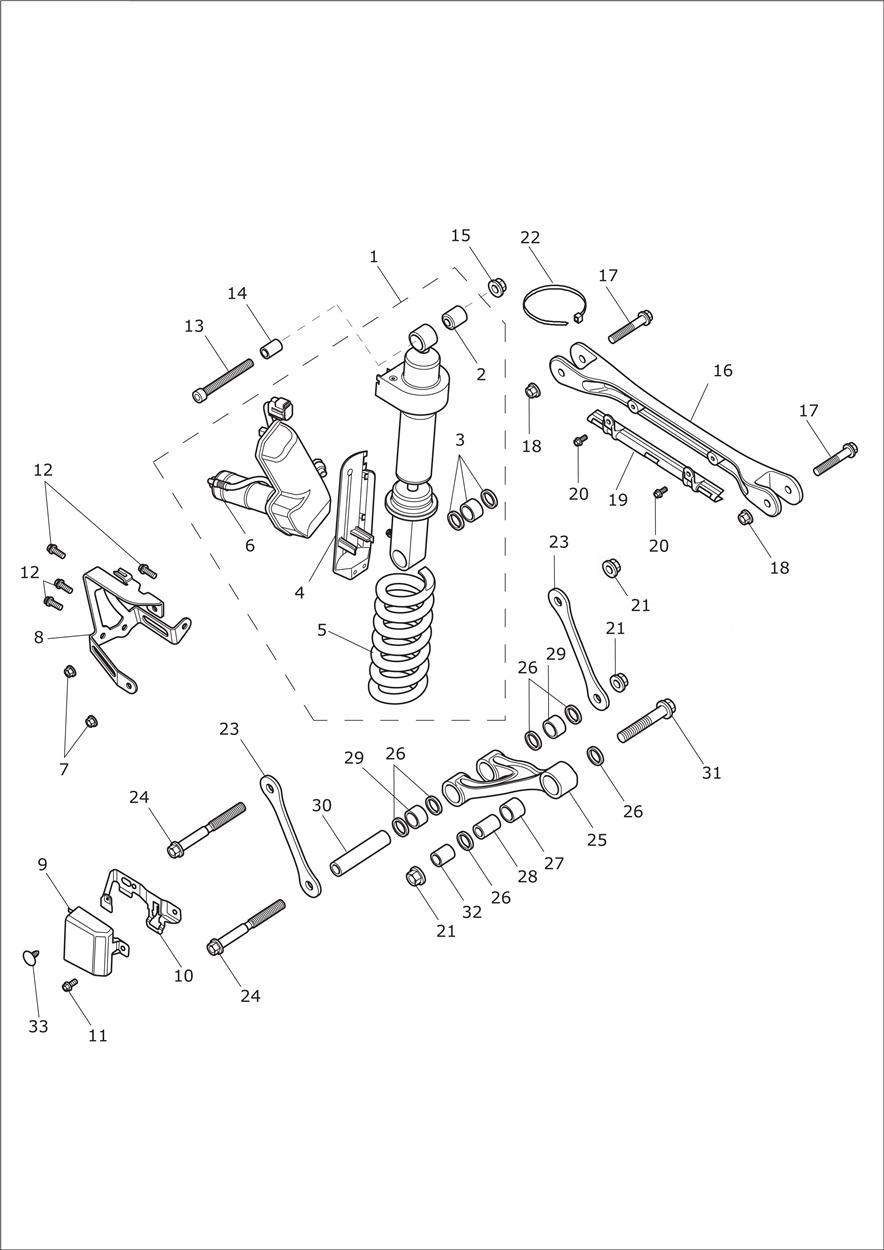

 Rear Suspension Unit & Linkage exploded diagram
Rear Suspension Unit & Linkage
32 parts

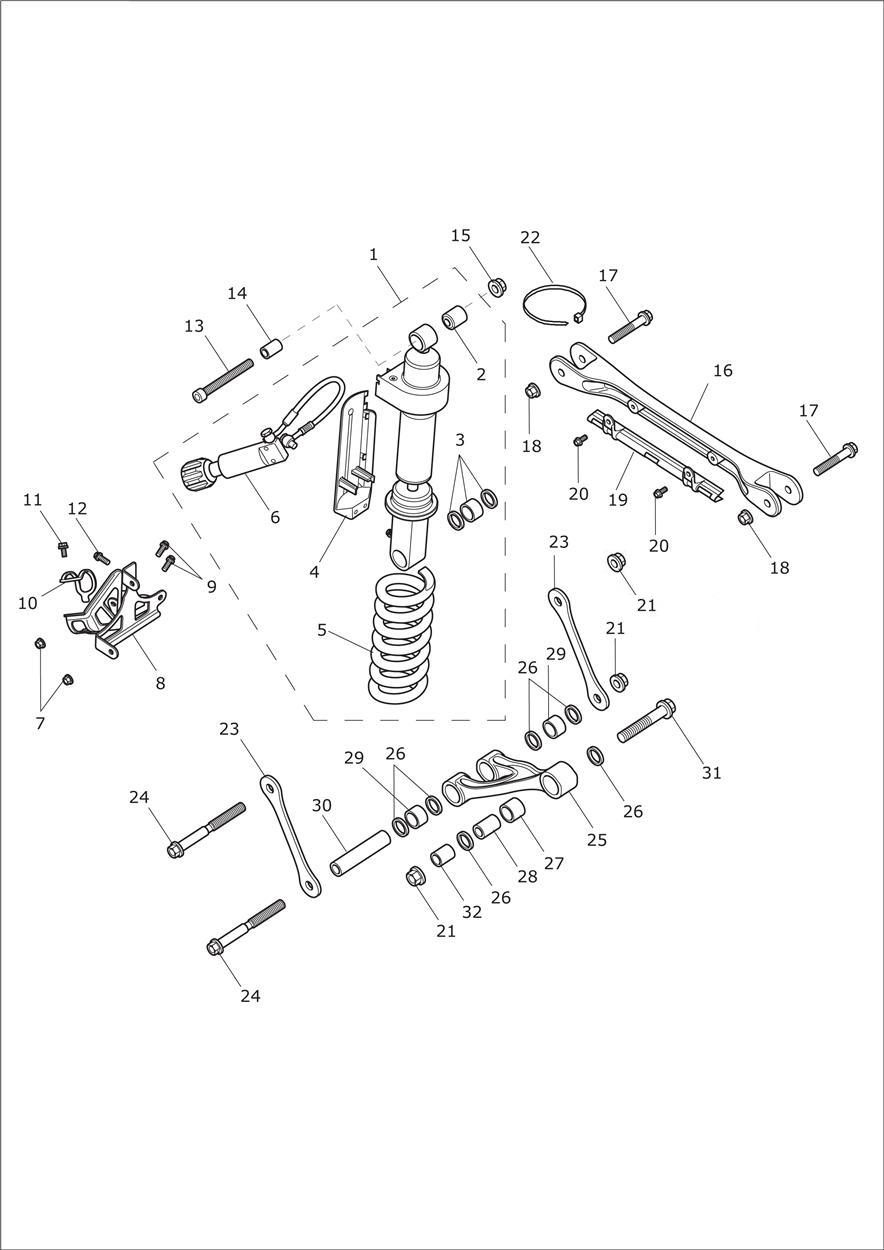

 Rear Suspension Unit & Linkage exploded diagram
Rear Suspension Unit & Linkage
33 parts
