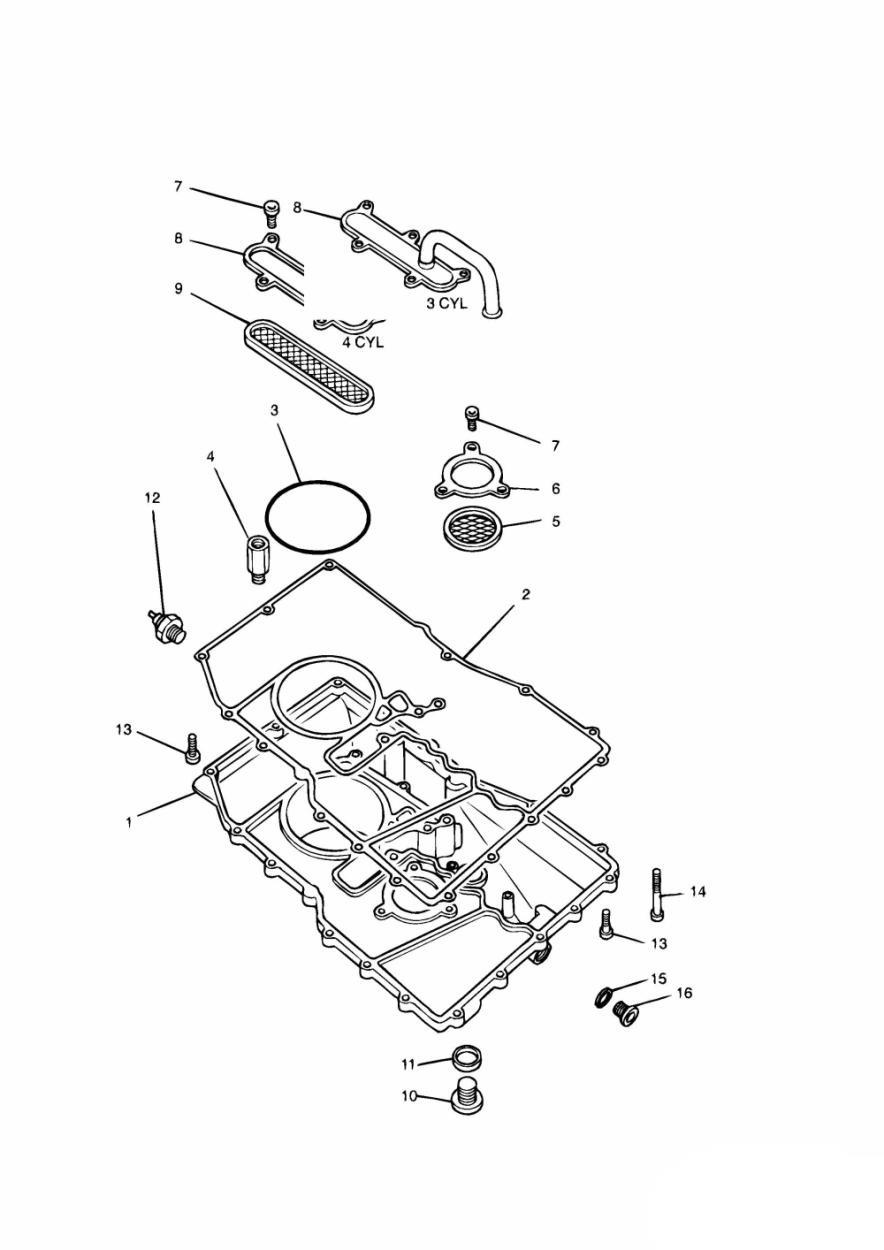

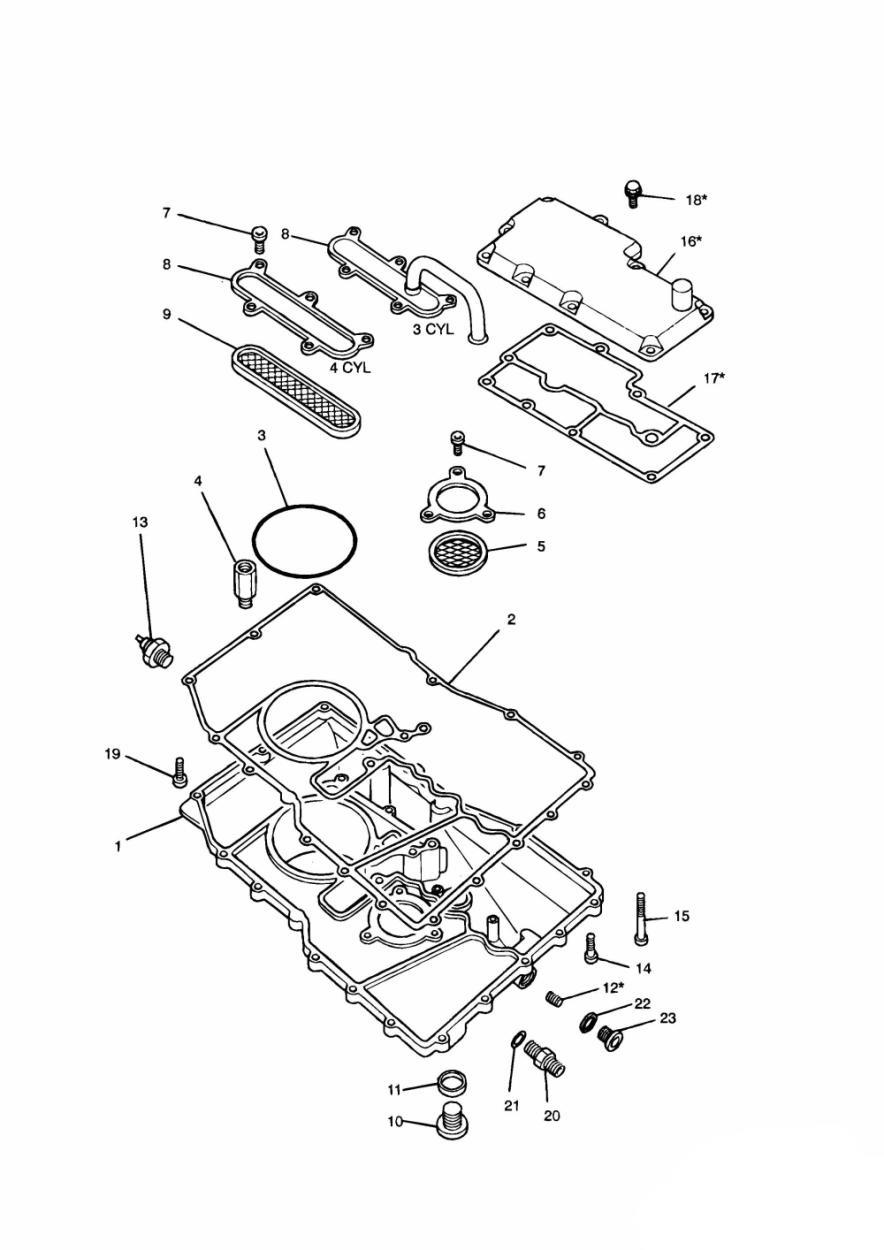

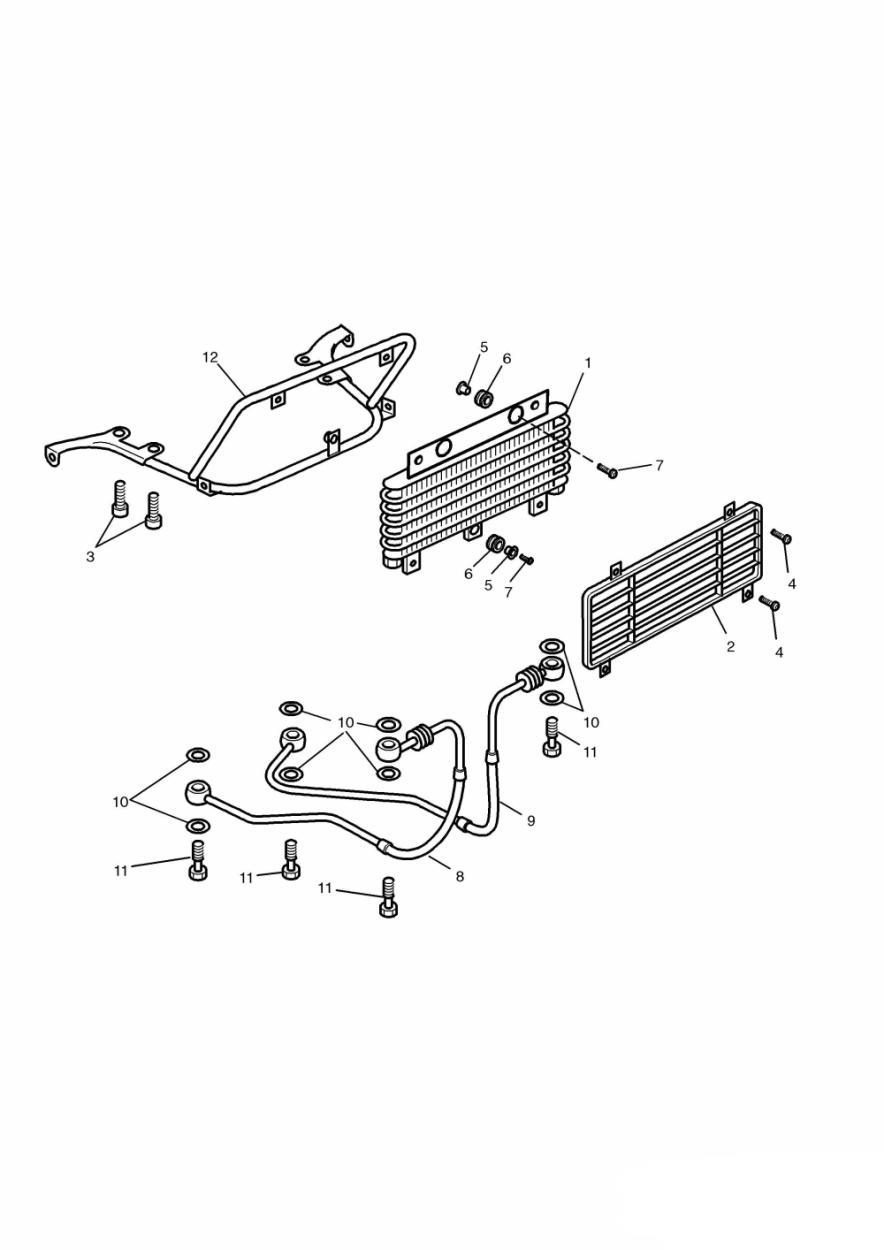

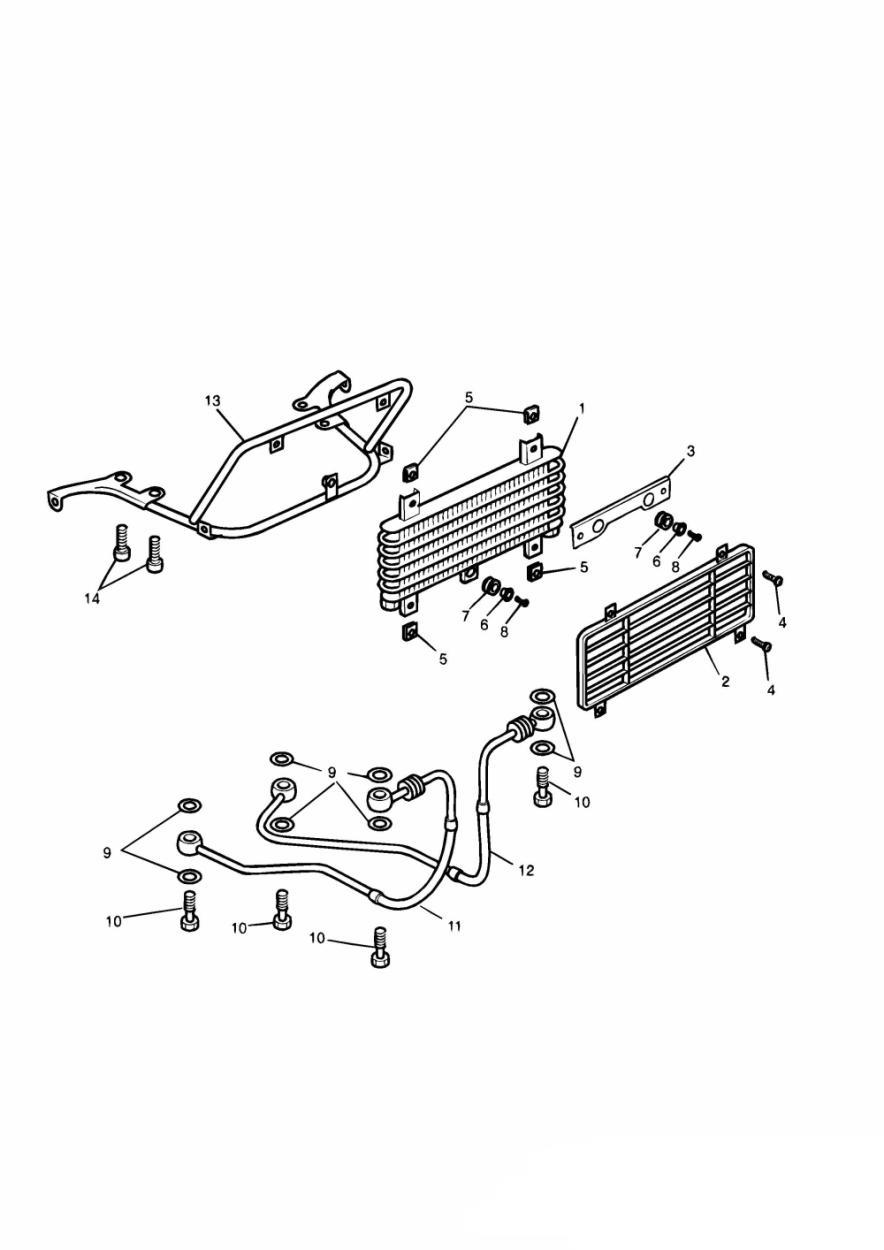

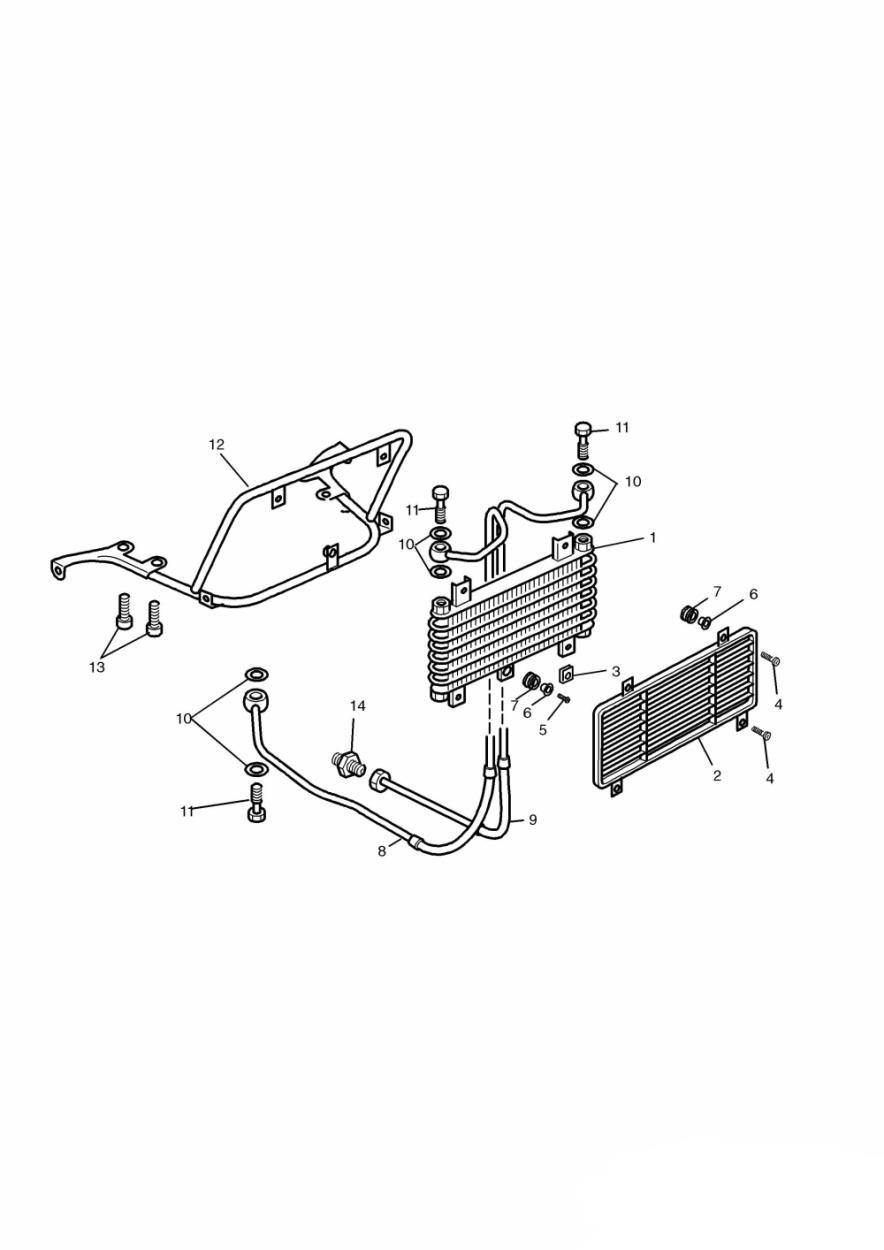

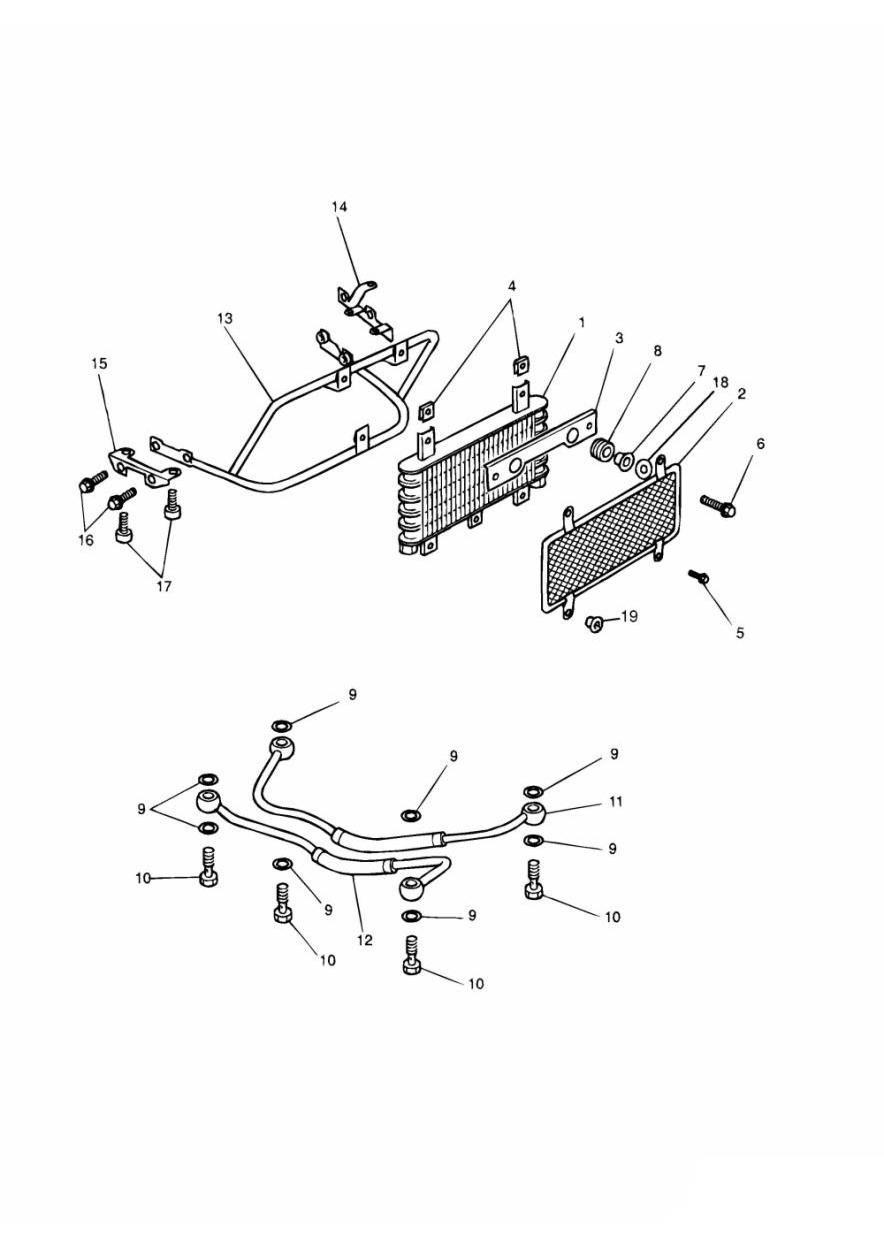

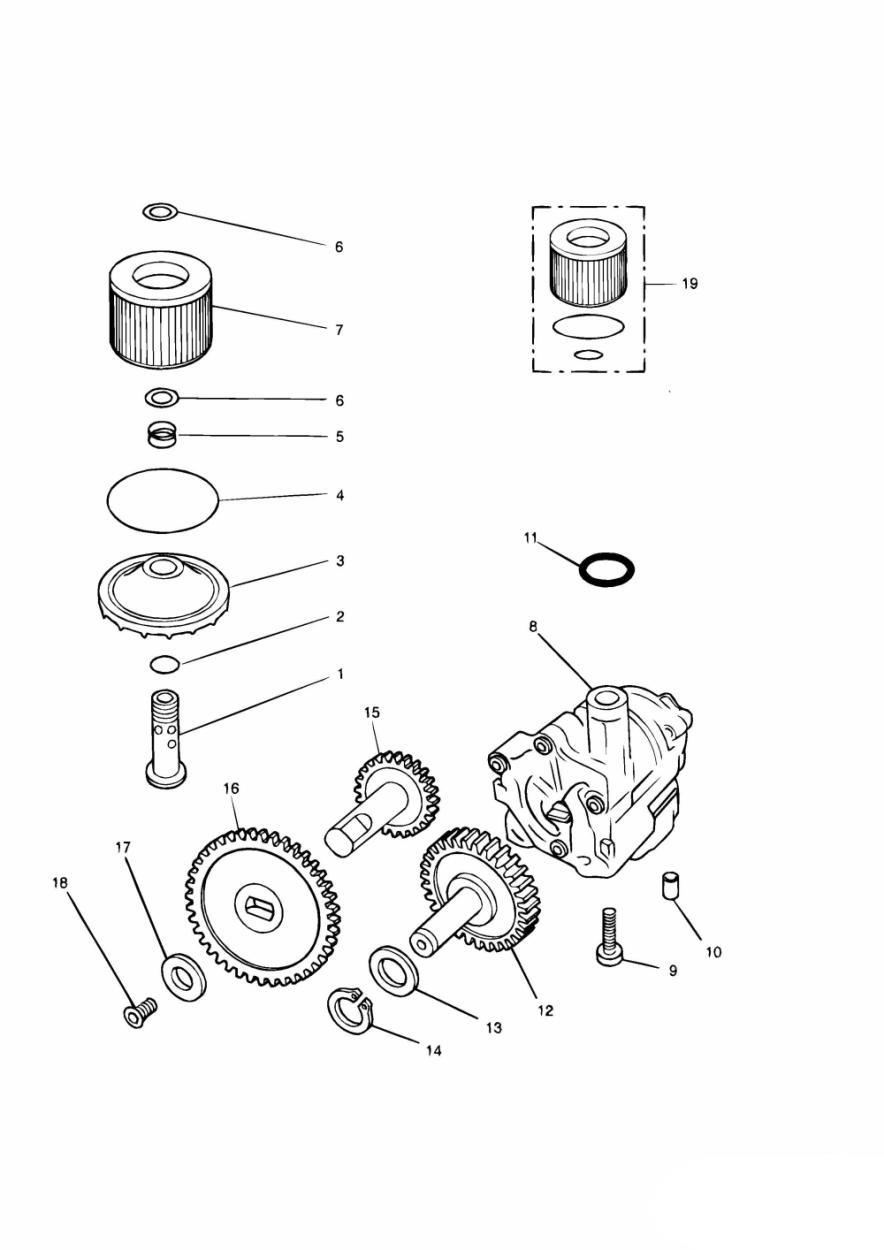

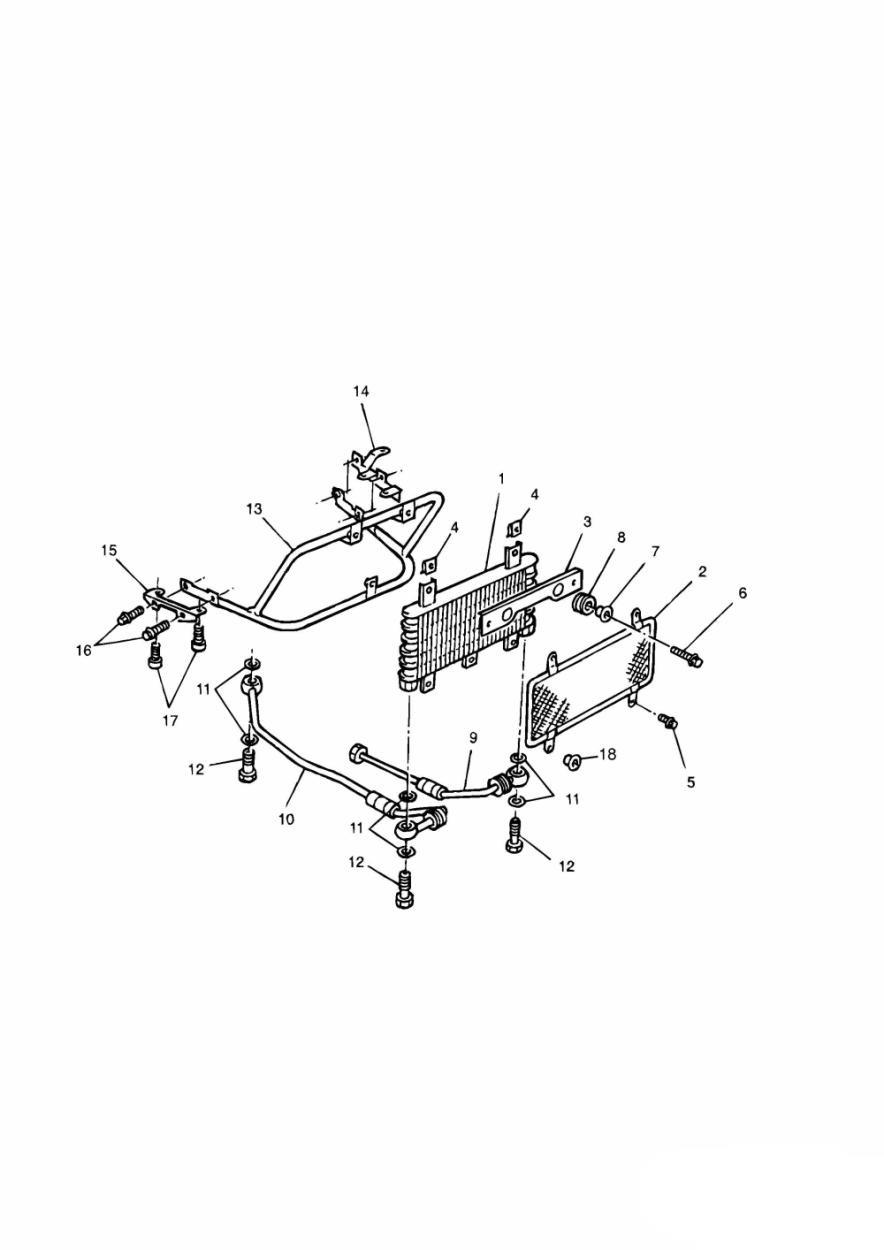

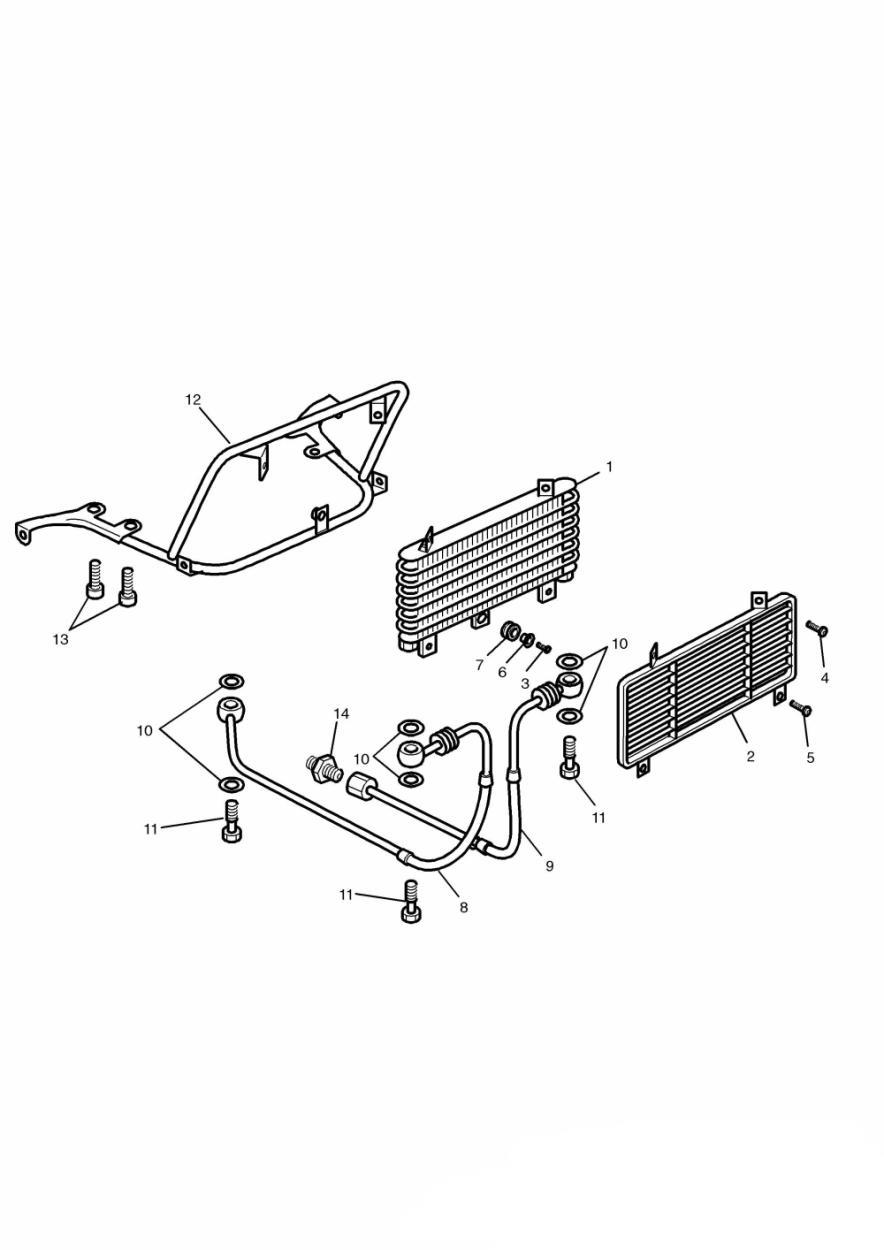

Crankcase, Engine Covers, Lubrication System
Triumph Trophy · 34 diagrams
34 exploded diagrams for the crankcase, engine covers, lubrication system of the Triumph Trophy, covering the Trophy. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
CAM COVERS
Cam Cover 4 Cylinder
7 parts

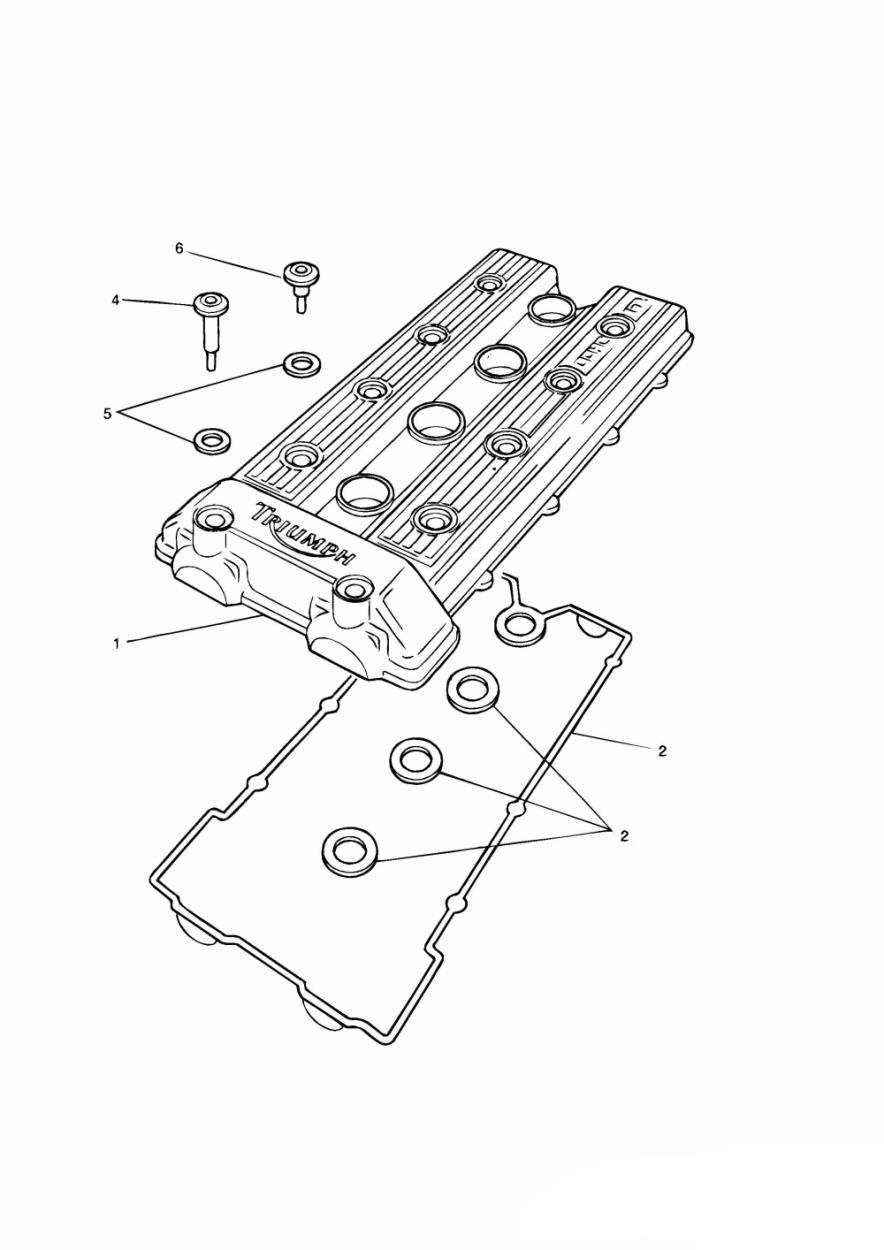

Cam Cover 4 Cylinder Silver
6 parts

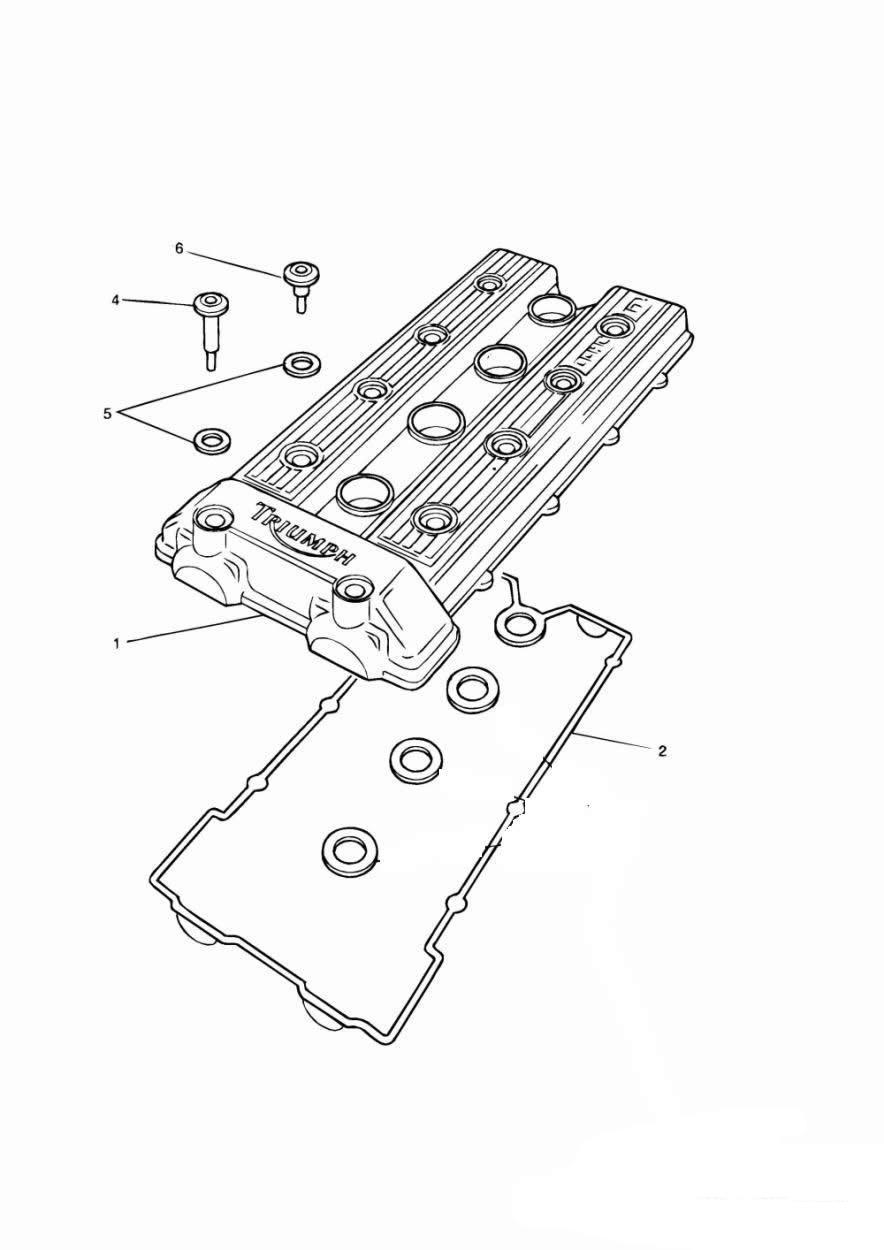

Cam Cover 3 Cylinder
7 parts
Cam Cover 4 Cylinder Grey
6 parts

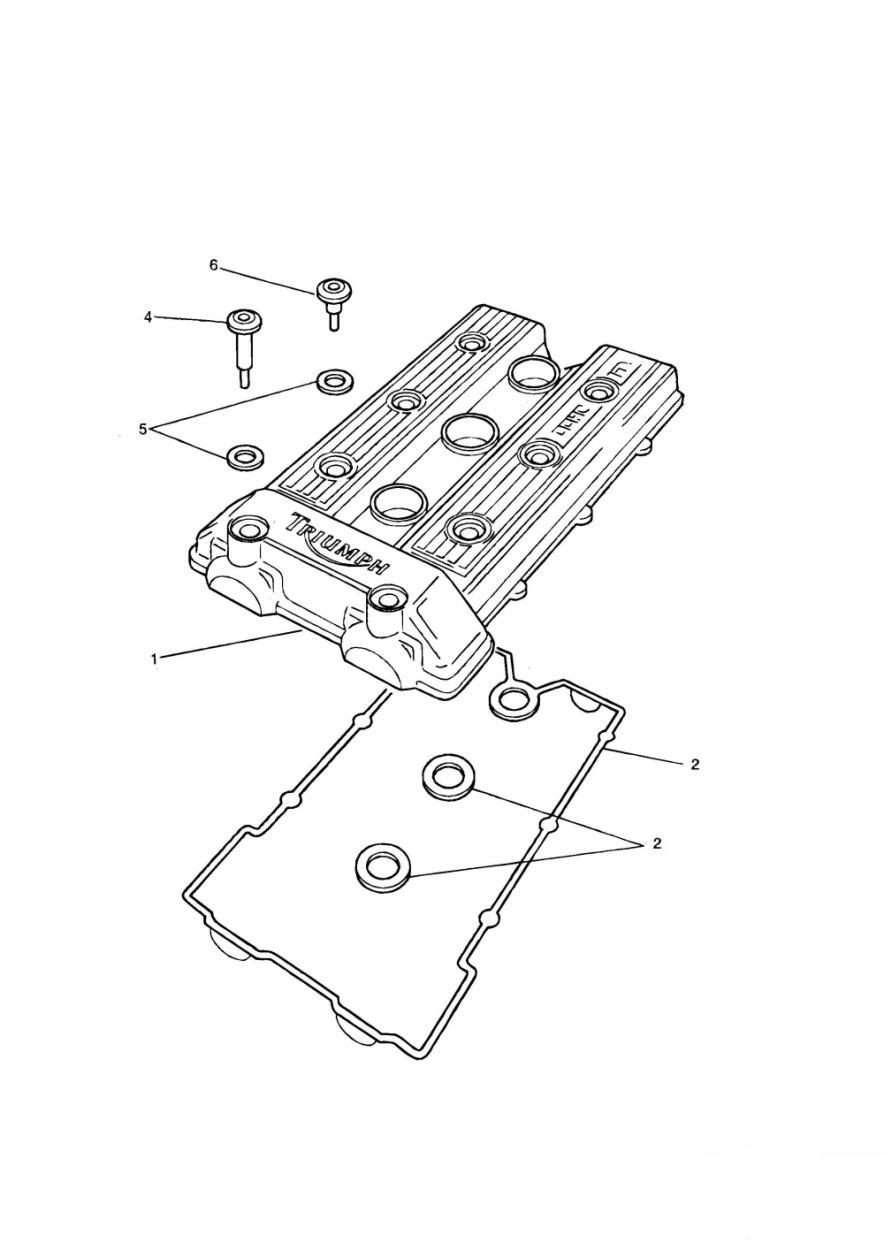

Cam Cover 3 Cylinder Silver
6 parts
Cam Cover 3 Cylinder Grey
6 parts

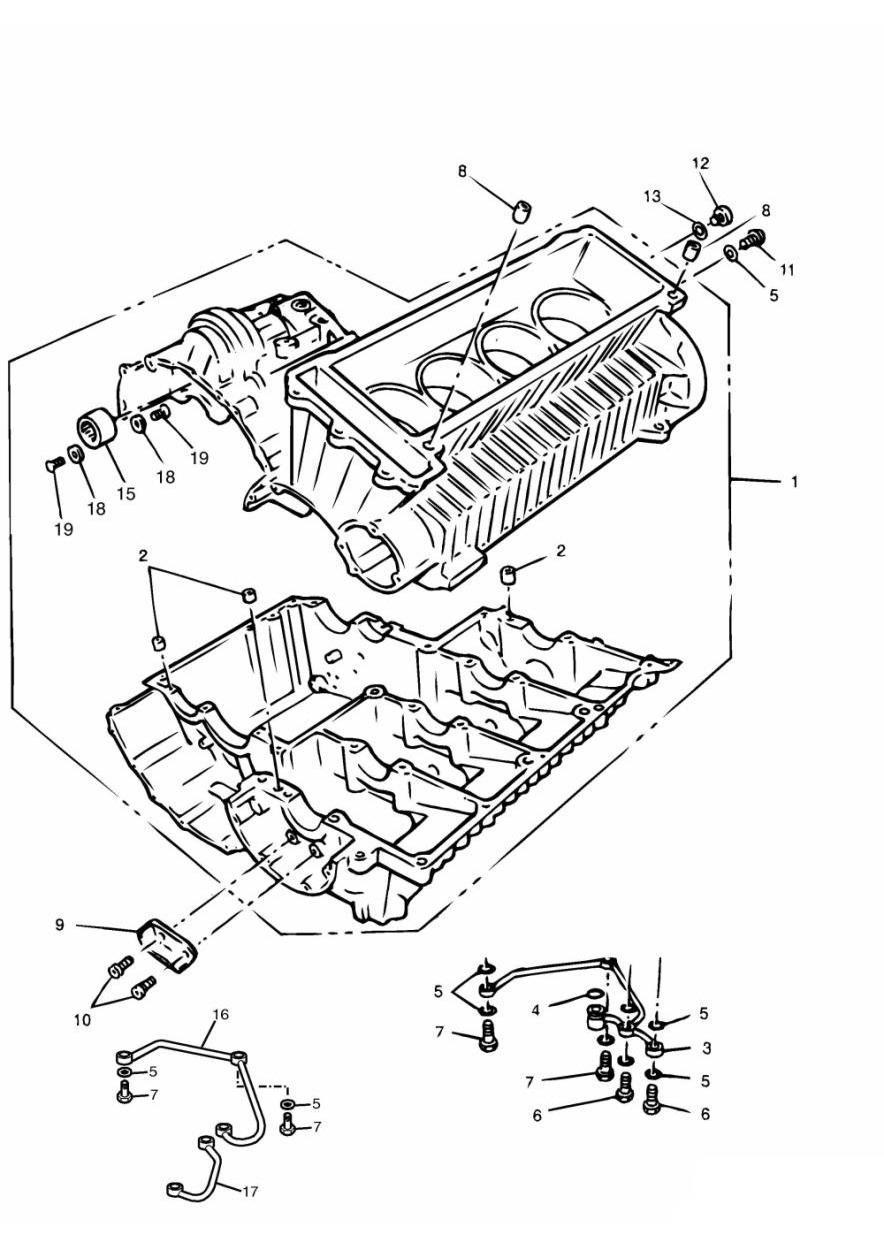

Crankcase & Fittings

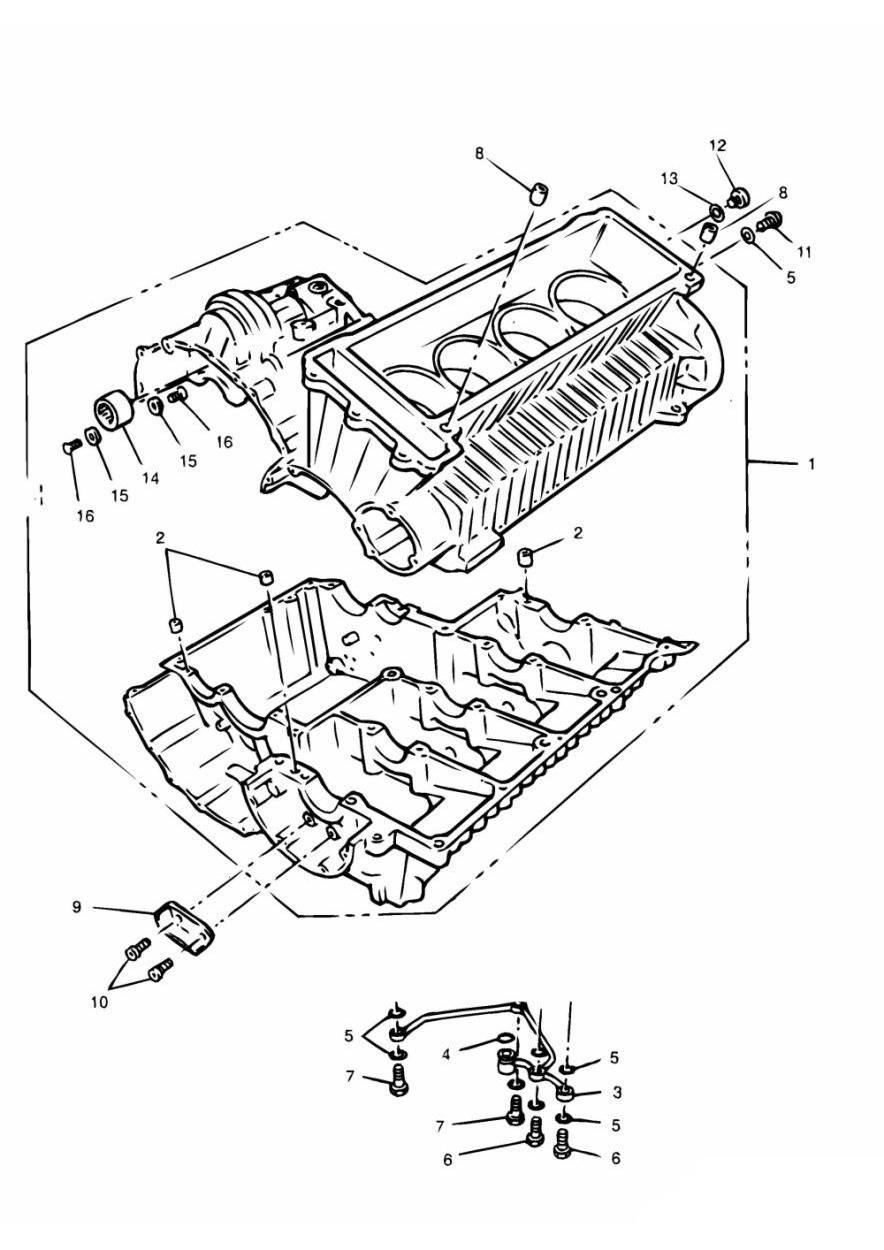

Crankcase & Fittings - 4 Cyl. Grey Engines
16 parts

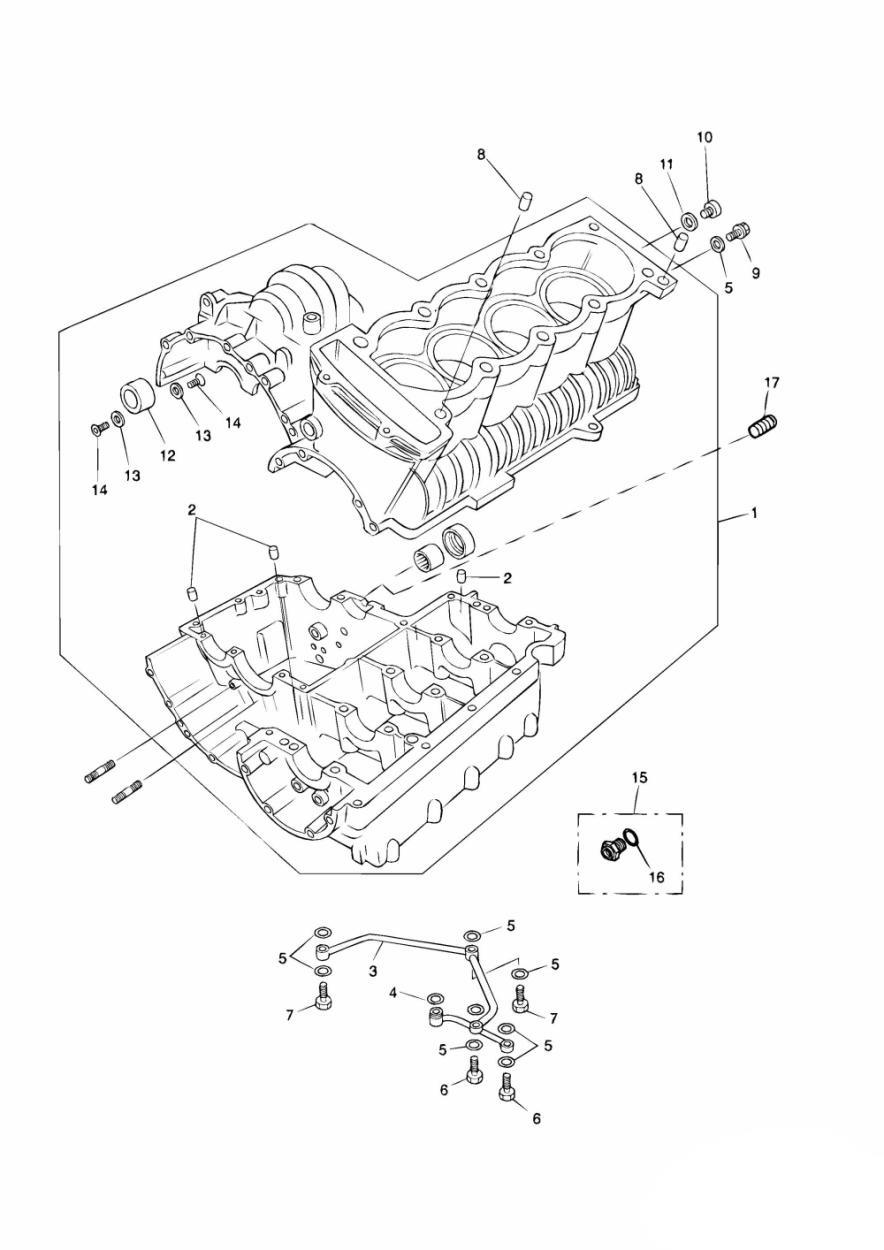

Crankcase & Fittings - 4 Cyl. Black Engines
17 parts

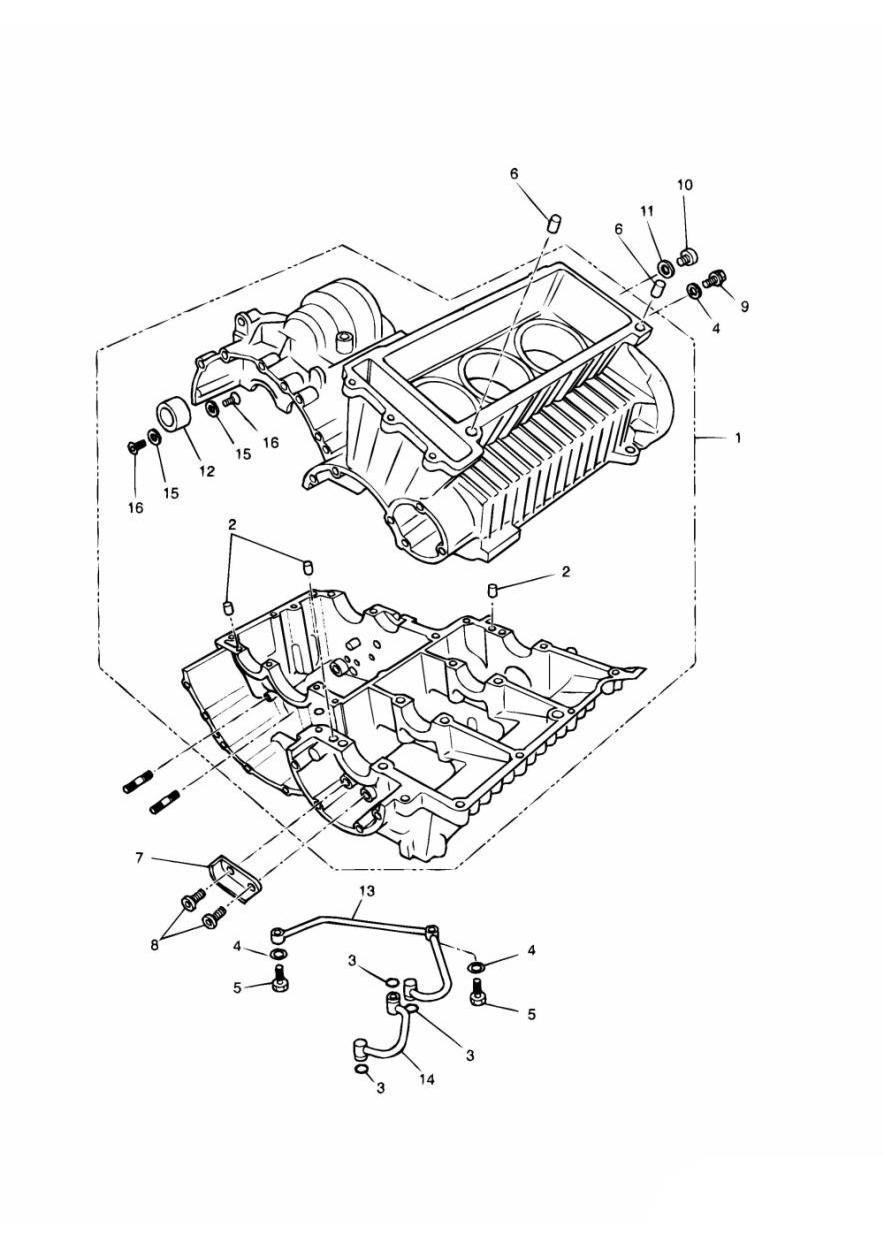

Crankcase & Fittings - 3 Cylinder
18 parts

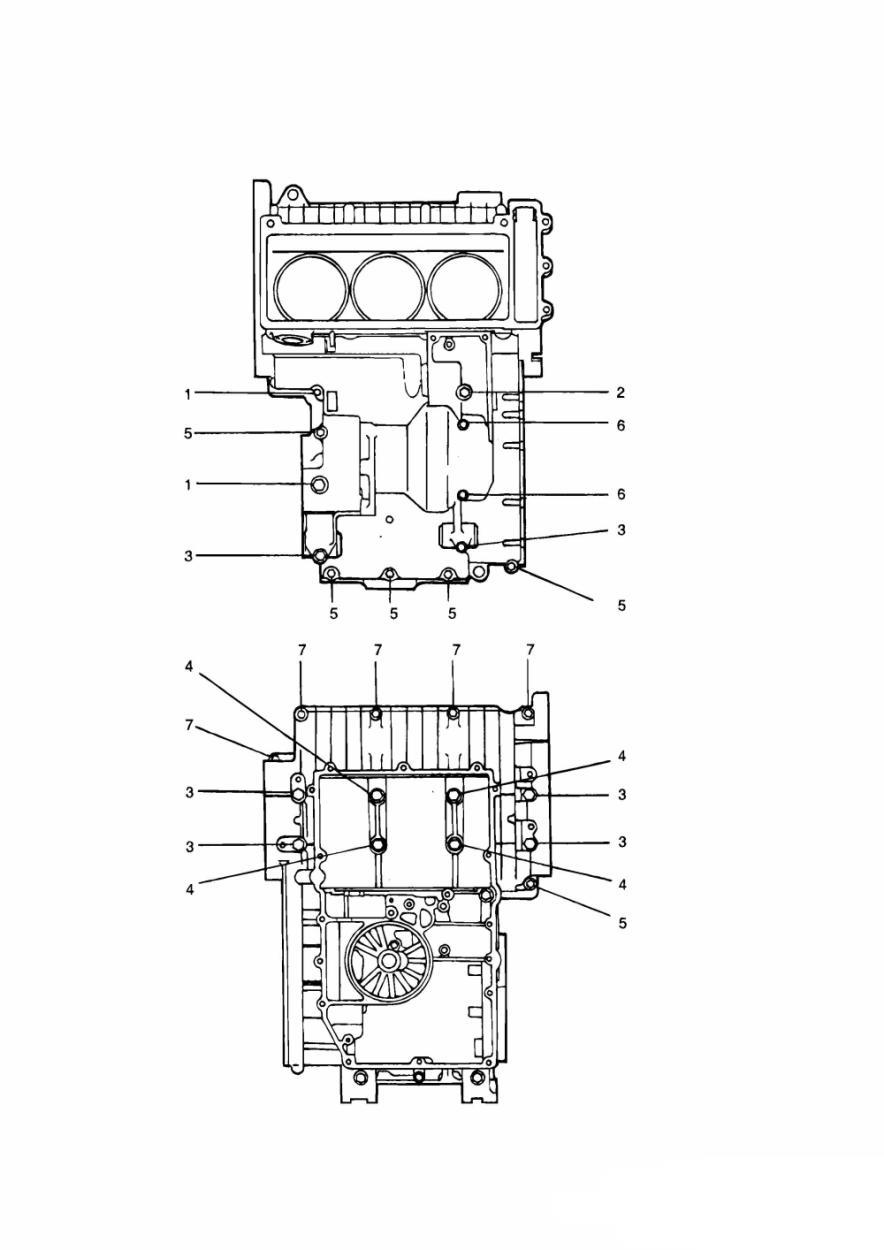

Crankcase Fixings

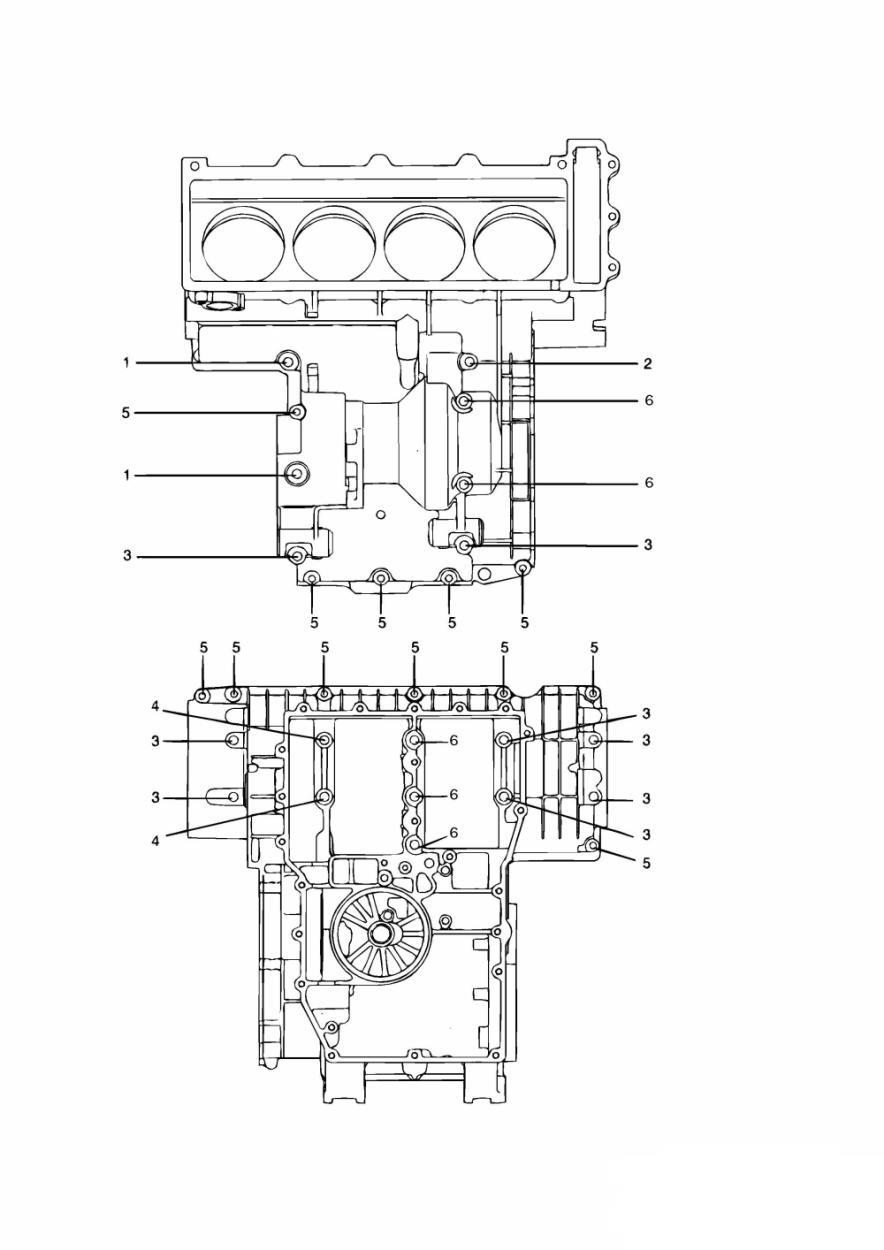

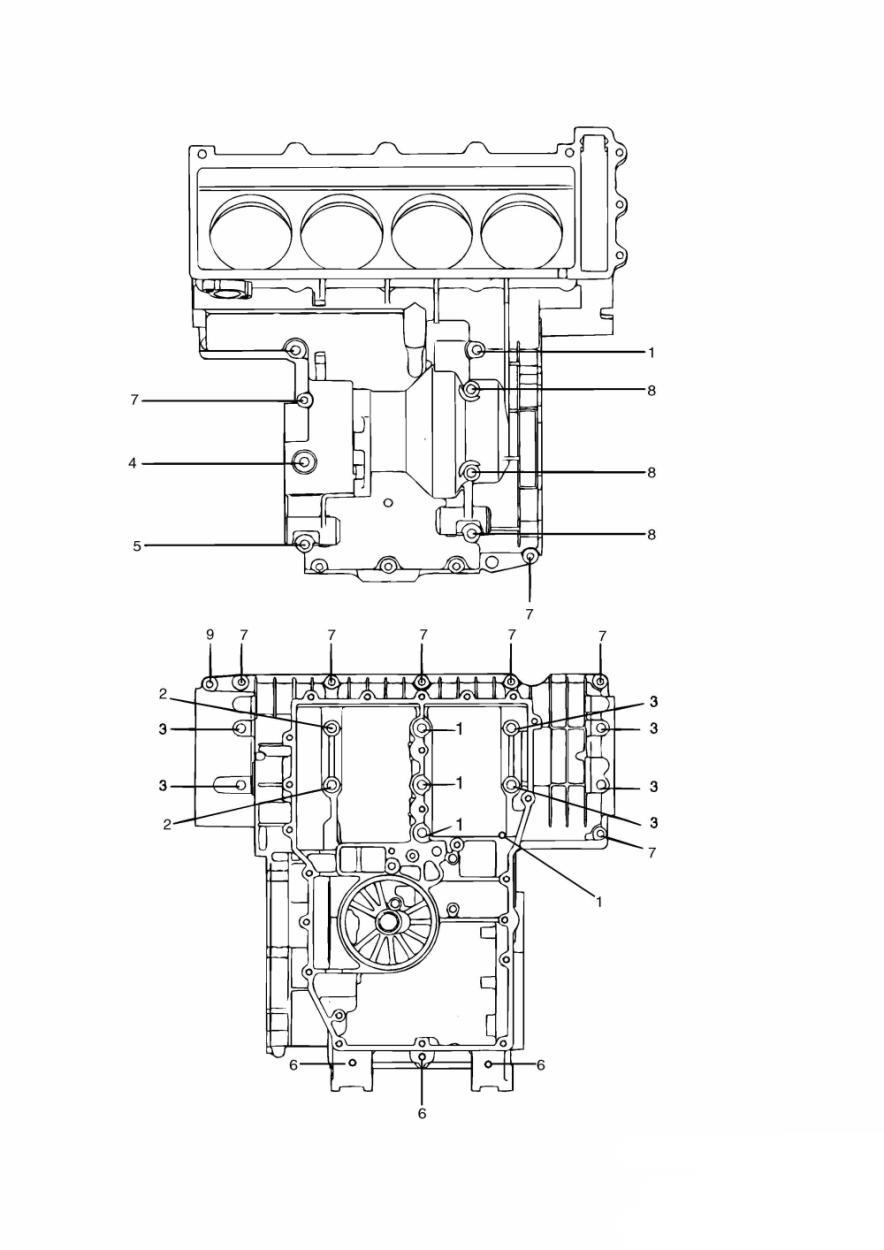

Crankcase Fixings 4 Cylinder
9 parts

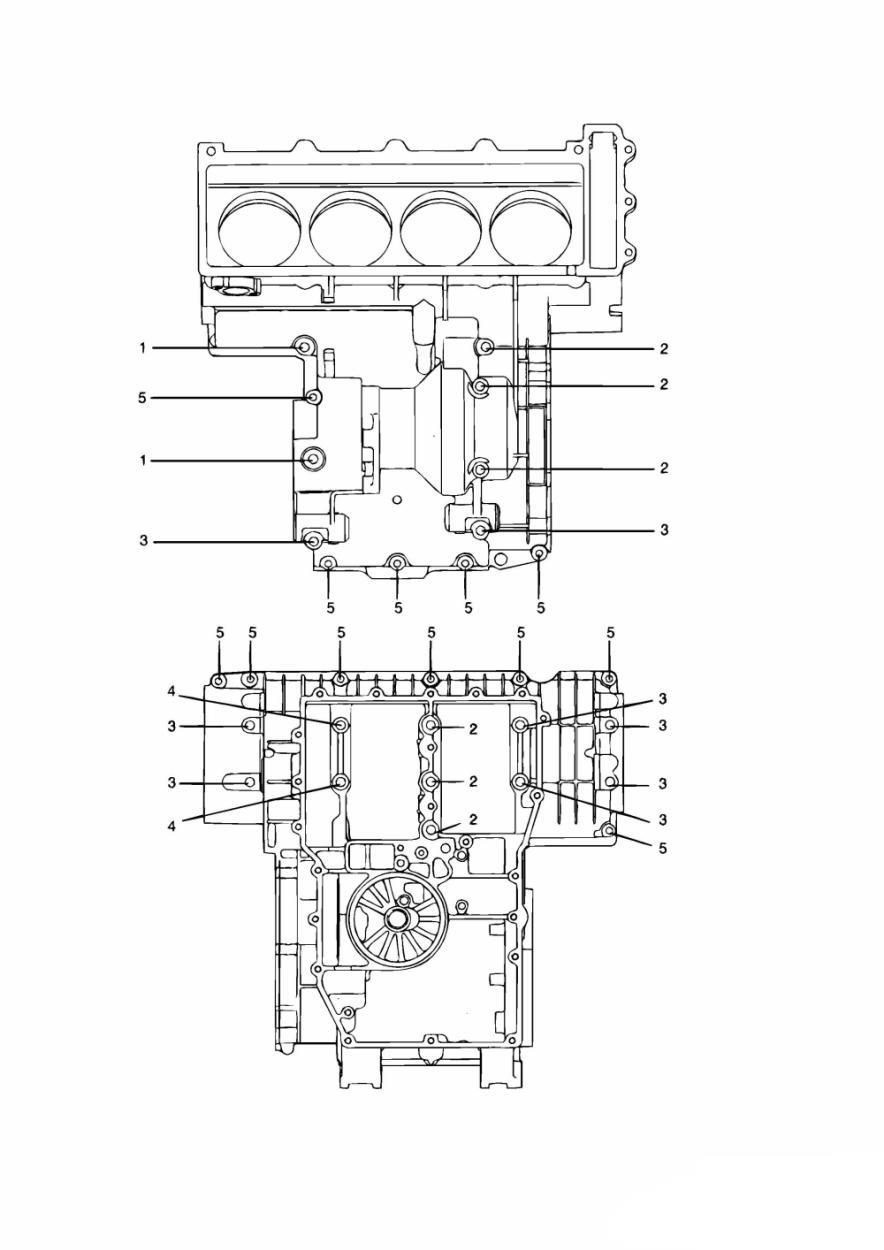

Crankcase Fixings 4 Cylinder Grey
5 parts
Crankcase Fixings 4 Cylinder
7 parts

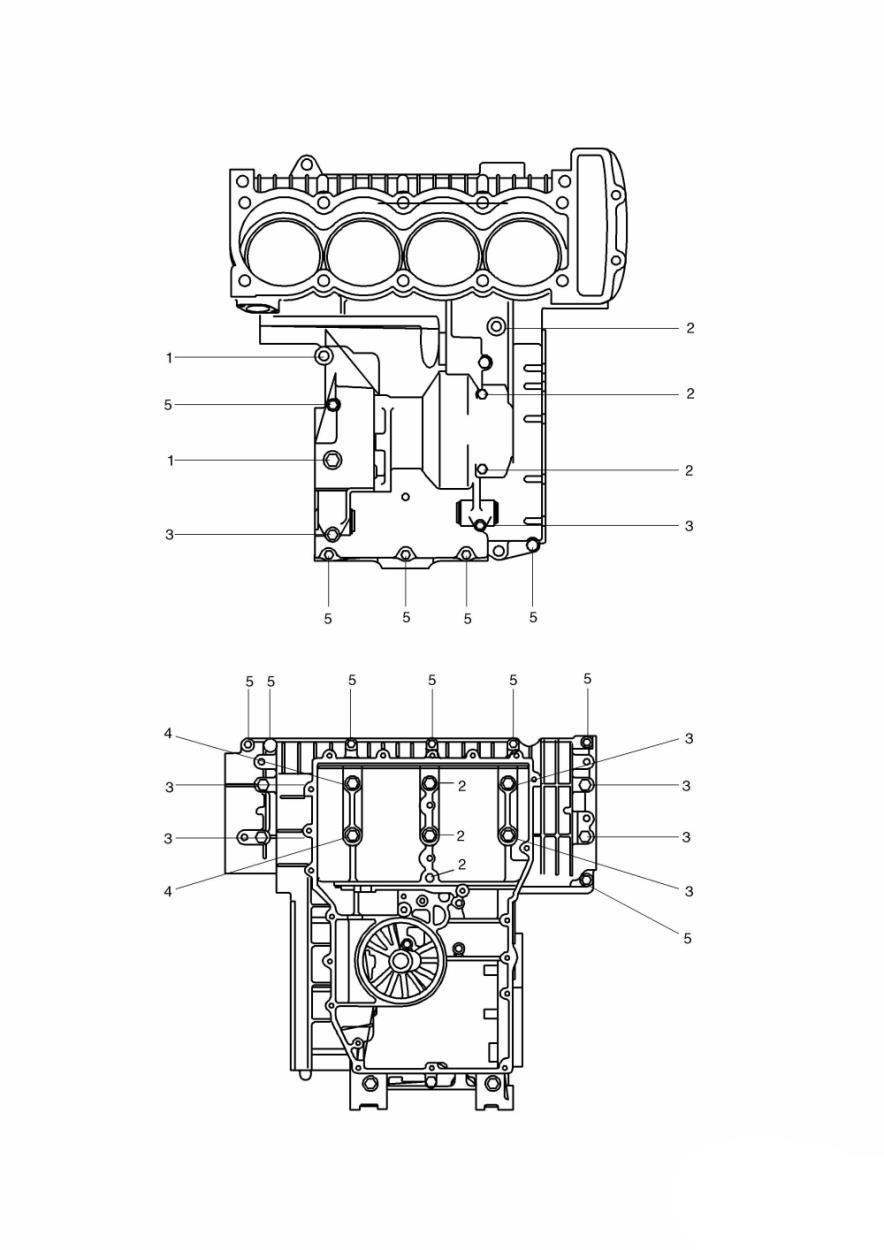

Crankcase Fixings 4 Cylinder Black
9 parts

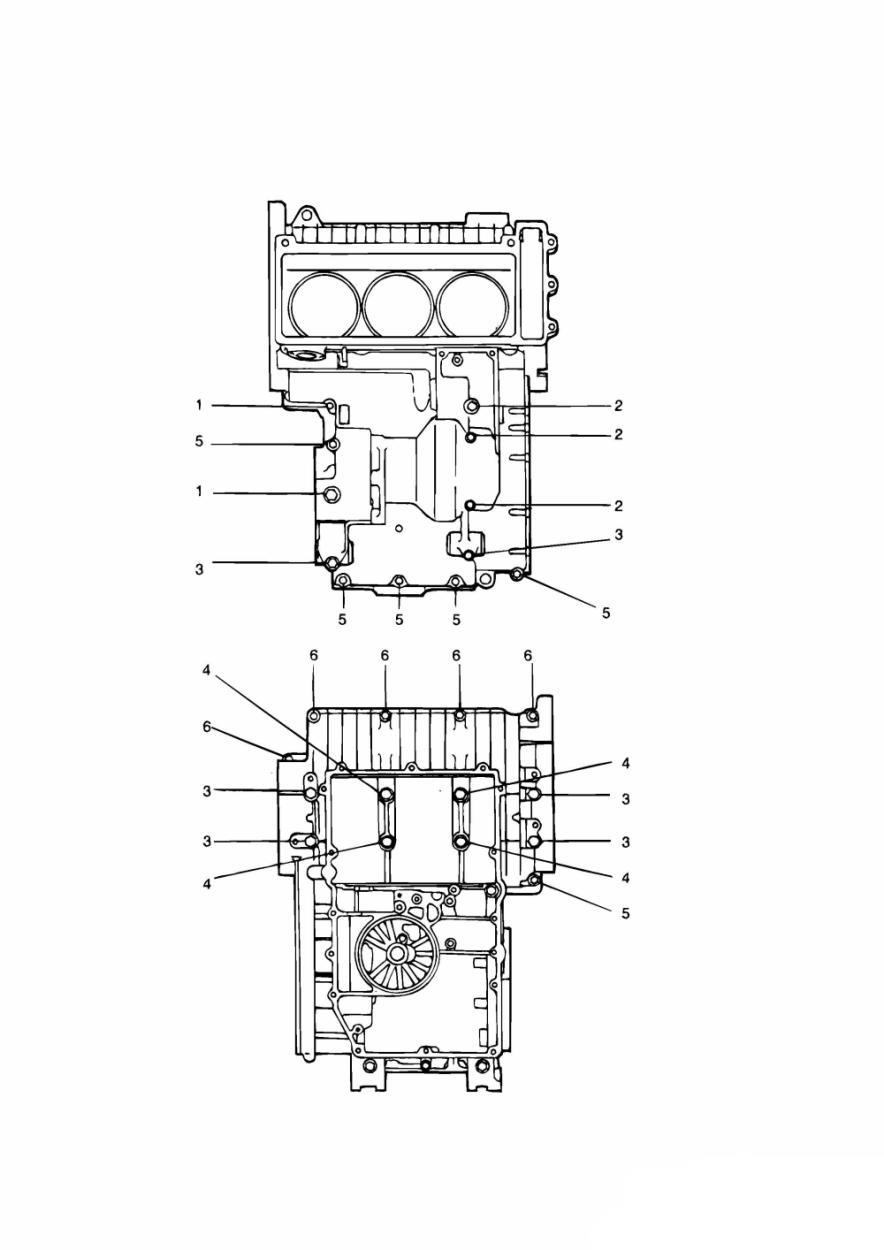

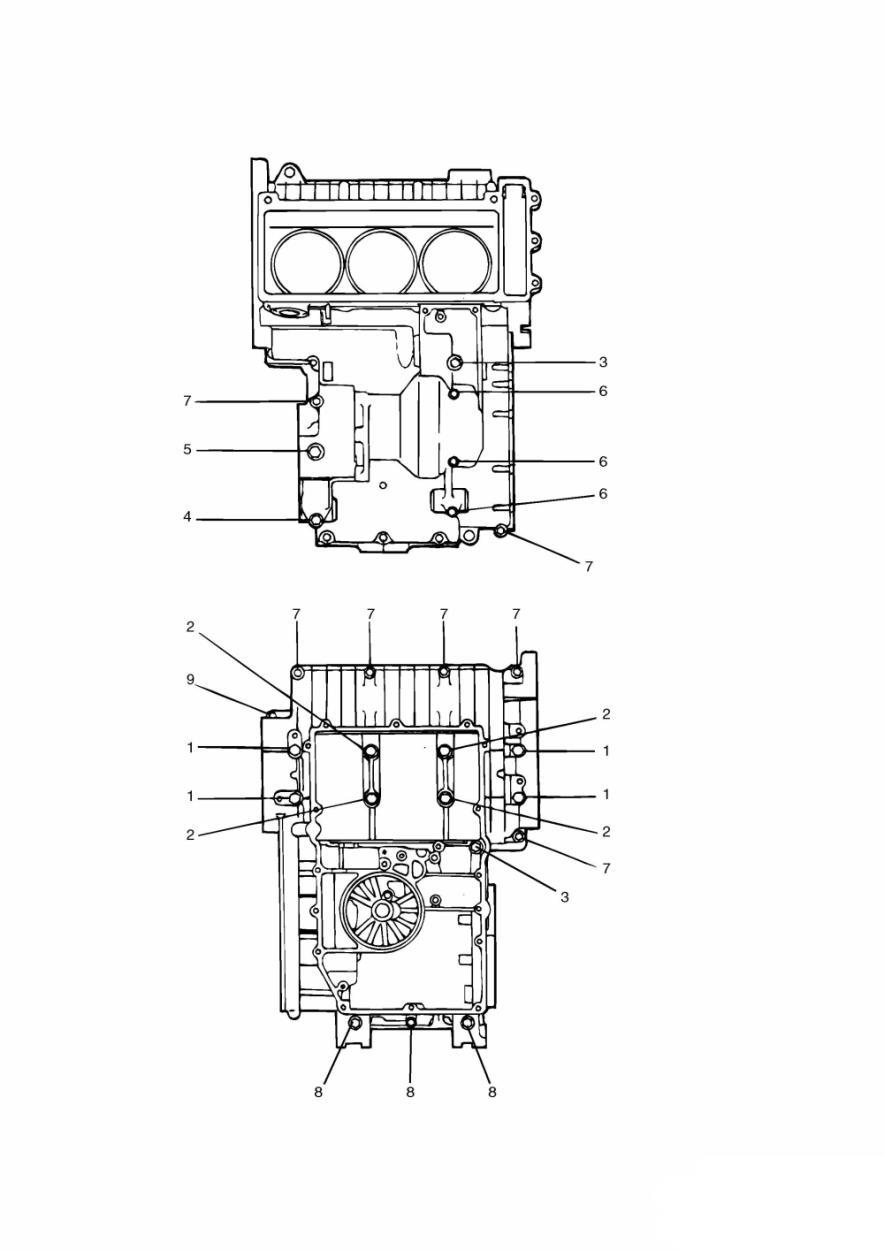

Crankcase Fixings 3 Cylinder
15 parts
Crankcase Fixings 3 Cylinder
9 parts
Crankcase Fixings
8 parts
Engine Covers

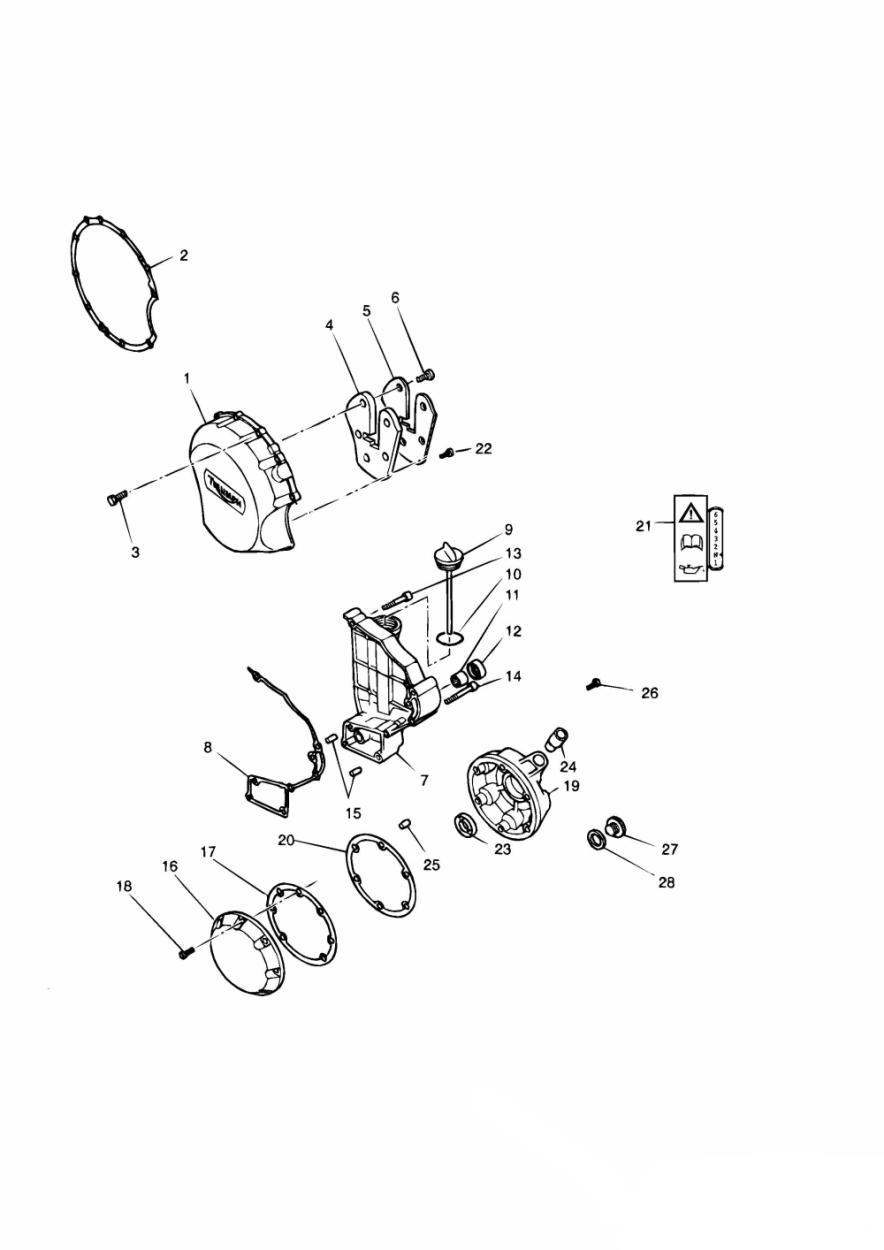

Engine Covers 4 Cylinder Grey
29 parts

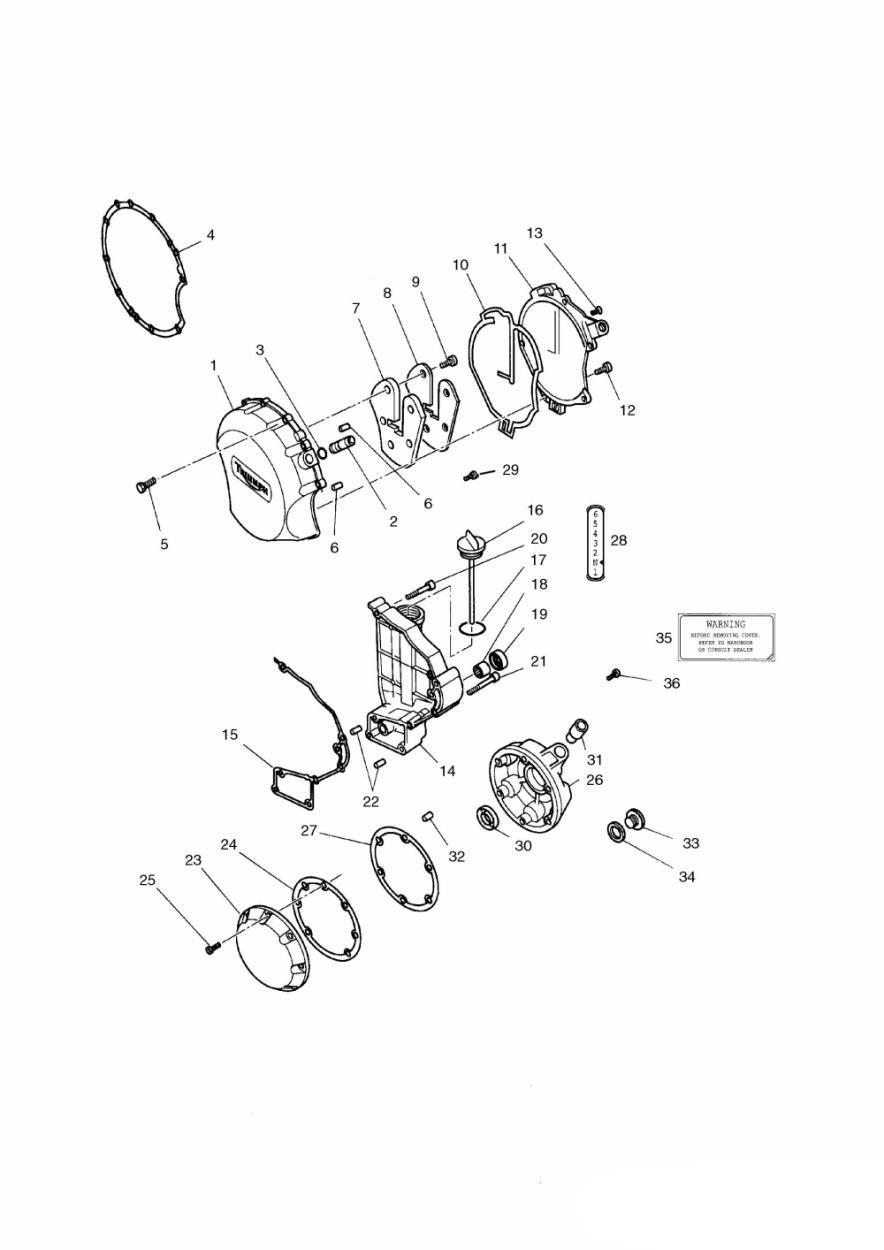

Engine Covers 4 Cylinder Silver
42 parts

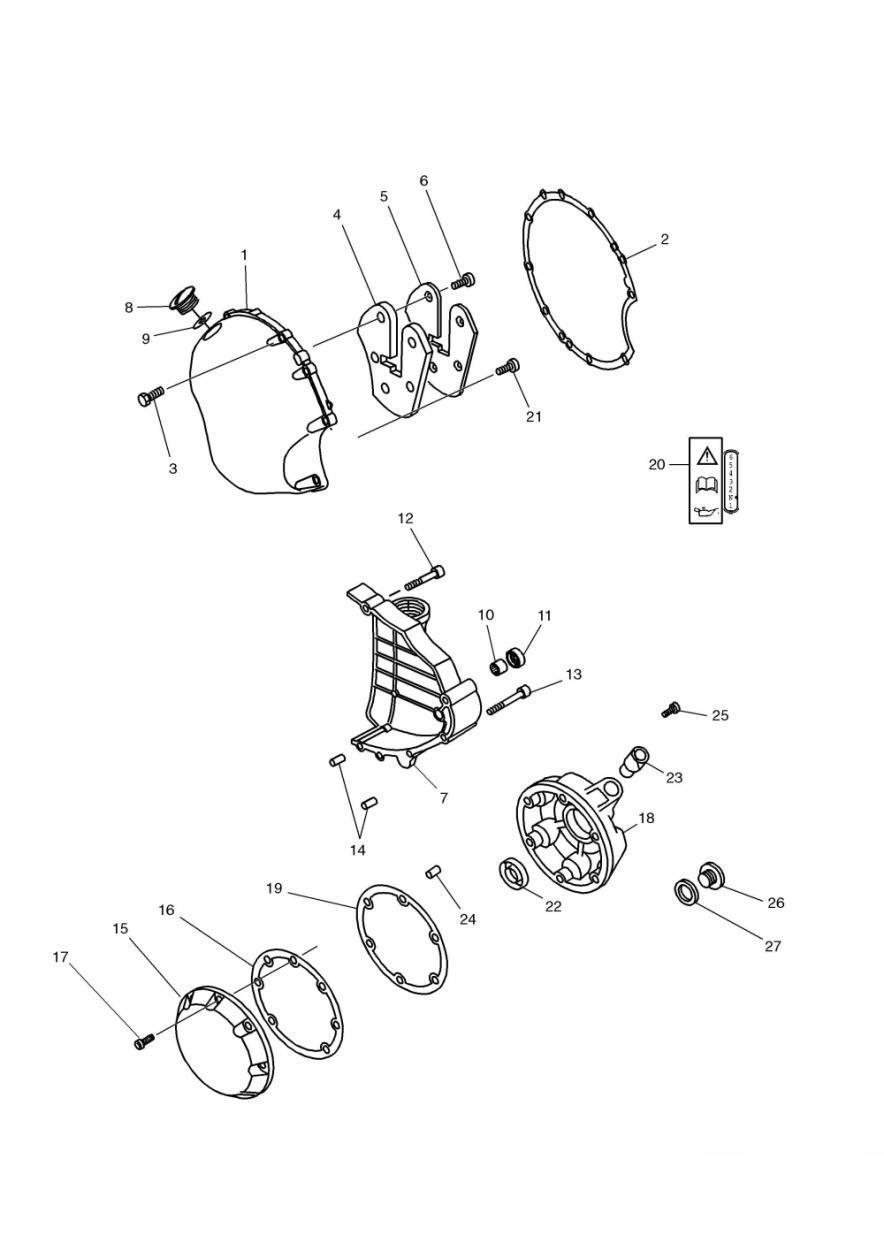

Engine Covers 4 Cylinder Black
30 parts

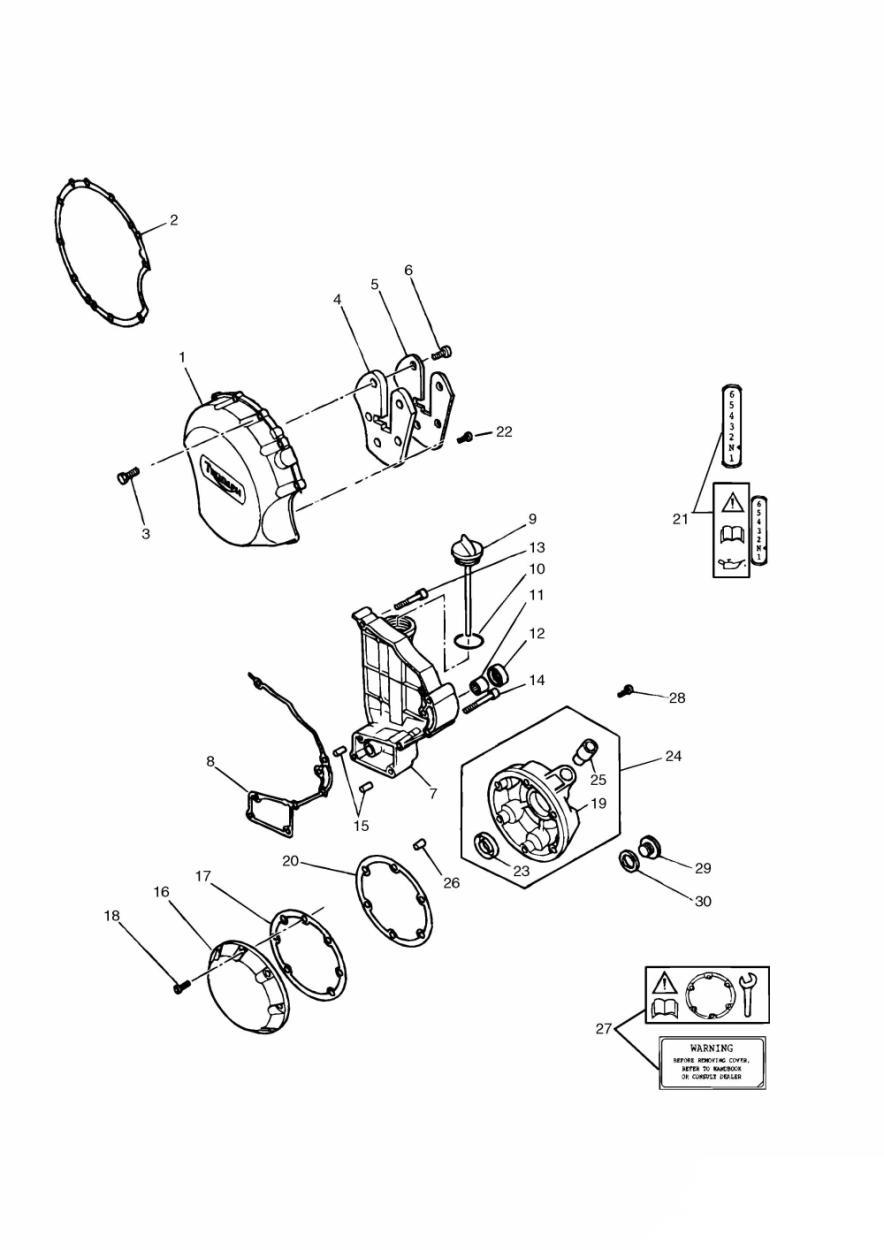

Engine Covers 4 Cylinder Grey
33 parts

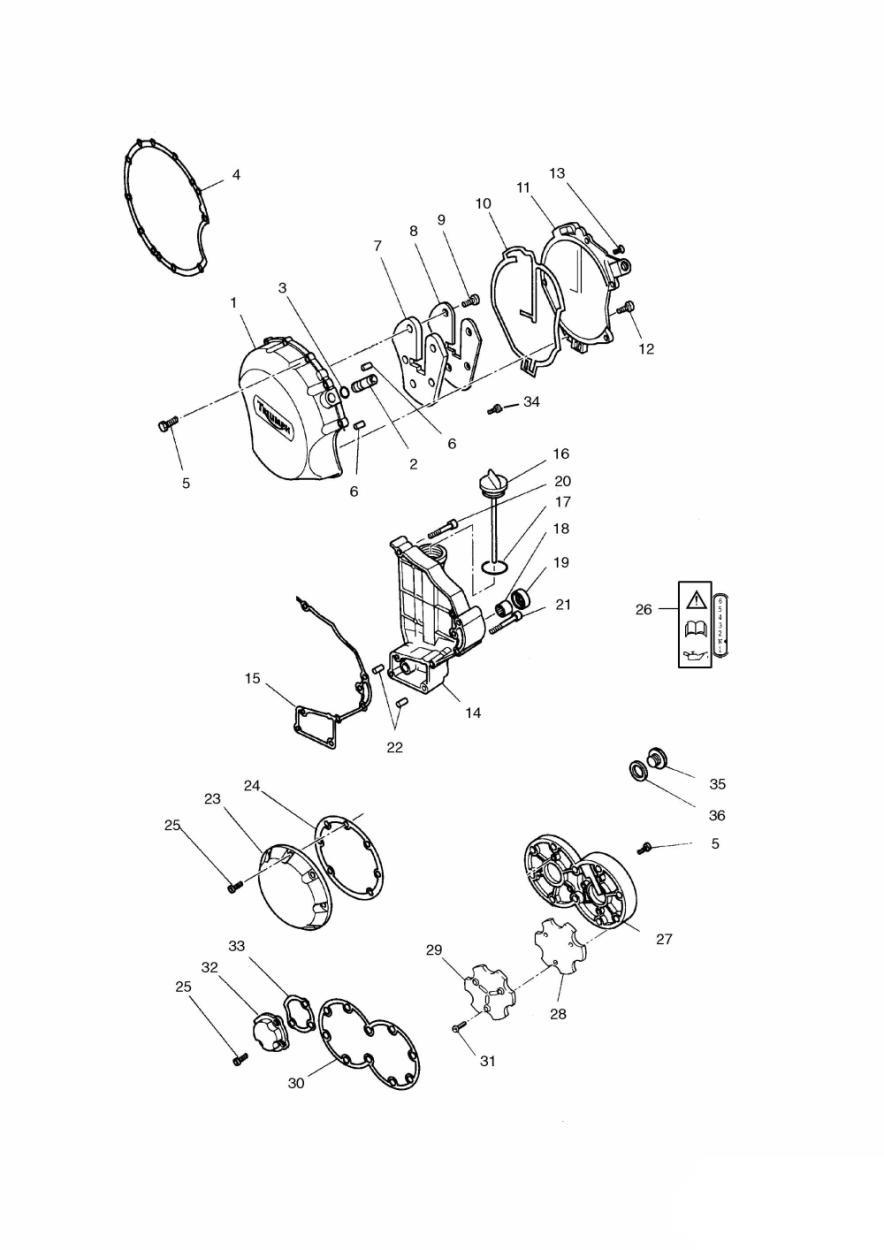

Engine Covers 3 Cylinder
41 parts

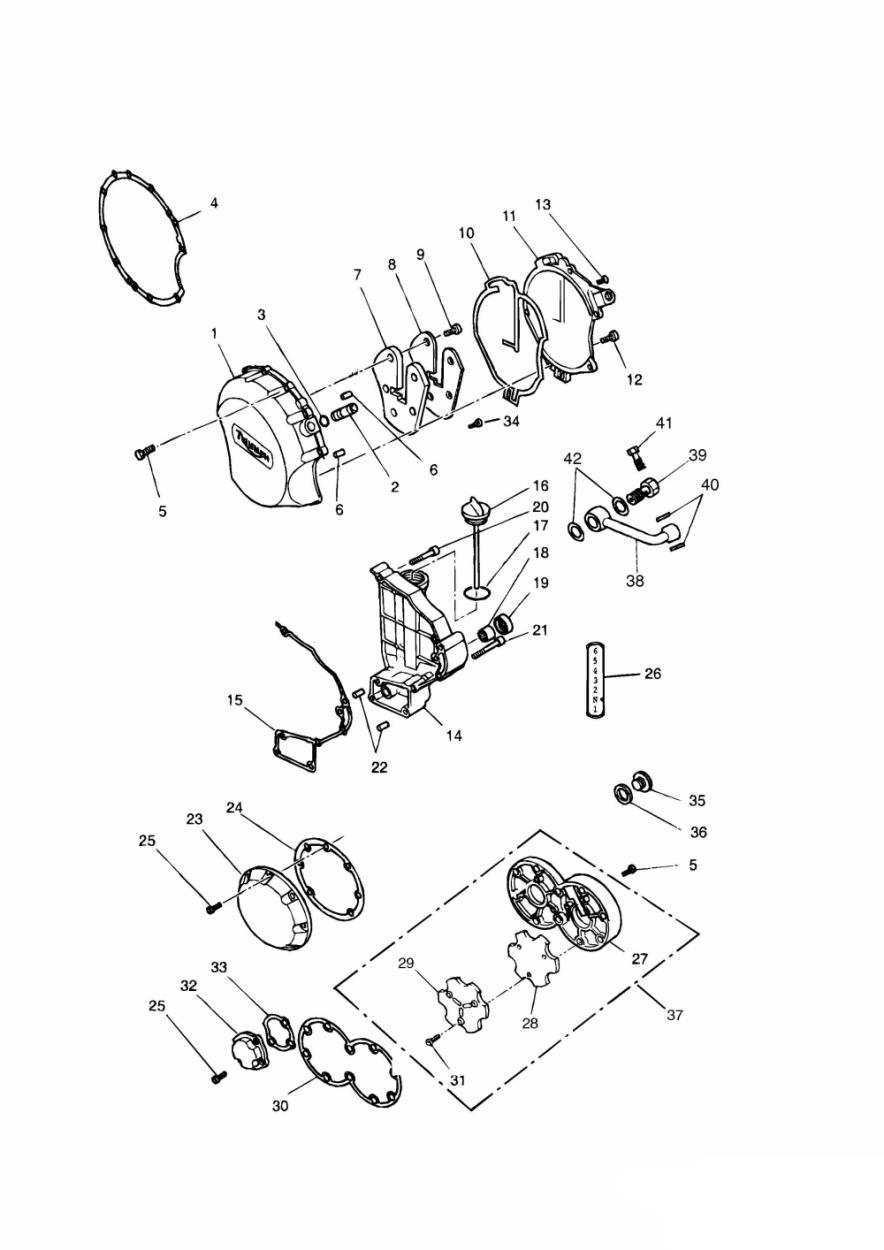

Engine Covers 3 Cylinder Silver
47 parts

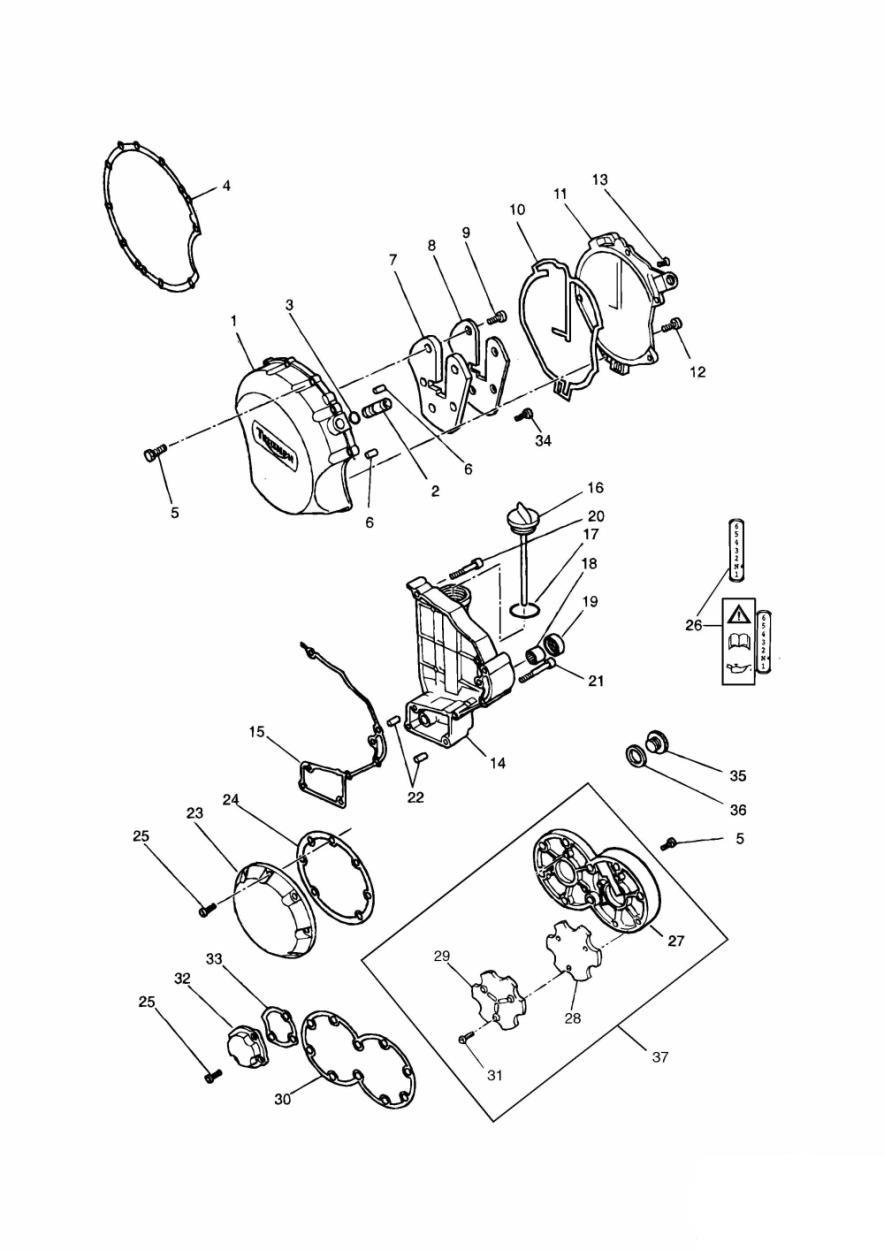

Engine Covers 3 Cylinder Grey
41 parts
