Front Suspension/Steering/Clutch Master Cylinder
Triumph Trophy · 11 diagrams
11 exploded diagrams for the front suspension/steering/clutch master cylinder of the Triumph Trophy, covering the Trophy. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Front Forks and Yokes
51 parts
VIN 29155 and lower
Handlebars and Switches
27 parts
VIN 29156 and higher
Handlebars and Switches
19 parts
VIN 29155 and lower
Control Cables
8 parts
VIN 29156 and higher
Control Cables
8 parts
VIN 29155 and lower
Clutch Master Cylinder
15 parts
VIN 29156 and higher
Clutch Master Cylinder
16 parts
VIN 29155 and lower
Front Forks & Yokes
Front Forks and Yokes
38 parts
VIN 42274 and lower
Front Forks and Yokes
44 parts
More than one model
Front Forks and Yokes Except VINS
37 parts
More than one model
Front Forks and Yokes
37 parts
More than one model
76 parts you can order online
Every part below appears in Triumph’s Front Suspension/Steering/Clutch Master Cylinder diagrams for the Trophy and is priced and orderable online. Open a part to see what it fits and to buy it.

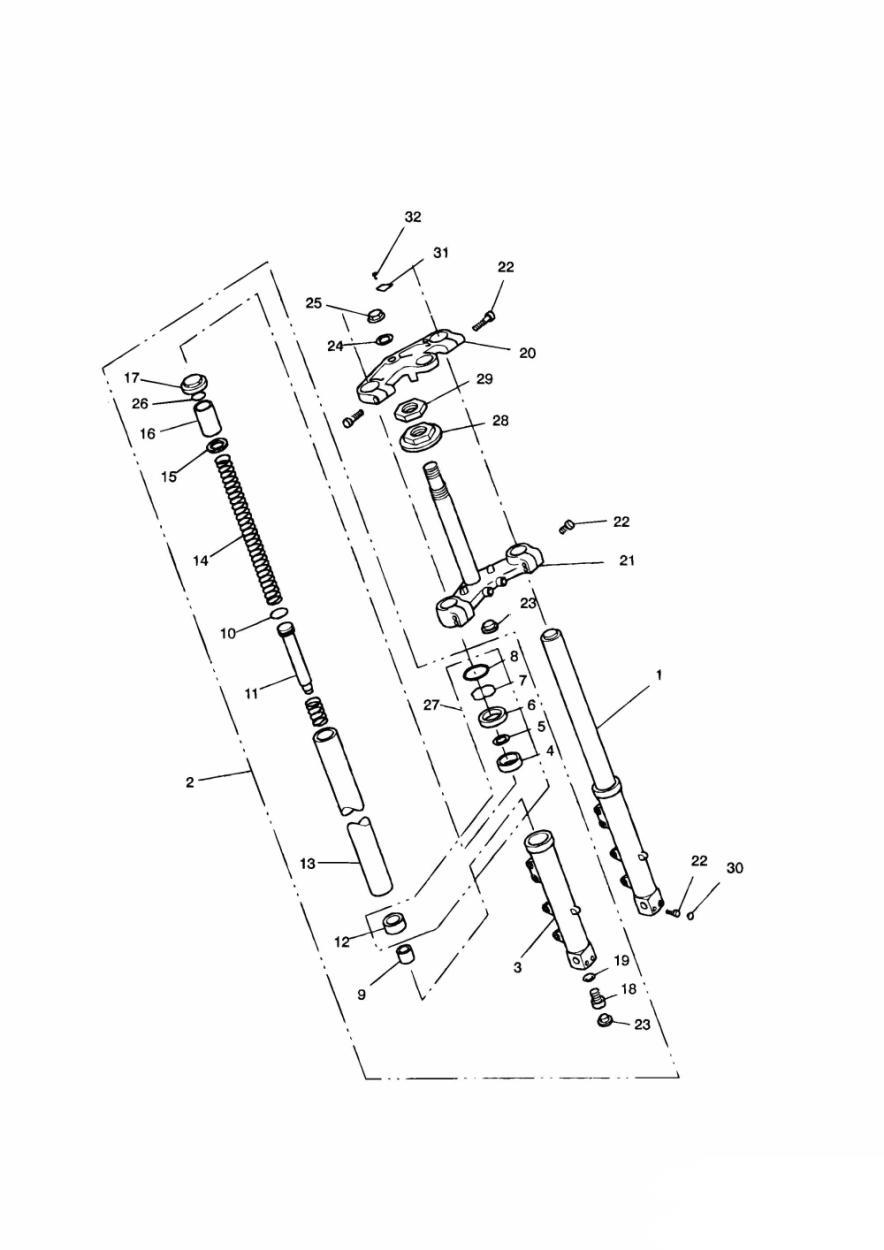

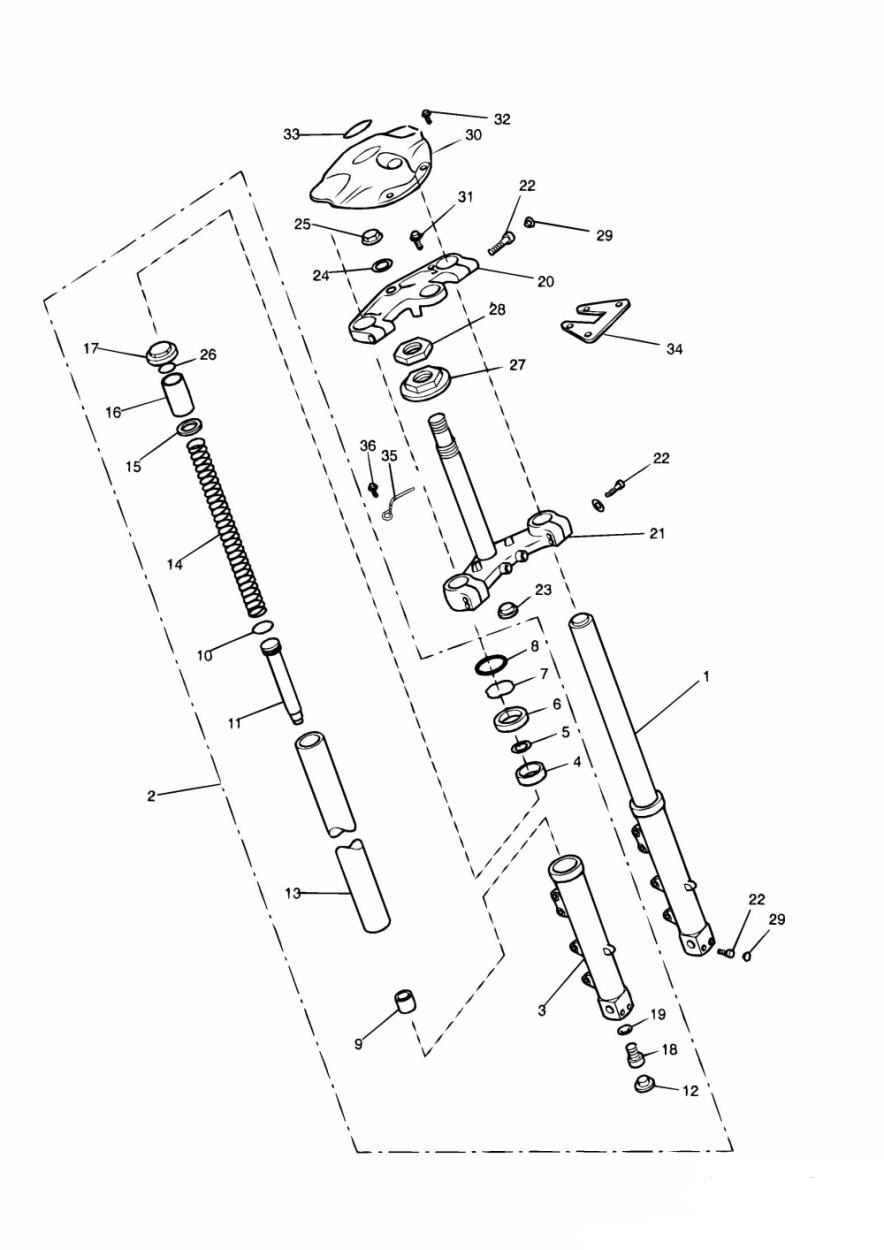

Front Forks and Yokes VIN 29155 and lower
2040076-T0301 Sliding bush
$13.64
Available2040078-T0301 Oil seal
$19.44
Available2040079-T0301 Ring snap
$6.33
In stock in Brea2040080-T0301 Dust seal
$18.60
Available2040160-T0301 Oil lock
$8.35
Available2040171-T0301 Bearing
$6.61
Available2040172-T0301 Bearing
$9.15
Available2040085-T0301 Guide
$3.71
AvailableT2040169 Cap, Fork
$75.69
AvailableT3051032 Screw, Cap/HD, M8 x 40, Slv
Backordered at Triumph · expected Nov 6
$1.99
On backorderT3450060 Cap
Low stock at Triumph
$1.99
Limited availabilityT2040061 Washer Upper Yoke
$6.61
AvailableT2040060 Nut
$22.99
AvailableT2040081 O Ring, Fork Seal
Low stock at Triumph
$3.32
Limited availability2040173-T0301 Seal kit
$32.81
AvailableT2140210 Adjuster Nut, Upper
$3.14
AvailableT3450200 Plug, Caphead, Chrome
$3.88
AvailableT3900405 Badge
$20.60
AvailableT3300090 Rivet
$1.99

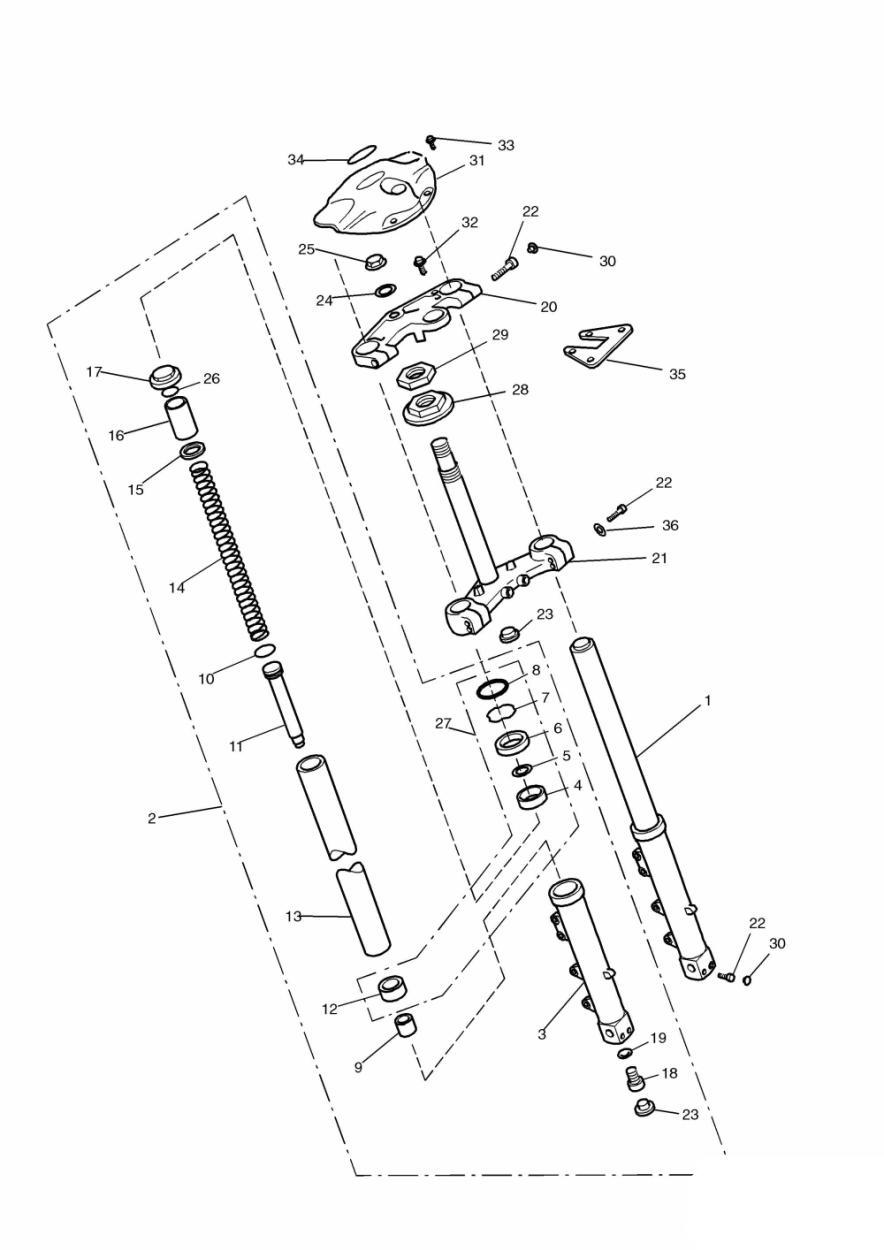

AvailableFront Forks and Yokes VIN 42274 and lower
T2040185 Tube inner
$302.81
AvailableT2045043 Guide spring
$10.49
AvailableT3450270 Retainer
$1.99
AvailableT3900450 Badge, Oval, Plastic
Low stock at Triumph
$7.90
Limited availabilityT2500028 Bracket
$3.32
AvailableT3550405 Washer, M8 x 17 x 1.6
$1.99

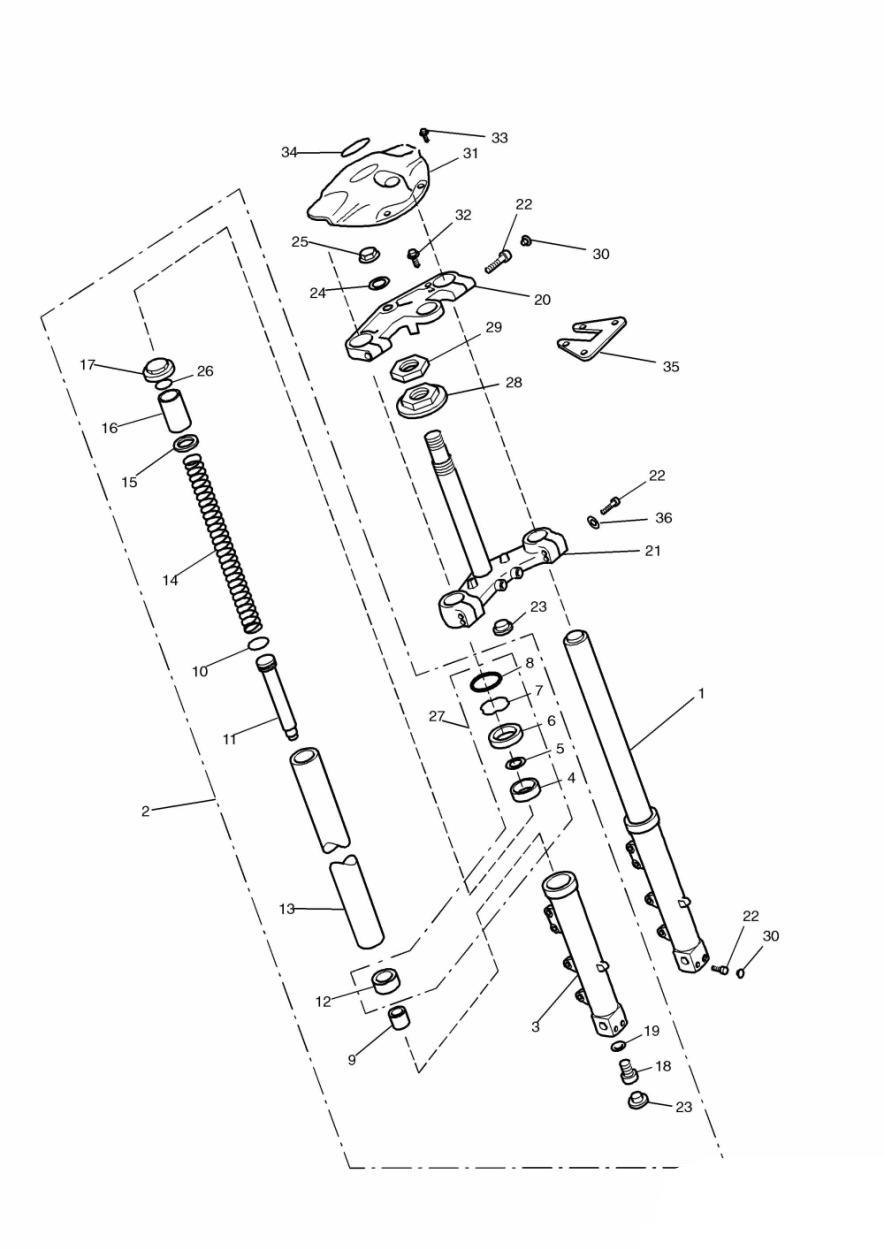

AvailableFront Forks and Yokes More than one model
T2045862 Guide, Bush
$11.62
AvailableT2046246 Seal, Spacer
$5.54
AvailableT2042894 Oil seal
$19.78
AvailableT2046248 Stop Ring
Low stock at Triumph
$6.33
Limited availabilityT2042906 Oil lock
$9.52
AvailableT2042888 Fork Leg Piston Ring
$9.43
AvailableT3450062 Plug, Plastic, Black
Low stock at Triumph
$1.99
Limited availabilityT2042915 Tube inner
$475.29
AvailableT2042901 Spring
$100.32
AvailableT2042902 Guide spring
$11.76
AvailableT2042904 Cap
$75.69
AvailableT2042908 Capscrew
$10.10
AvailableT2042907 Sealing washer
$1.99
AvailableT3050073 Capscrew
Low stock at Triumph
$5.45
Limited availabilityT3450250 Moss Plug
$1.99
AvailableT2042905 O Ring, Fork Seal
Low stock at Triumph
$3.14
Limited availabilityT2040259 Cover, Headstock Assy
$22.53

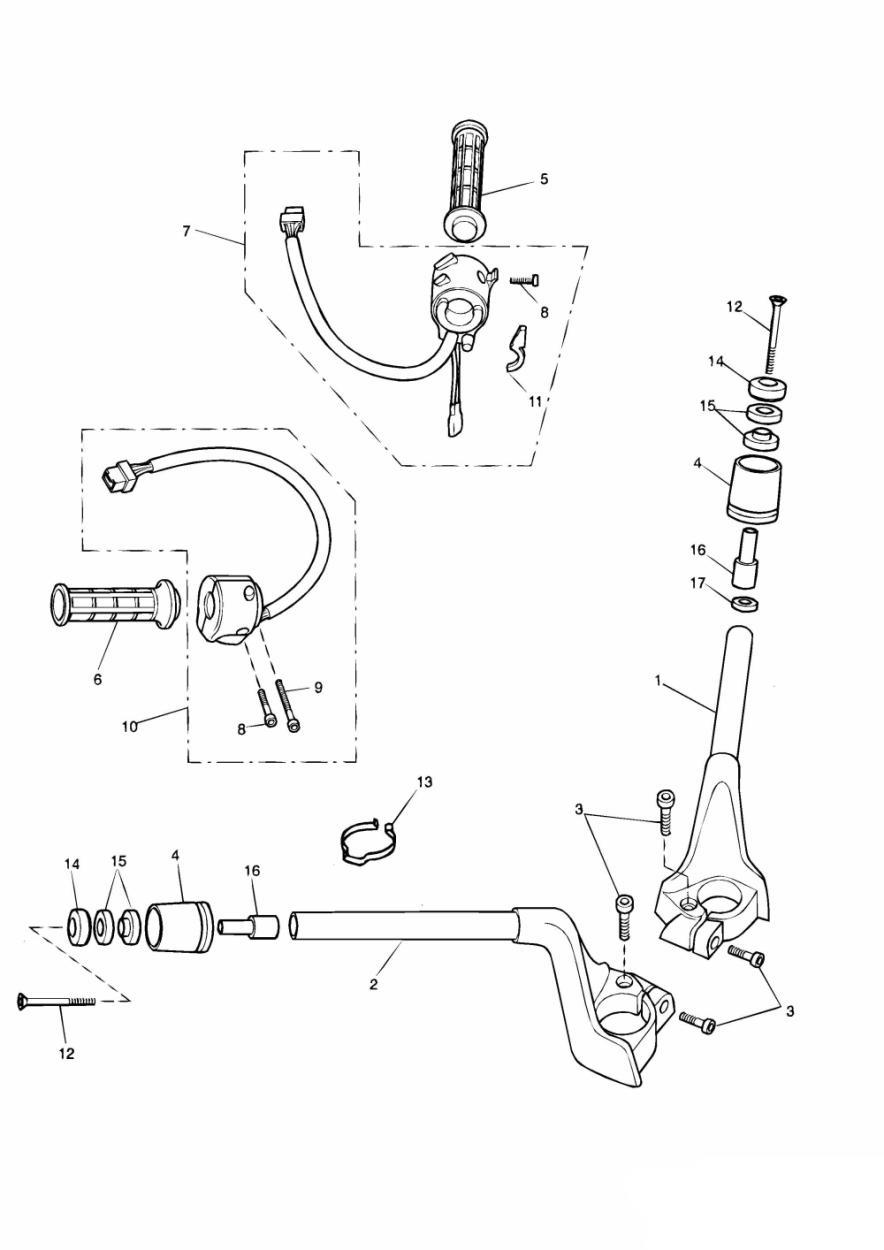

AvailableHandlebars and Switches VIN 29156 and higher
T3050323 Screw, Cap/Hd, M8 x 30, Slv
$4.39
AvailableT2040971 Weight kit
$67.75
AvailableT2040965 Weight
$34.51
AvailableT2040975 Handlebar weight
$34.51
Available2040026-T0301 Grip
Low stock at Triumph
$16.81
Limited availabilityT2040129 Switch assembly
$156.66
AvailableT2040128 Switch assembly
$179.56
AvailableT2040131 Switch assembly
$176.03
AvailableT3330933 Screw, CSK, M6 x 60, Slv
$1.99
AvailableT3700025 Cable clip
$1.99
AvailableT2040969 Finisher, Handlebar
$16.38
AvailableT2040968 Sleeve
$5.19
AvailableT2040978 Sleeve
$5.19
AvailableT2040979 Spacer
Backordered at Triumph · we’ll confirm the ship date after you order
$2.09

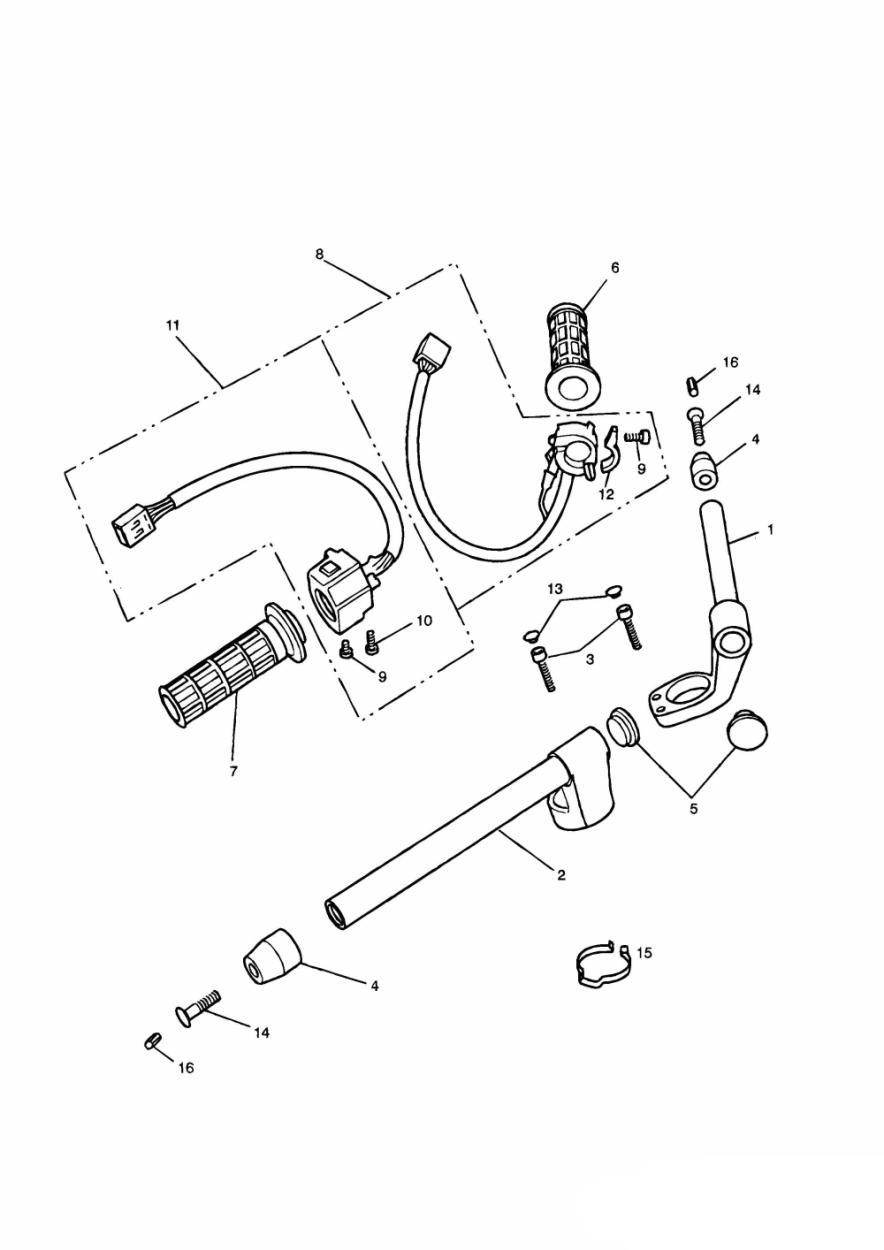

On backorderHandlebars and Switches VIN 29155 and lower
2040126-T0301 Handlebar rh
$170.73
AvailableT3450195 Plug, M8, Black
$1.99
Available3450125-T0301 Bung
$1.99

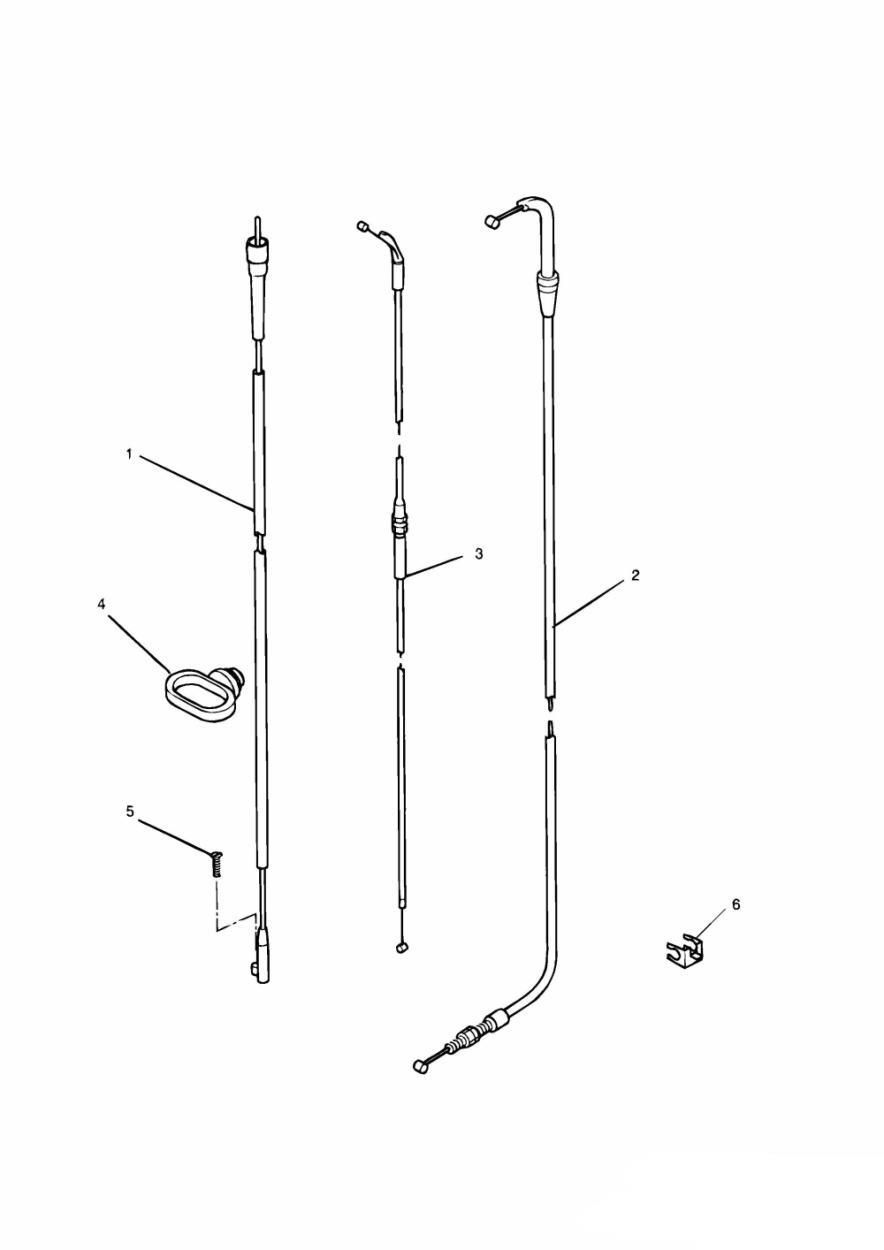

AvailableControl Cables VIN 29156 and higher
T2040454 Cable throttle
$46.55
AvailableT2043512 Cable throttle
$50.69
AvailableT2040466 Cable choke
Low stock at Triumph
$56.05
Limited availabilityT3331017 Screw. Phil CSK. M5 x 20, Slv
$3.94
AvailableT1240945 Clip
$4.56

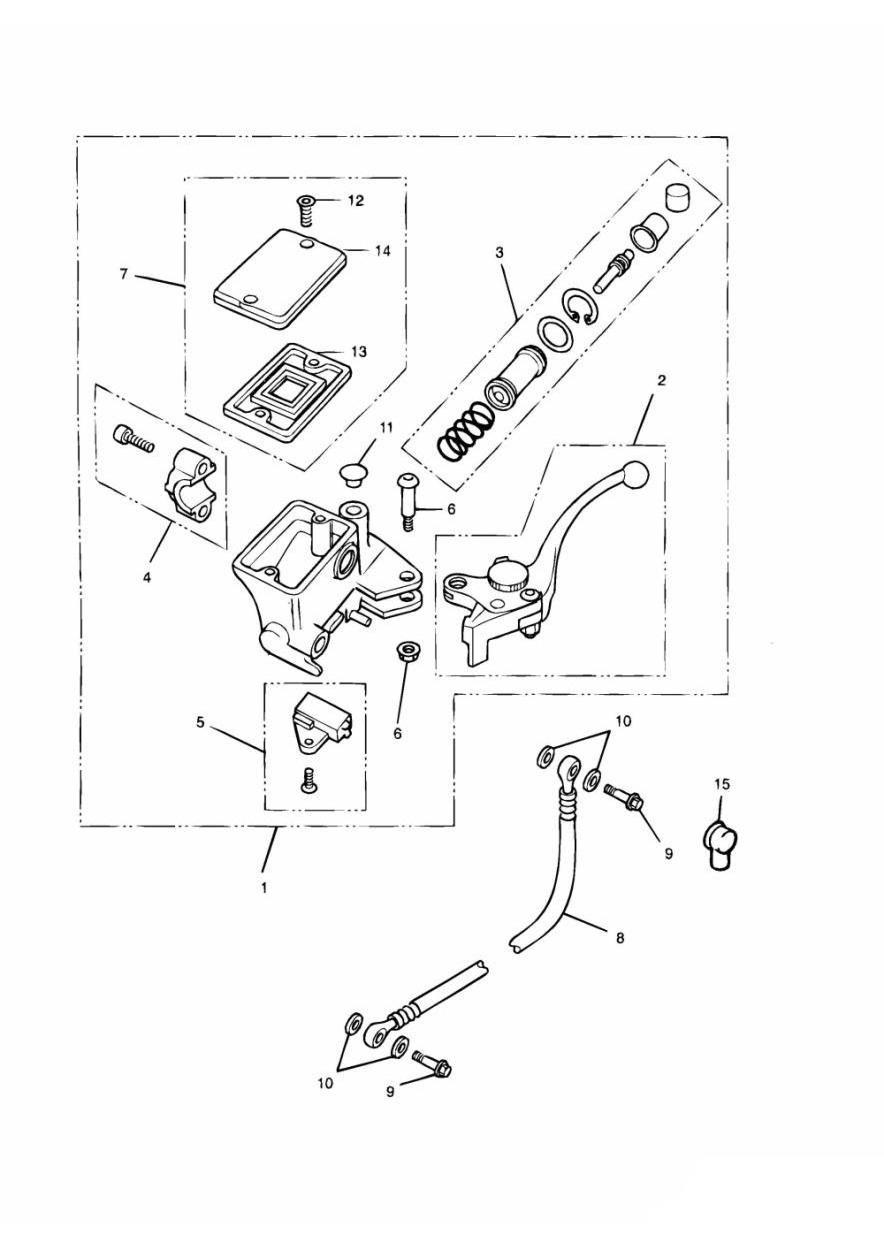

AvailableClutch Master Cylinder VIN 29156 and higher
T2040350 Lever Assembly, Adjustable
$79.76
Available2040040-T0301 Piston set
$70.41
Available2040038-T0301 Switch
$25.93
AvailableT2020158 Lever, Bolt, Front M/Cyl
$12.56
AvailableT2020152 Top Set, Front M/Cyl
$54.55
AvailableT3250125 Bolt, Banjo, M10 x 21
$6.50
AvailableT3550229 Washer, 15.2 x 10 x 1, Plated
$1.99
In stock in BreaT3450015 Plug, M10
$1.99
AvailableT2020166 Screw, Reservoir
$1.99
AvailableT2020164 Diaphragm, Reservoir
$10.57
AvailableT2020074 Boot cover
$1.99
Available
