Fuel & Exhaust Systems
Triumph Trophy · 40 diagrams
40 exploded diagrams for the fuel & exhaust systems of the Triumph Trophy, covering the Trophy. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Exhaust System

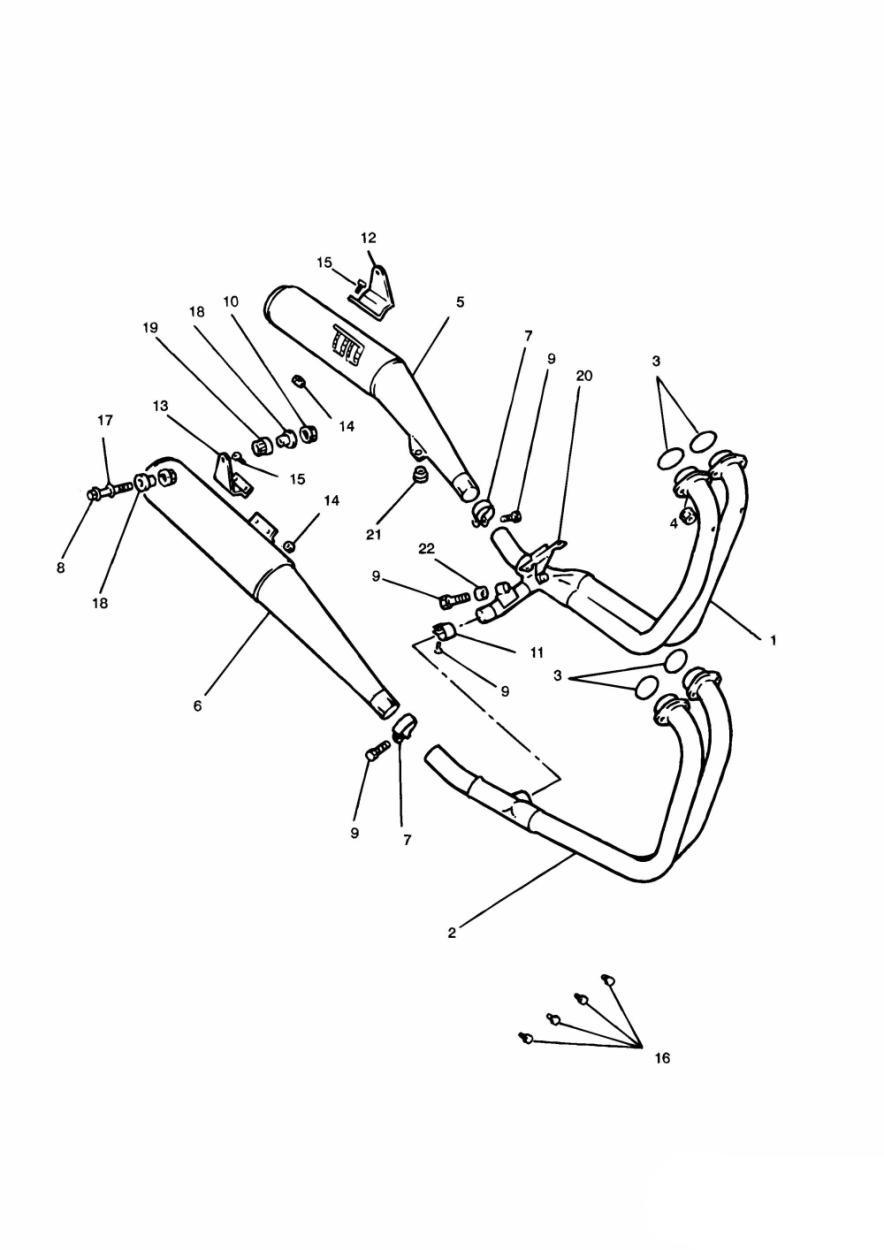

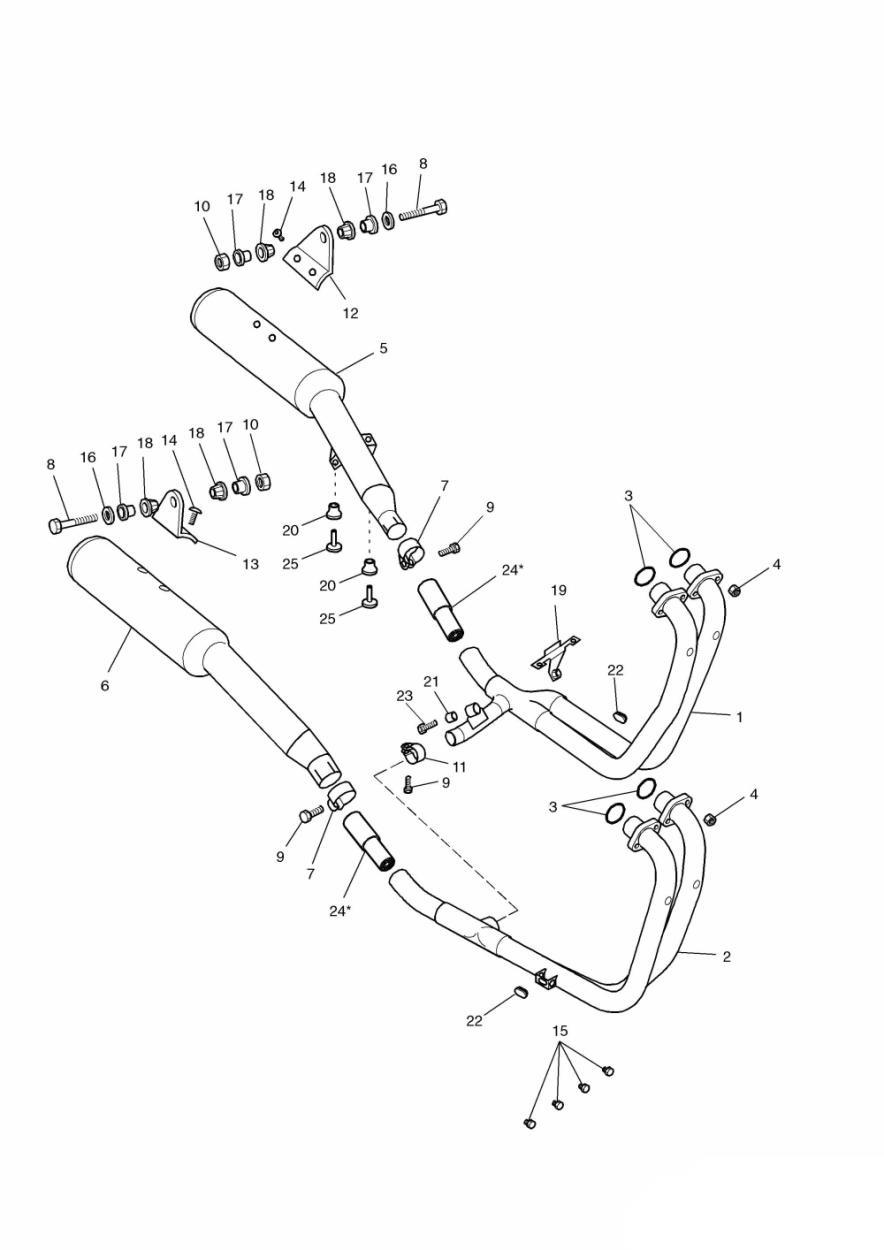

4 Cylinder Exhaust System
36 parts

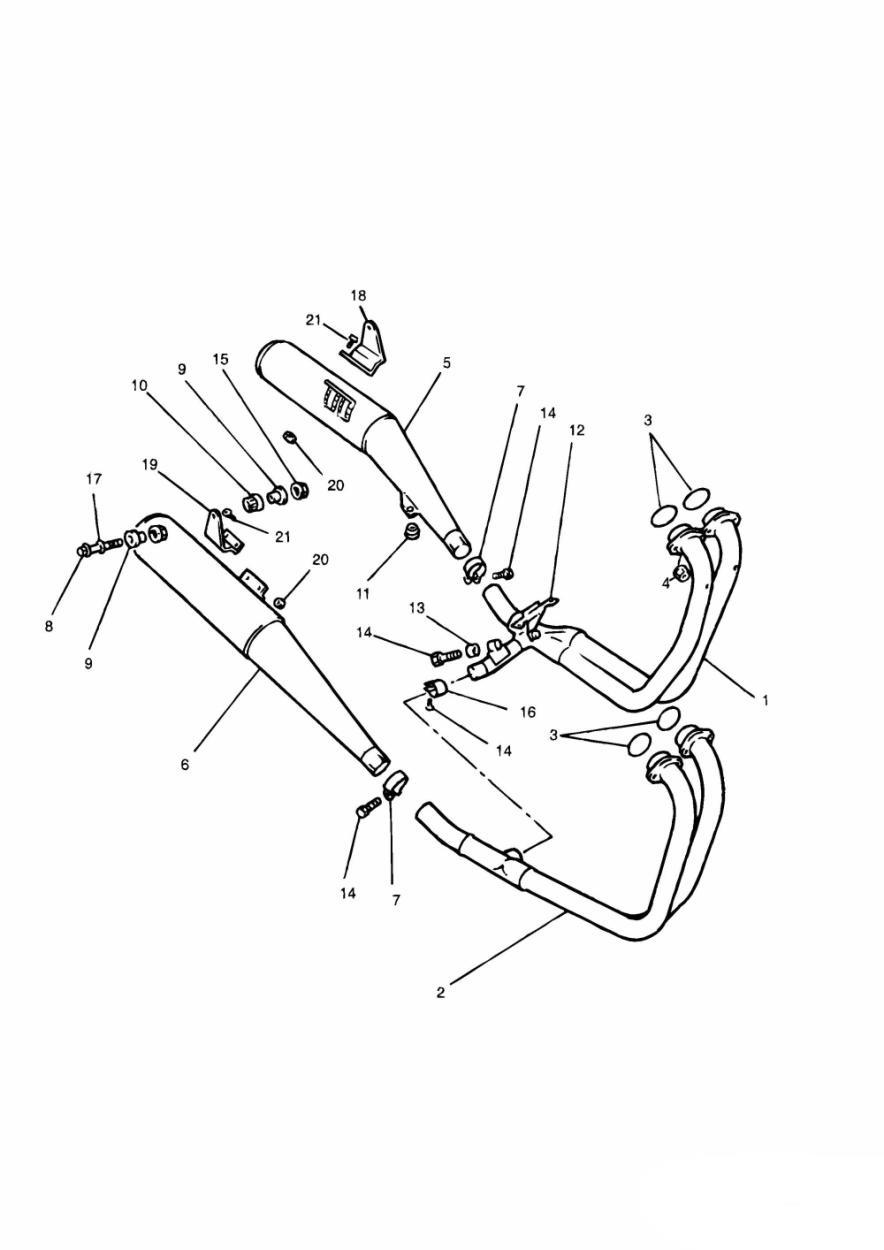

Exhaust System 4 Cylinder Engines
23 parts

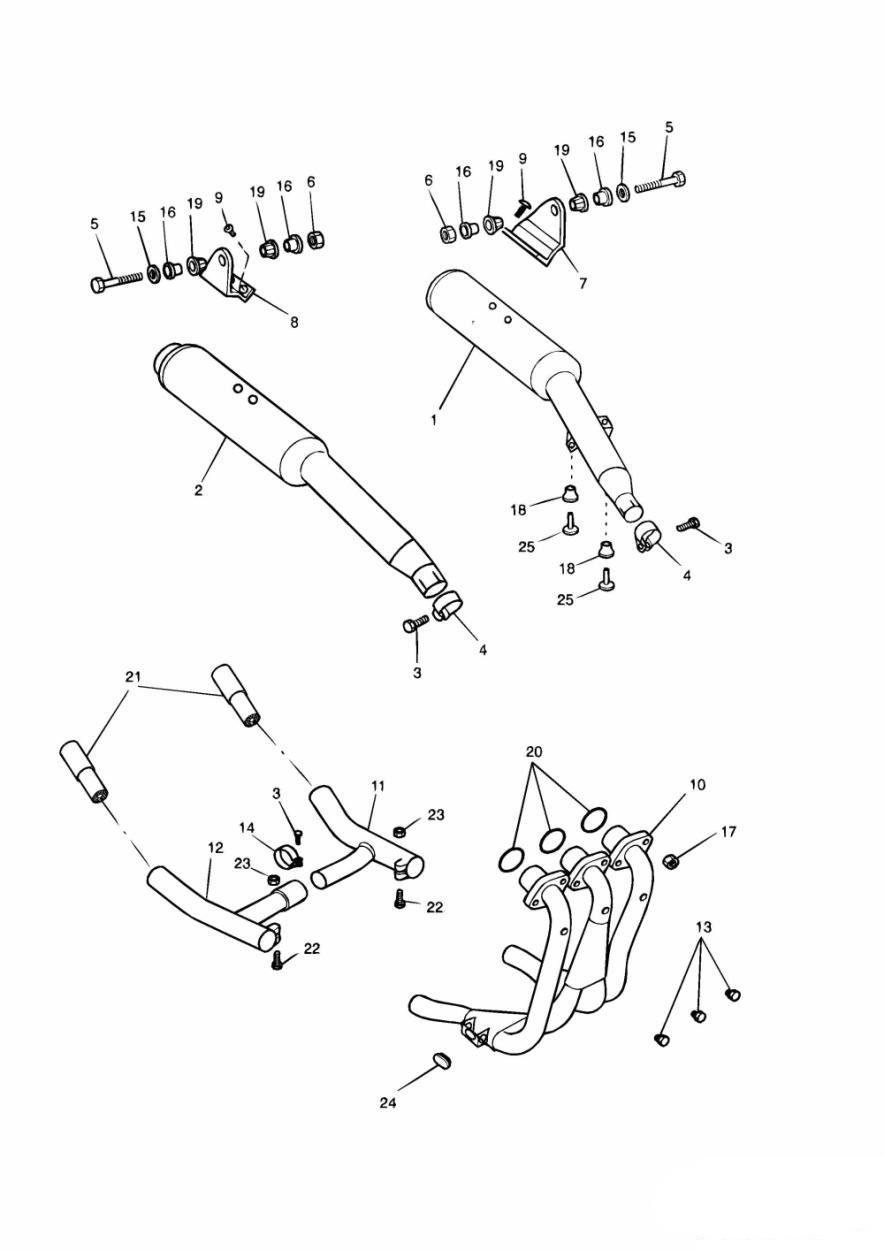

3 Cylinder Exhaust System
38 parts
Exhaust System 4 Cylinder
23 parts

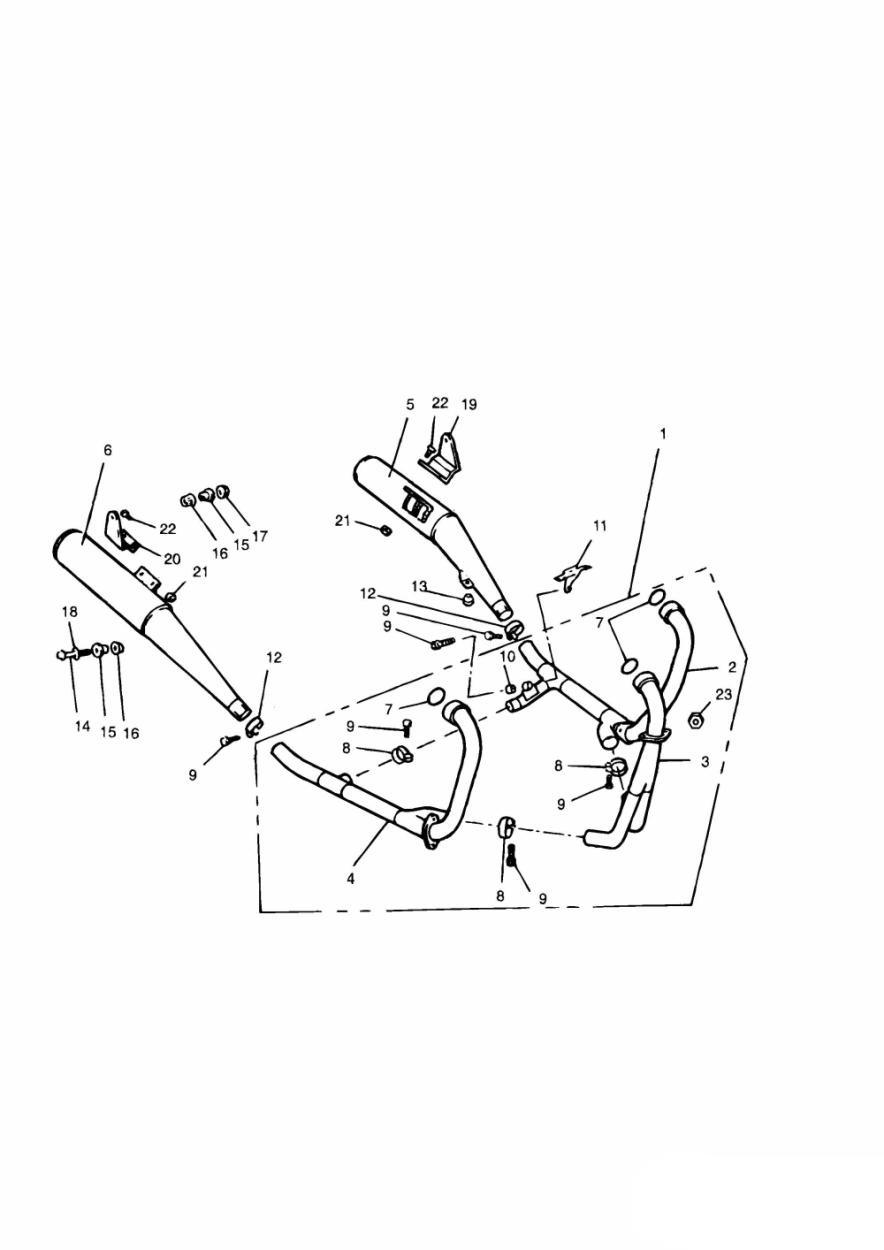

Exhaust System 3 Cylinder Engines
25 parts

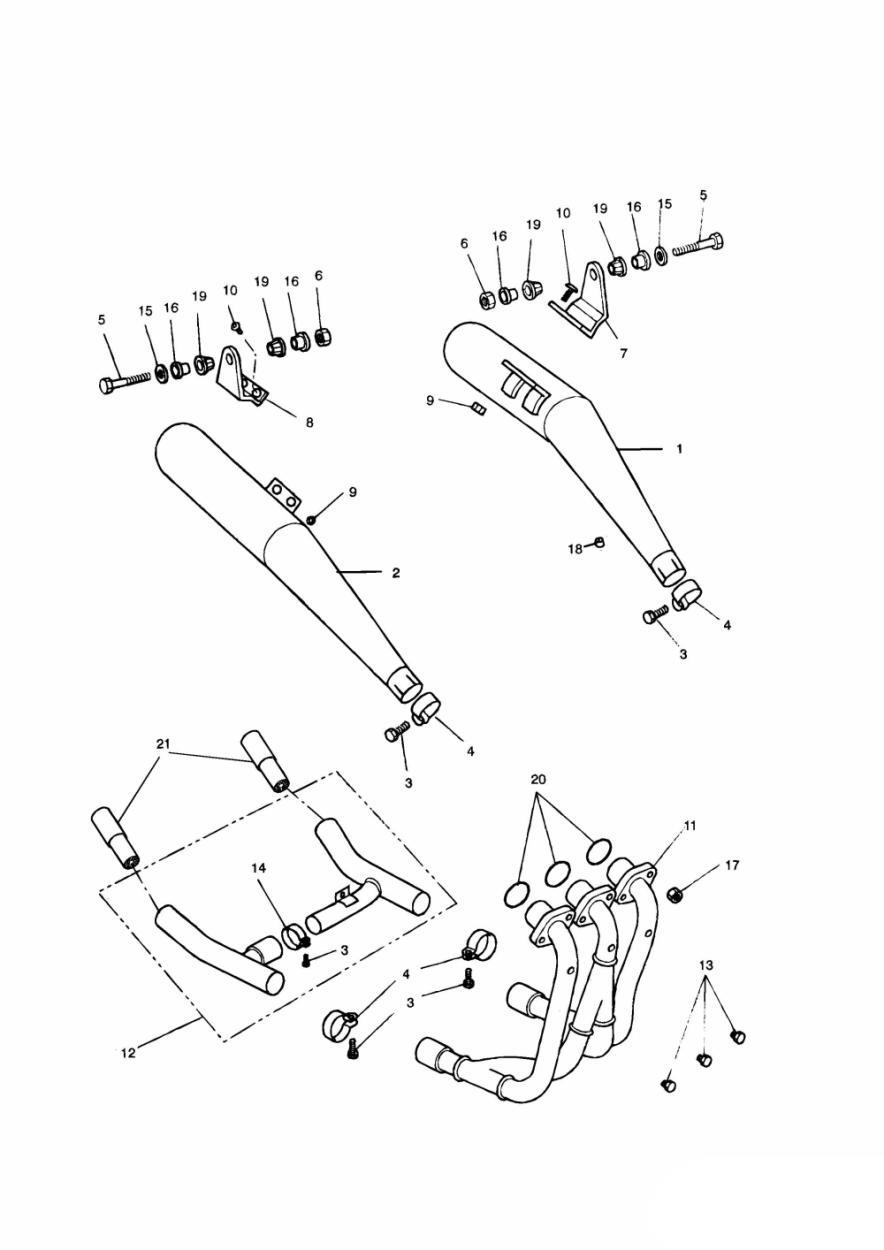

Exhaust System 3 Cylinder
21 parts
Airbox

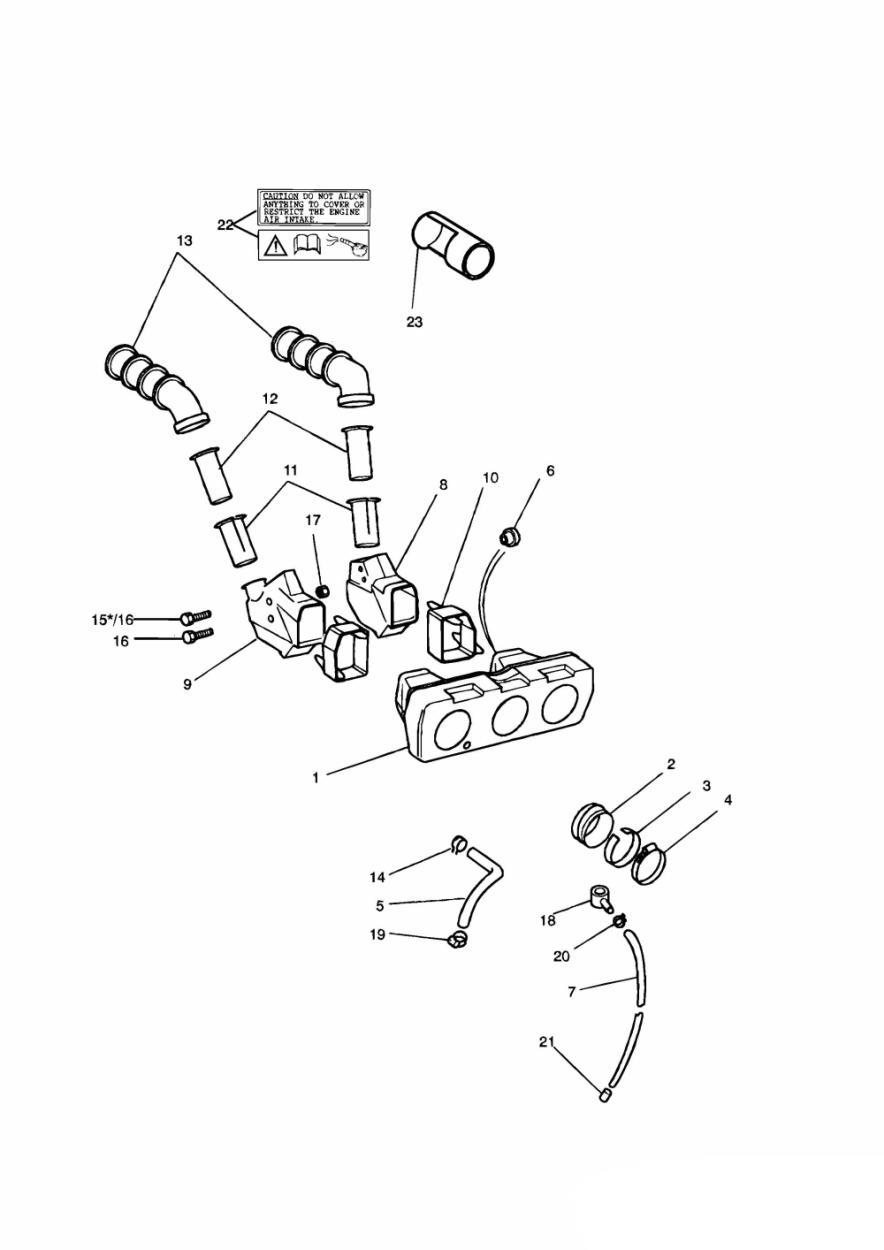

Airbox 4 Cyl, All markets. 3 Cyl, All markets except US CAL
28 parts

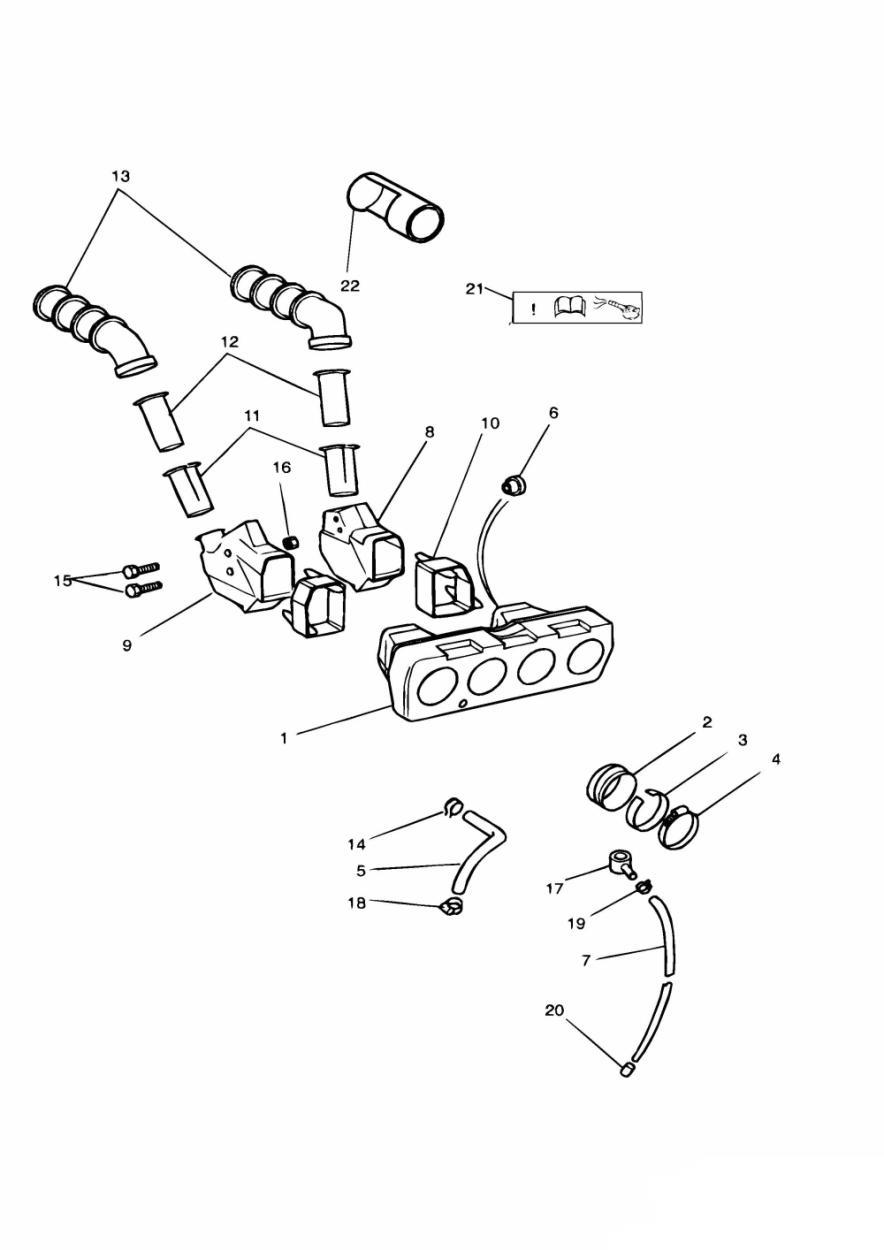

Airbox 4 Cylinder
25 parts

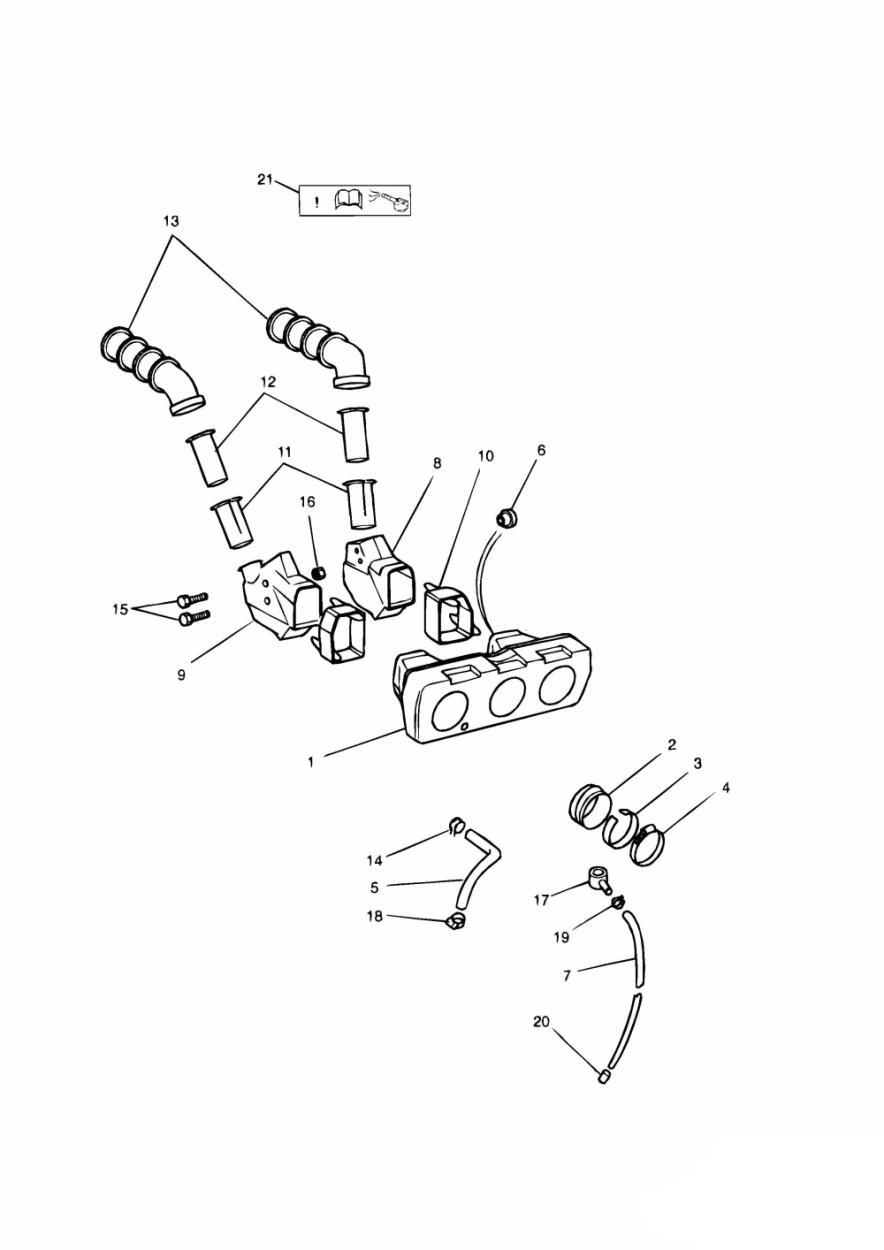

Airbox 3 Cylinder - All Markets Except US CAL
28 parts

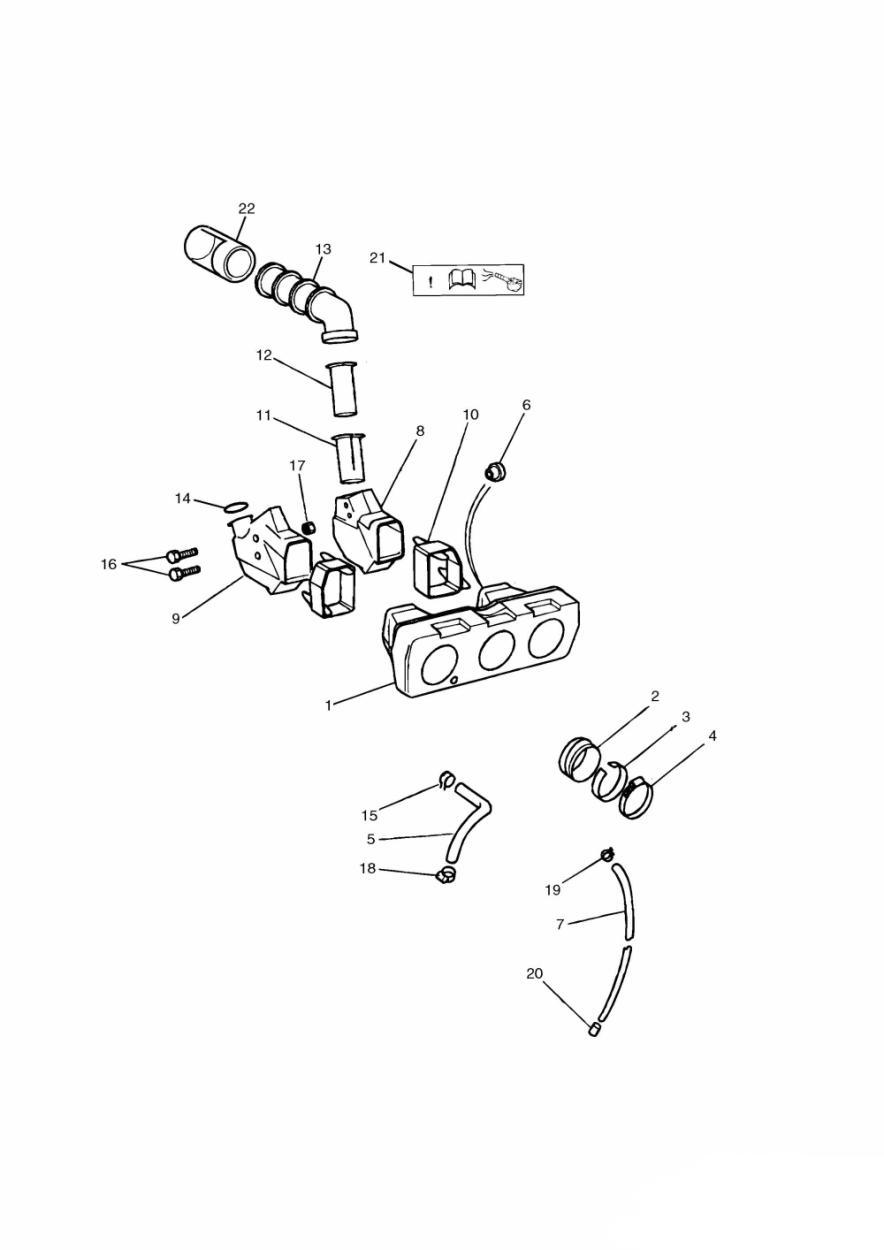

Airbox 3 Cylinder - US CAL
22 parts
Airbox 3 Cylinder - US CAL
27 parts
Carburettor Parts
Carburettor Parts 4 Cyl (Carb Assy 1240010-T0301)
24 parts
Carburettor Parts 4 Cyl (Carb Assy 1240137-T0301 & T1240610)
23 parts
Carburettor Parts 4 Cyl (Carb Assy 1240135-T0301)
24 parts

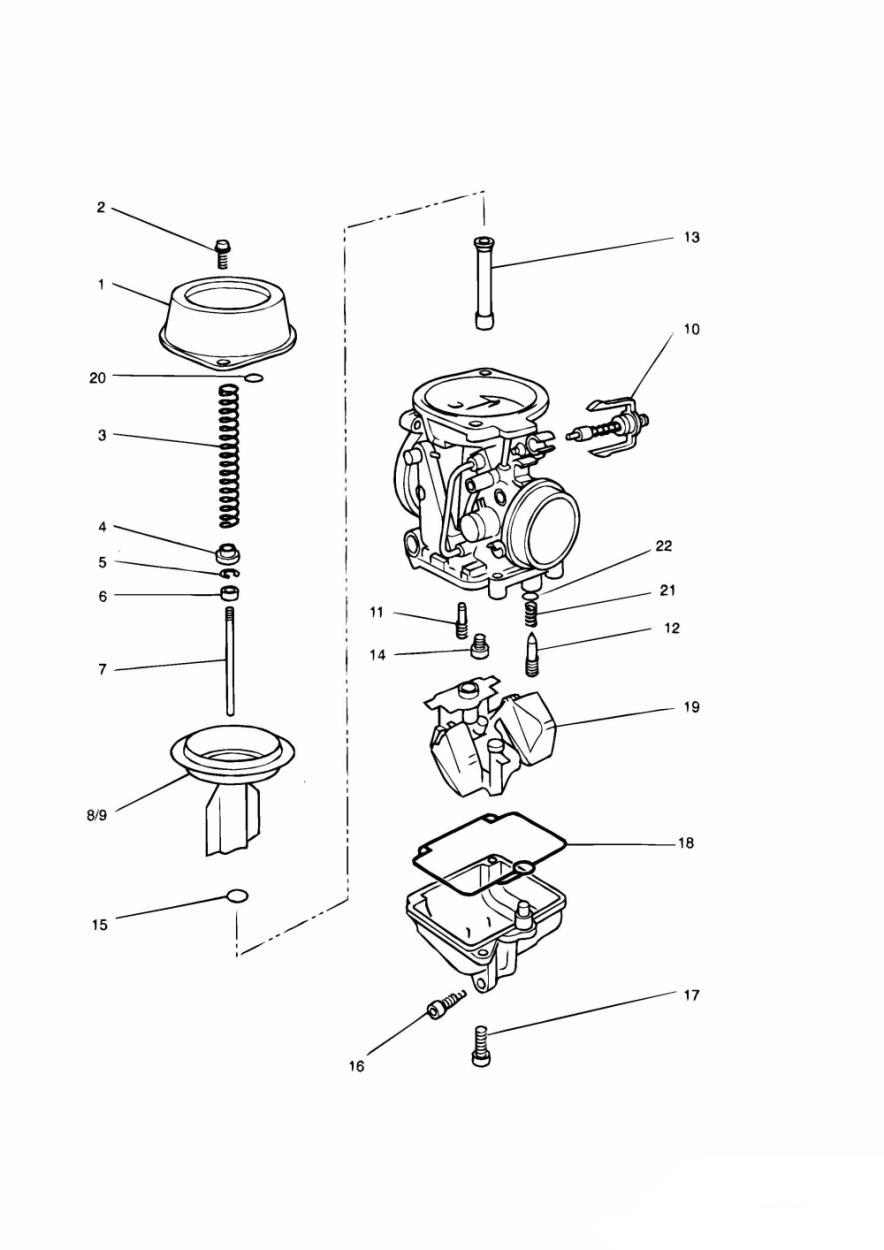

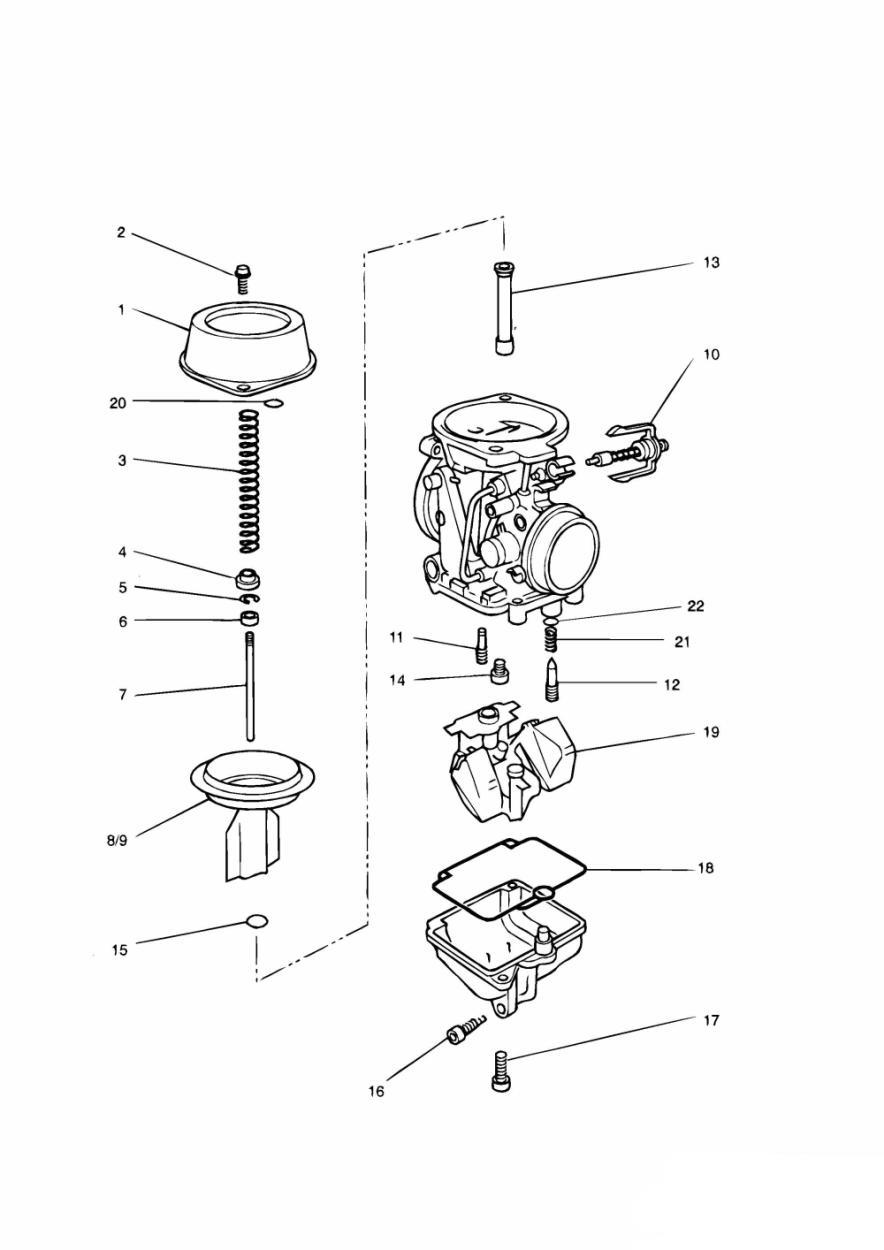

Carburettor Parts 4 Cyl (Carb Assy T1240360)
23 parts
Carburettor Parts 3 Cyl (Carb Assy T1240900 & T1240620)
23 parts
Carburettor Parts 4 Cyl (Carb Assy 1240137-T0301 & T1240610)
24 parts
Carburettor Parts (Carb Assy T1240625)
23 parts
Carburettor Parts 4 Cyl (Carb Assy T1240360)
24 parts

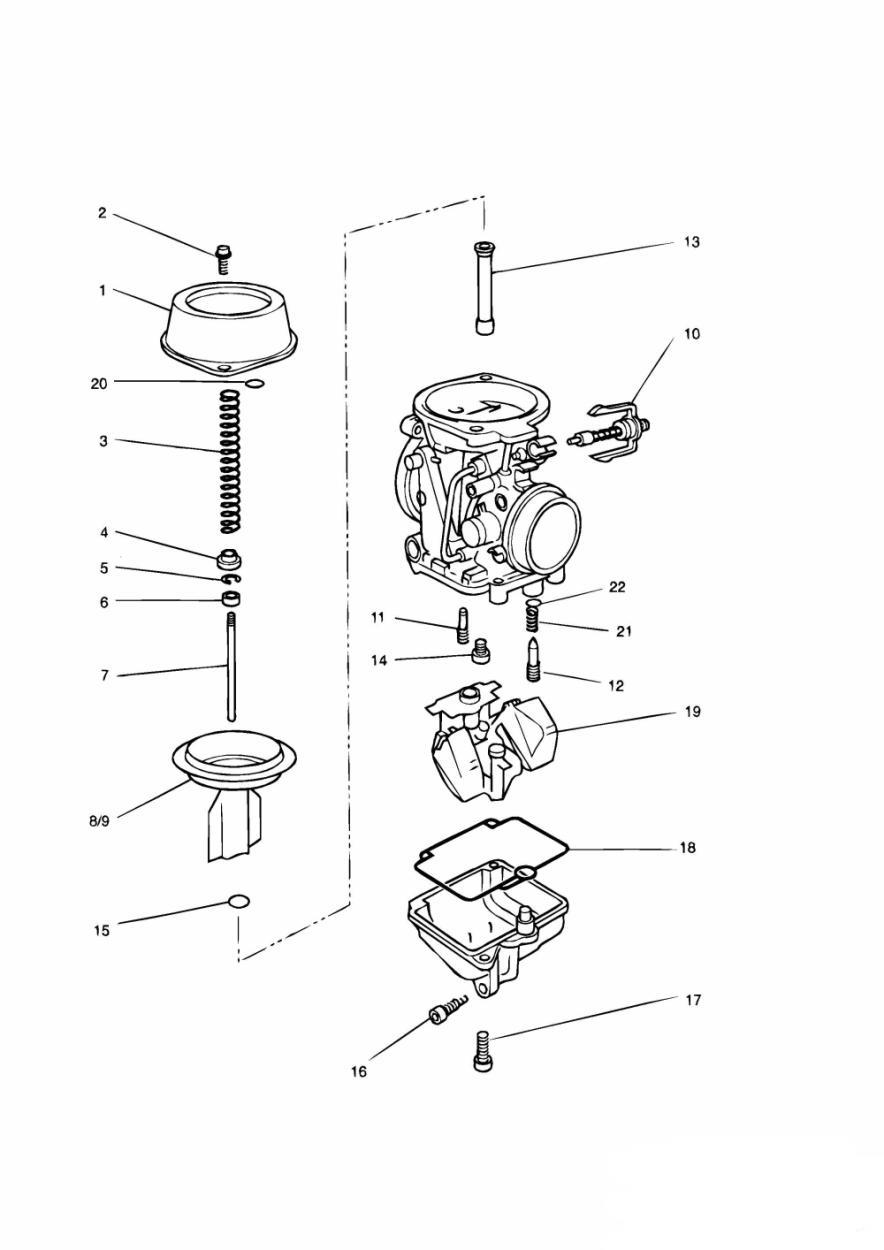

Carburettor Parts 3 Cyl (Carb assy T1240635)
23 parts
Carburettor Parts 4 Cyl (Carb assy 1240196-T0301)
24 parts
Carburettor Parts 3 Cyl (Carb assy 1240120-T0301)
23 parts

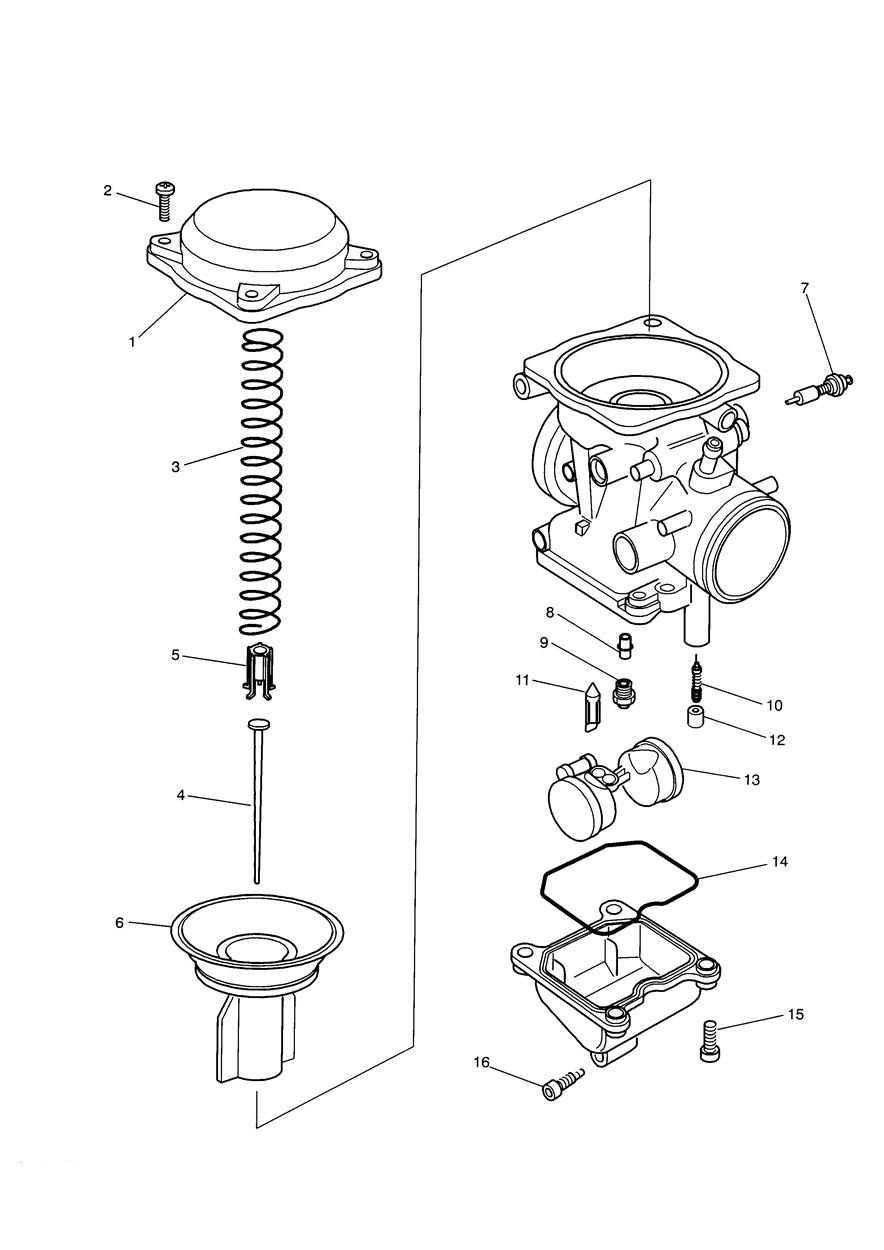

Carburettor Parts 3 Cyl (Carb Assy T1240650)
18 parts

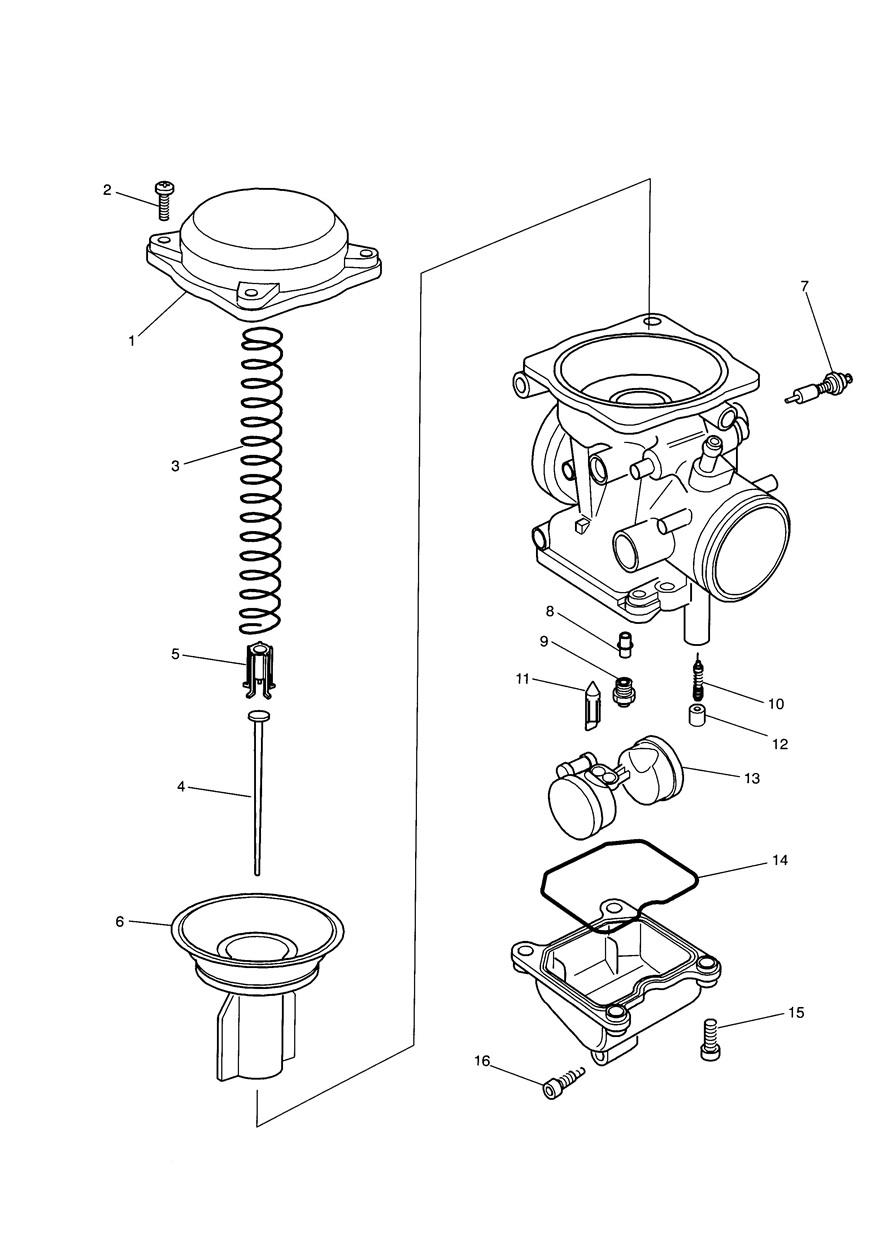

Carburettor Parts 3 Cyl (Carb Assy T1240660)
17 parts

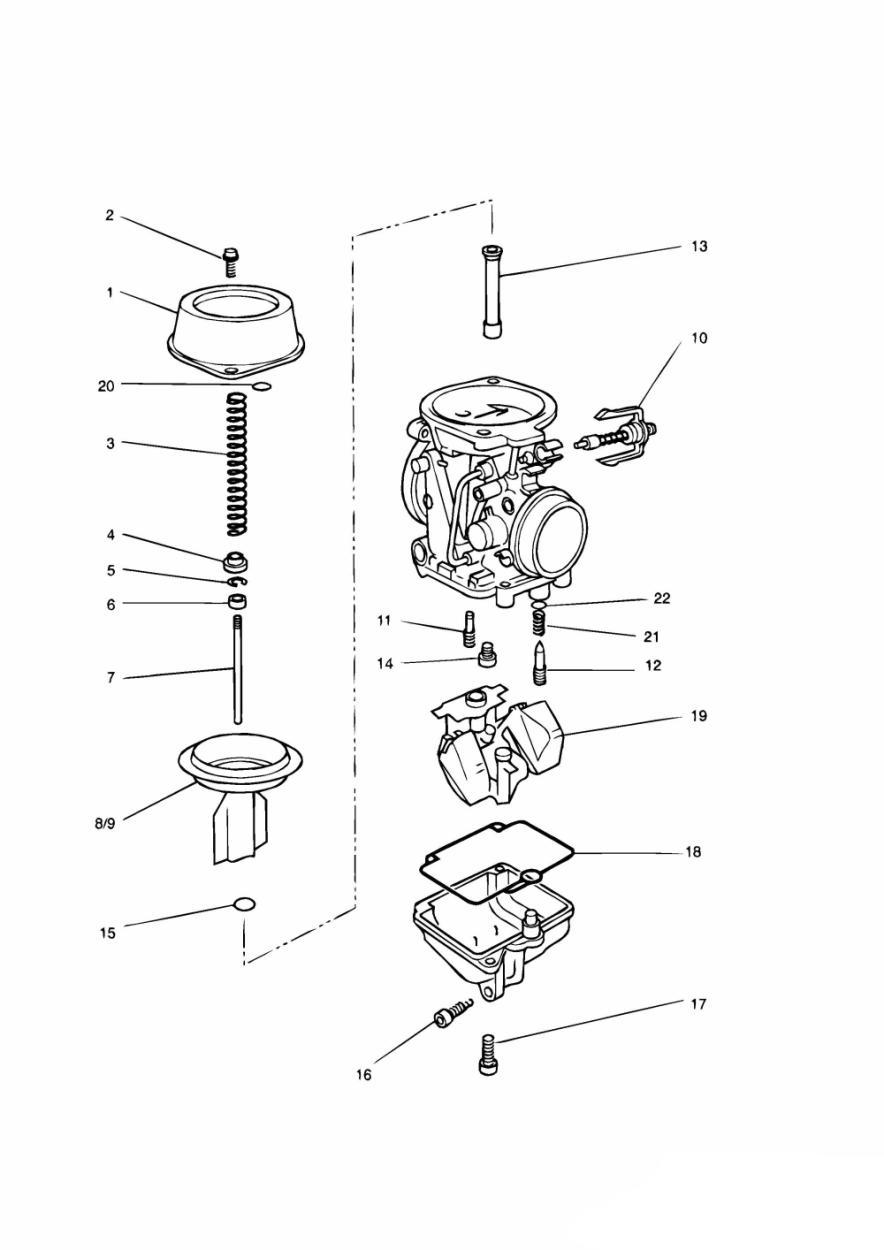

Carburettor Parts 3 Cyl (Carb Assy T1240900 & T1240620)
23 parts
Carburettor Parts 3 Cyl (Carb assy T1240625)
23 parts
Carburettor Parts 3 Cyl (Carb assy 1240198-T0301)
23 parts
Carburettors

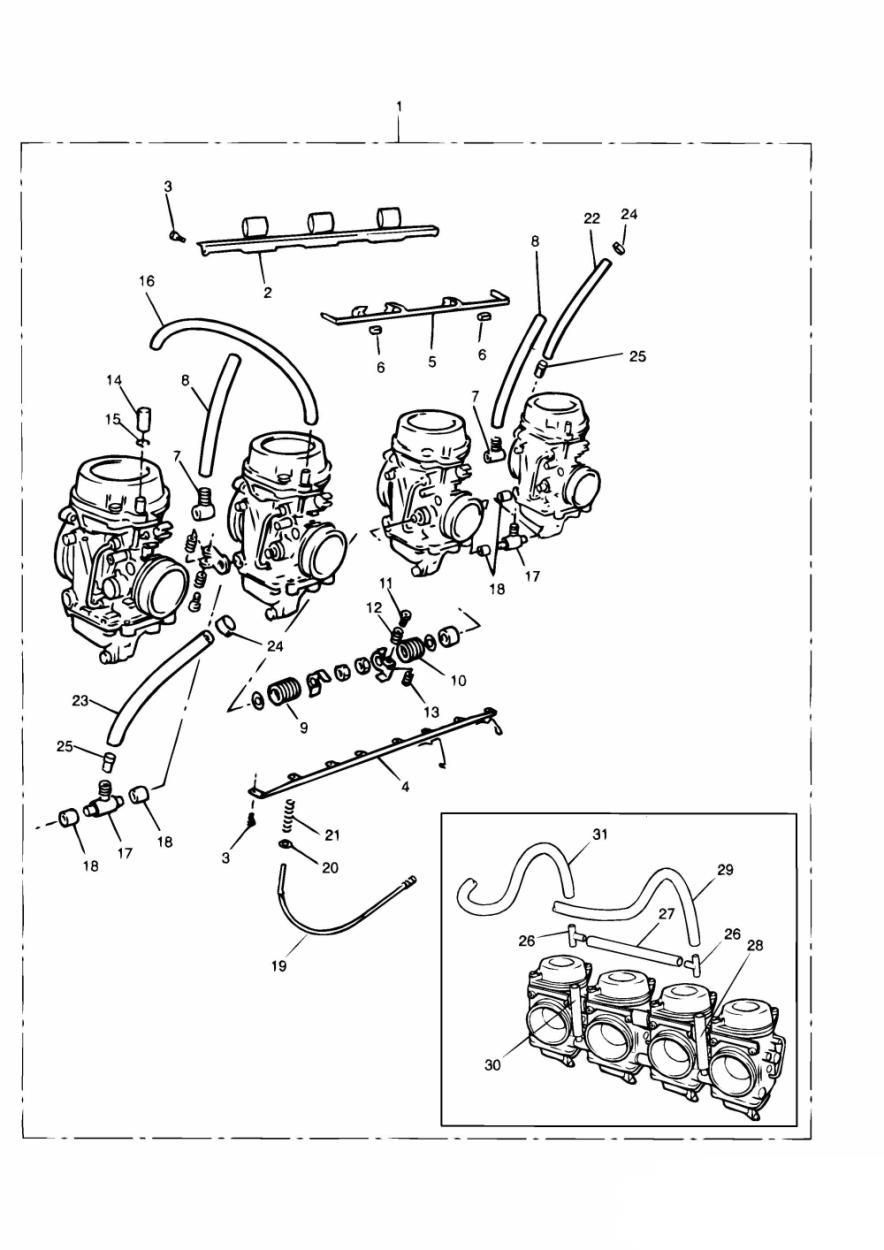

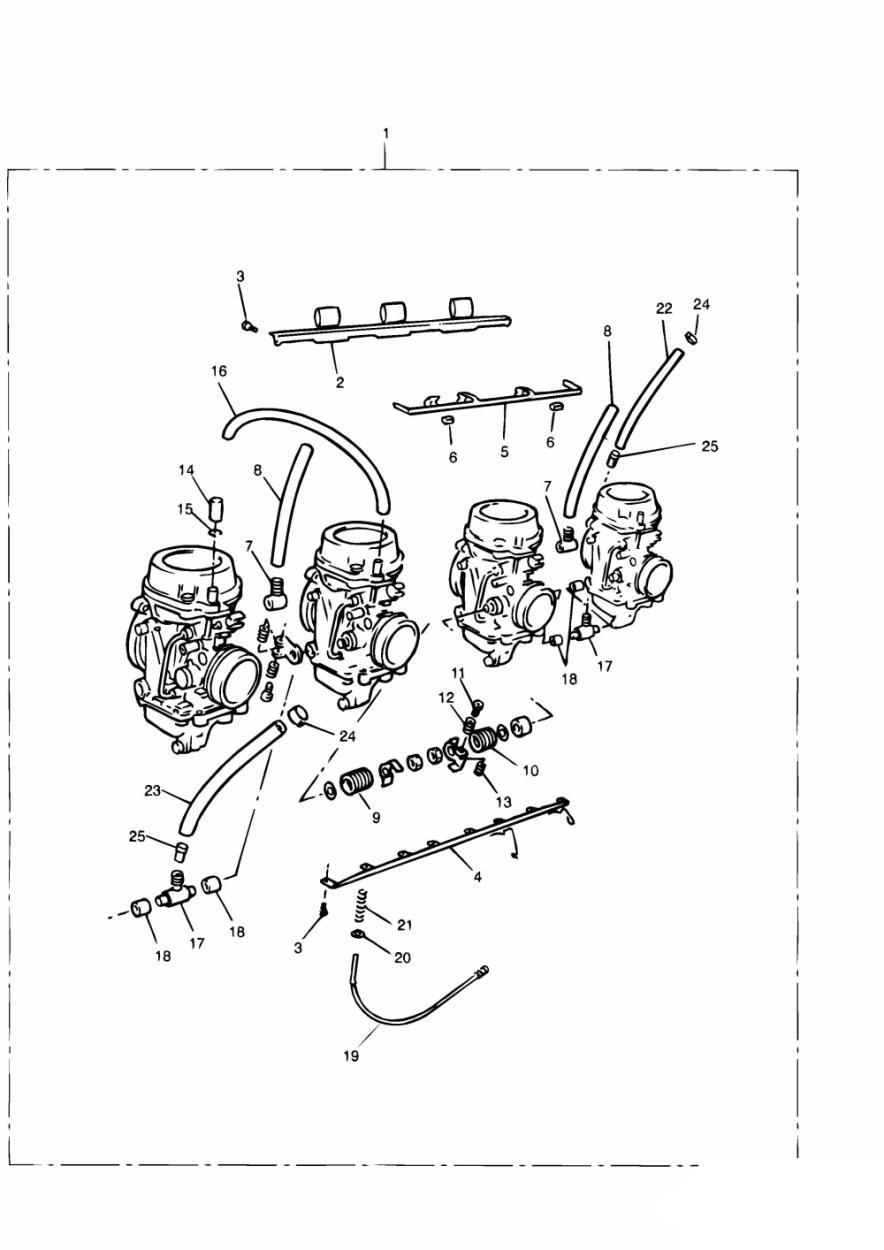

Carburettors 4 Cylinder Engines
33 parts
Carburettors 4 Cylinder Engines
31 parts

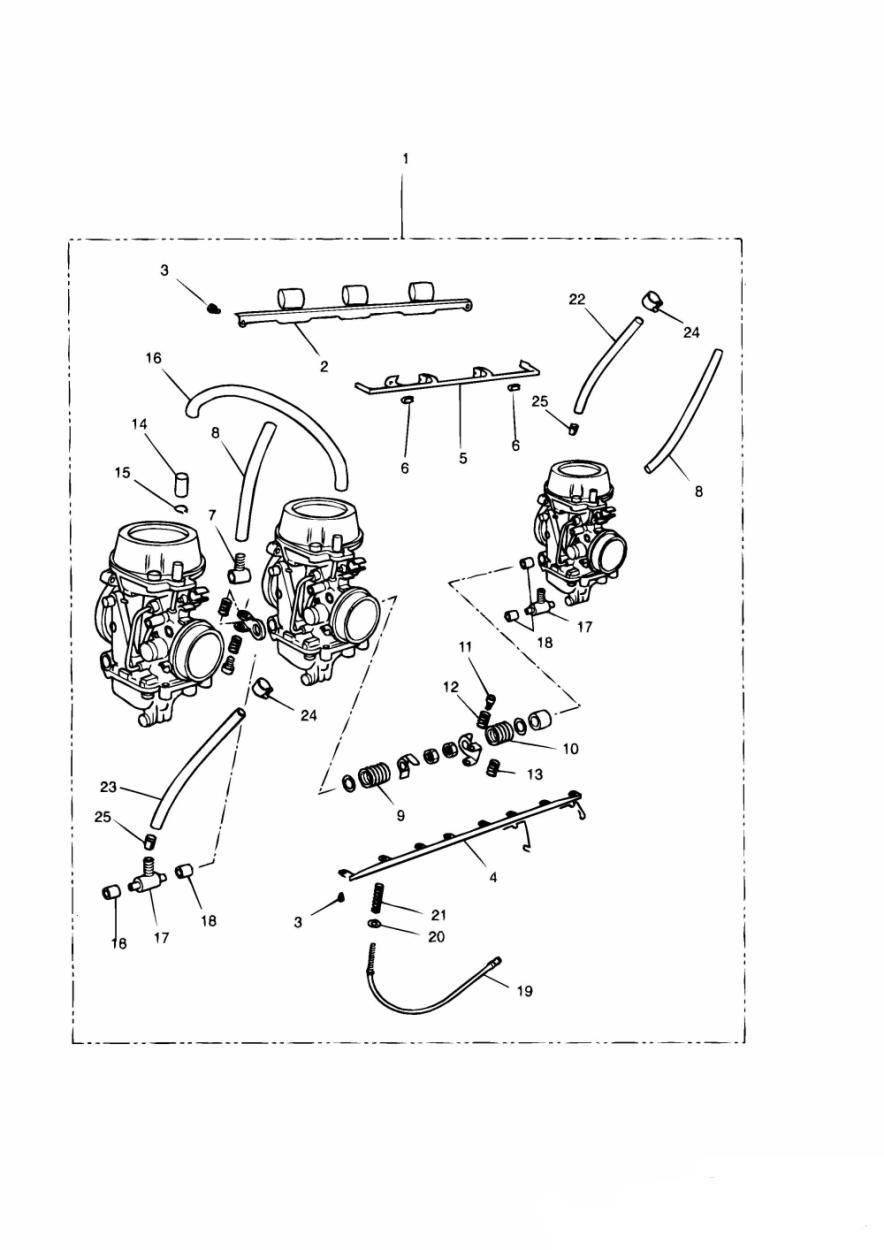

Carburettors 3 Cylinder All Markets Except US CAL
25 parts
Carburettors 3 Cylinder Engines
30 parts

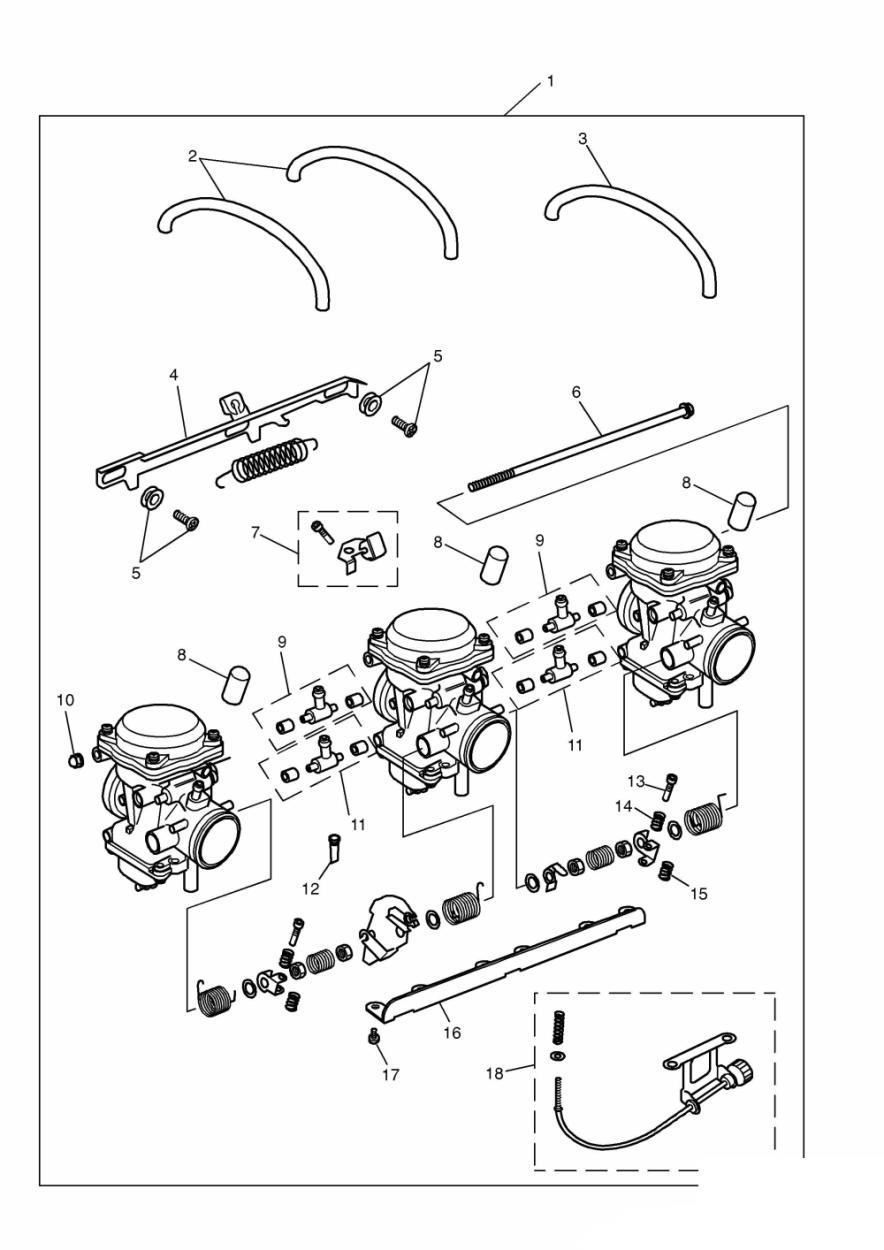

Carburettors 3 Cylinder All Markets Except US CAL
18 parts

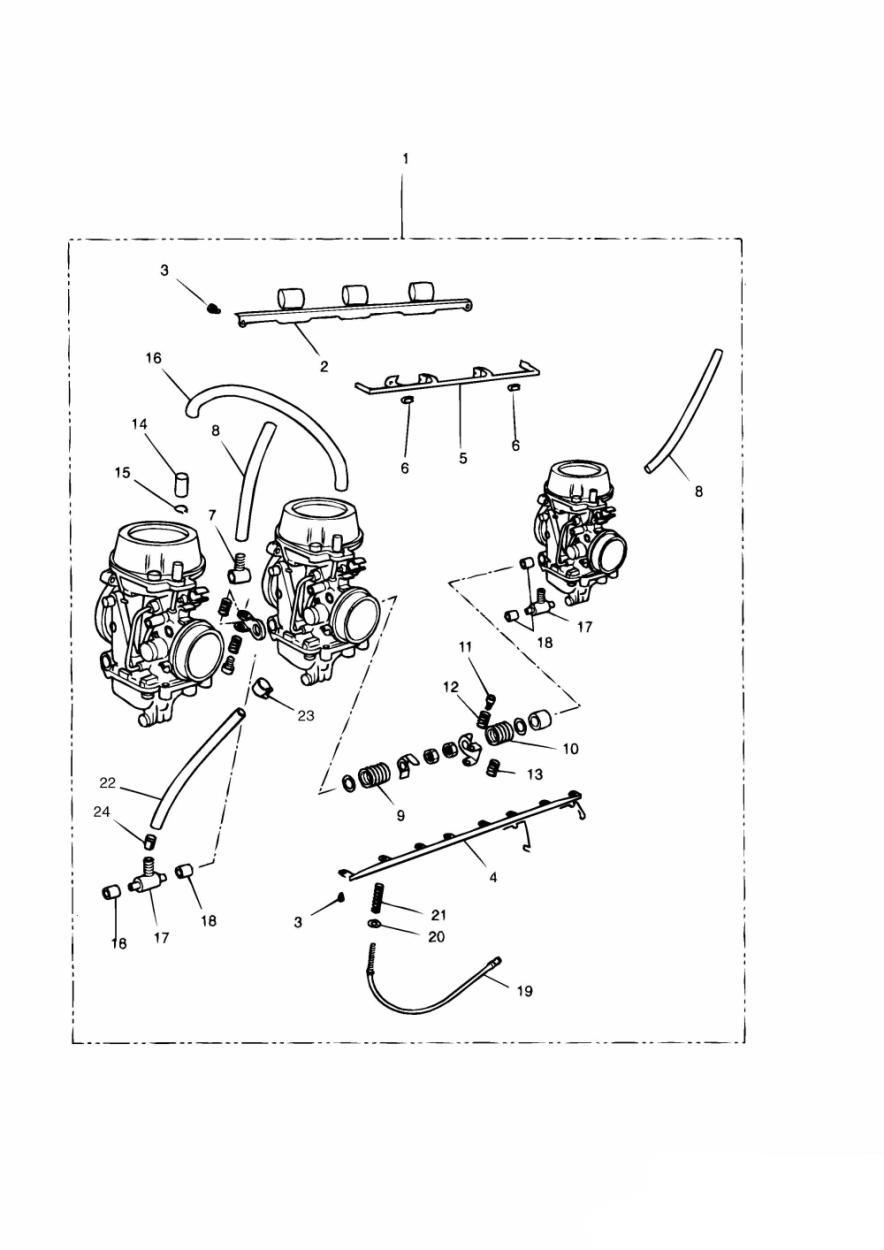

Carburettors 3 Cylinder US CAL
24 parts
Carburettors 3 Cylinder US CAL
19 parts
