Rear Swinging Arm & Rear Suspension
Triumph Trophy · 8 diagrams
8 exploded diagrams for the rear swinging arm & rear suspension of the Triumph Trophy, covering the Trophy. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

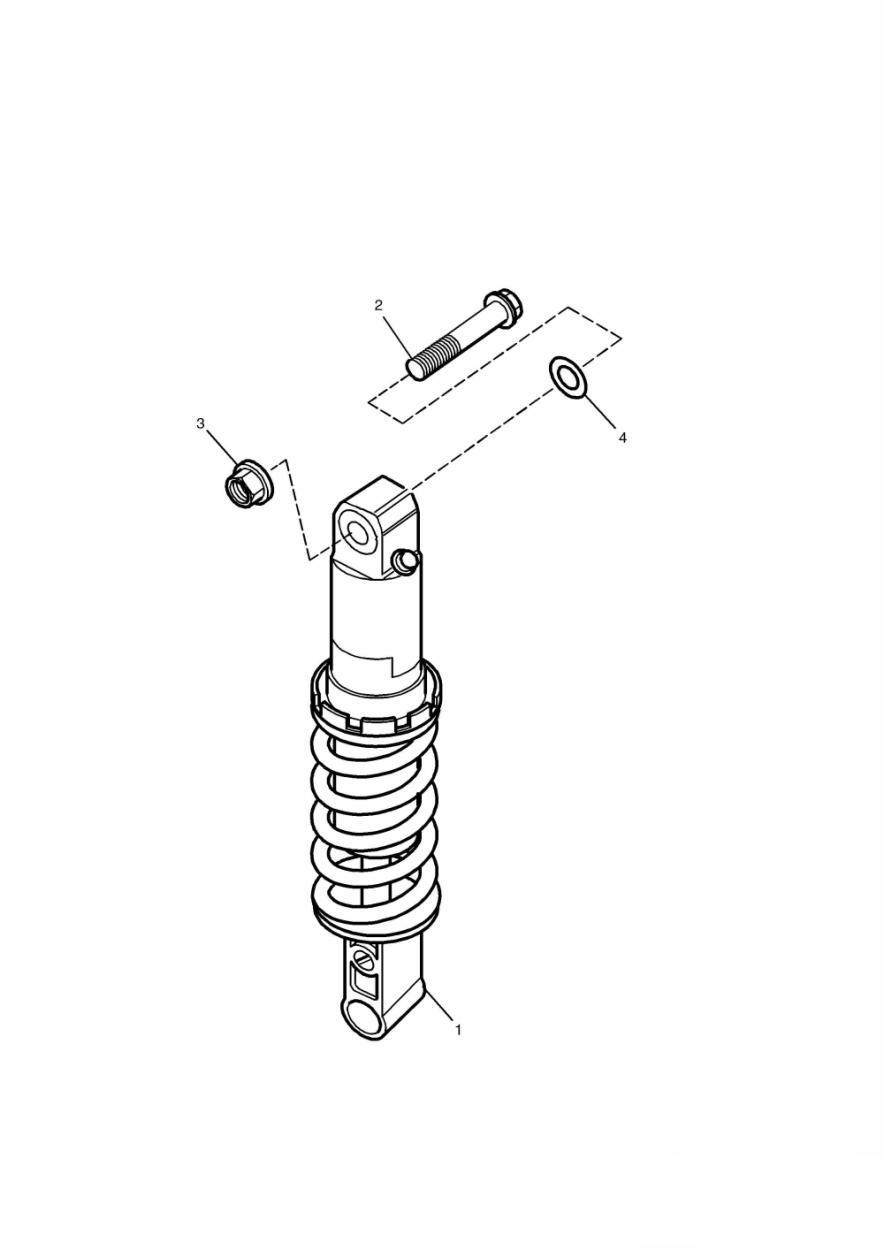

Rear Suspension Unit

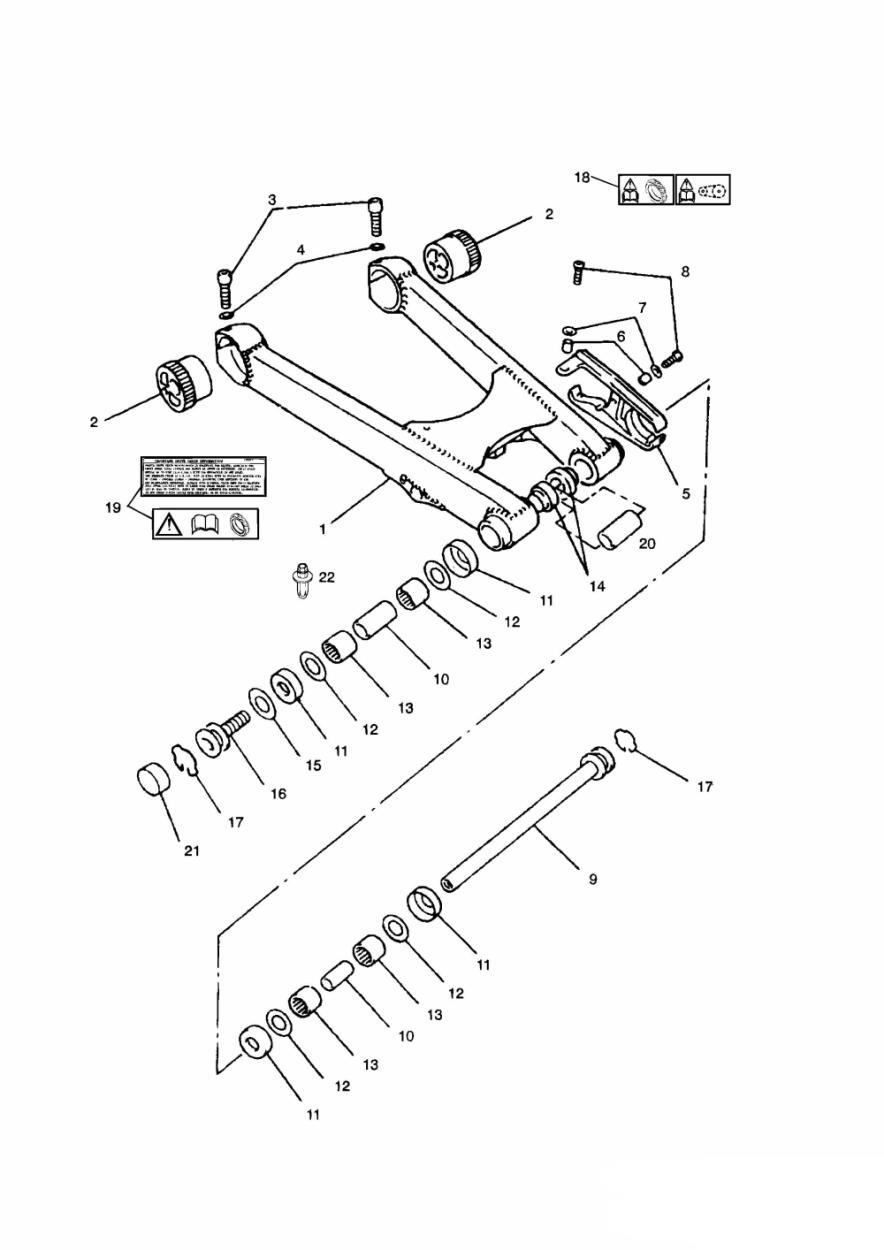

Swinging Arm
26 parts
VIN 29155 and lower

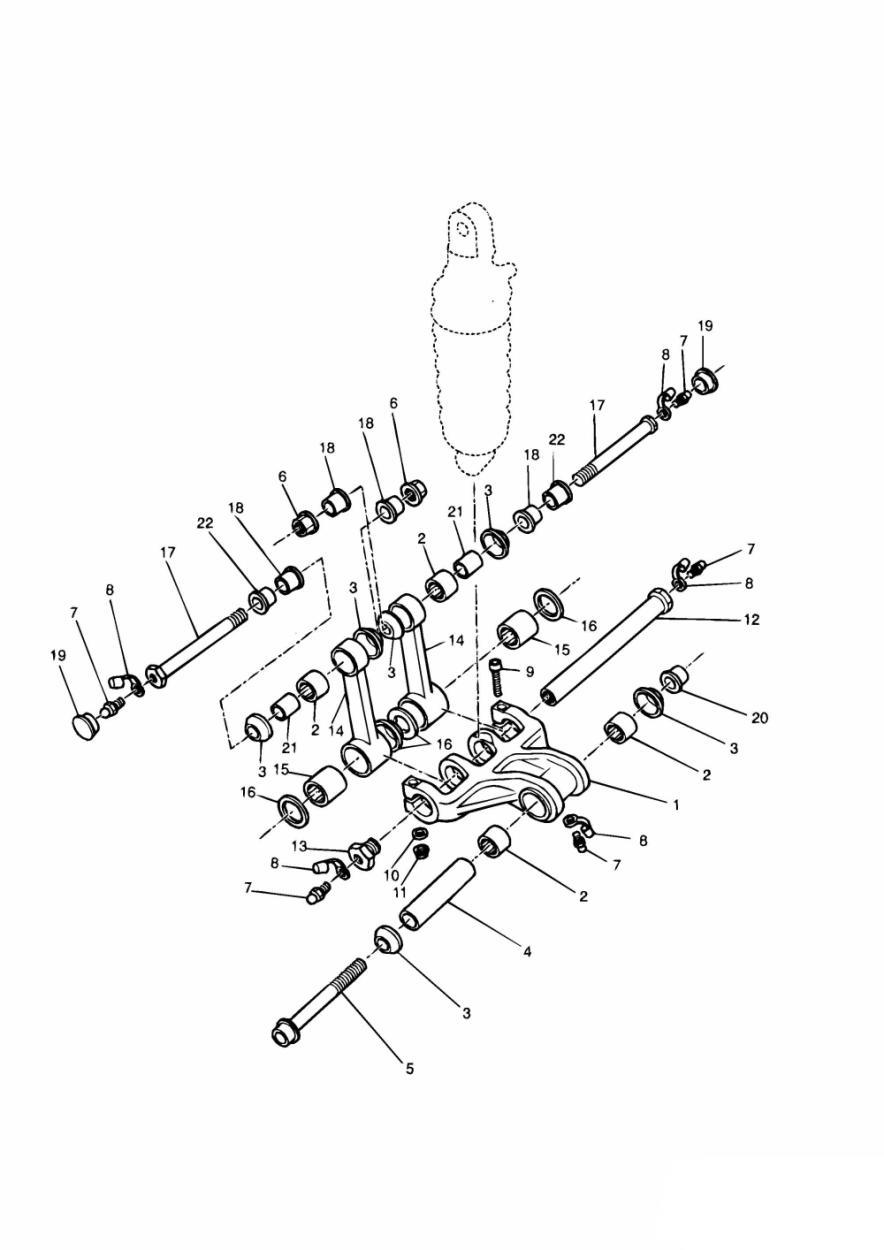

Rear Suspension Linkage
22 parts
VIN 29155 and lower
Rear Suspension Linkage
24 parts
VIN 29156 and higher

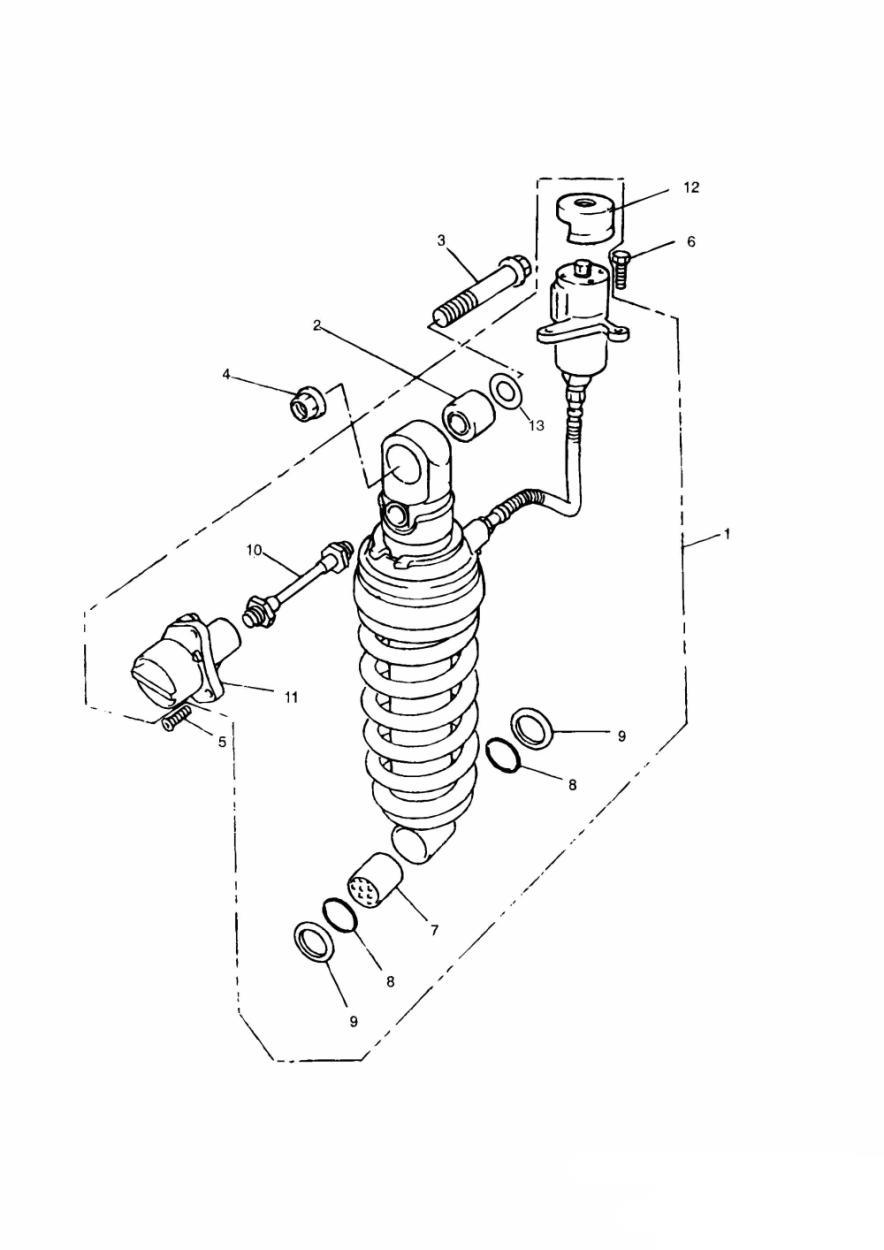

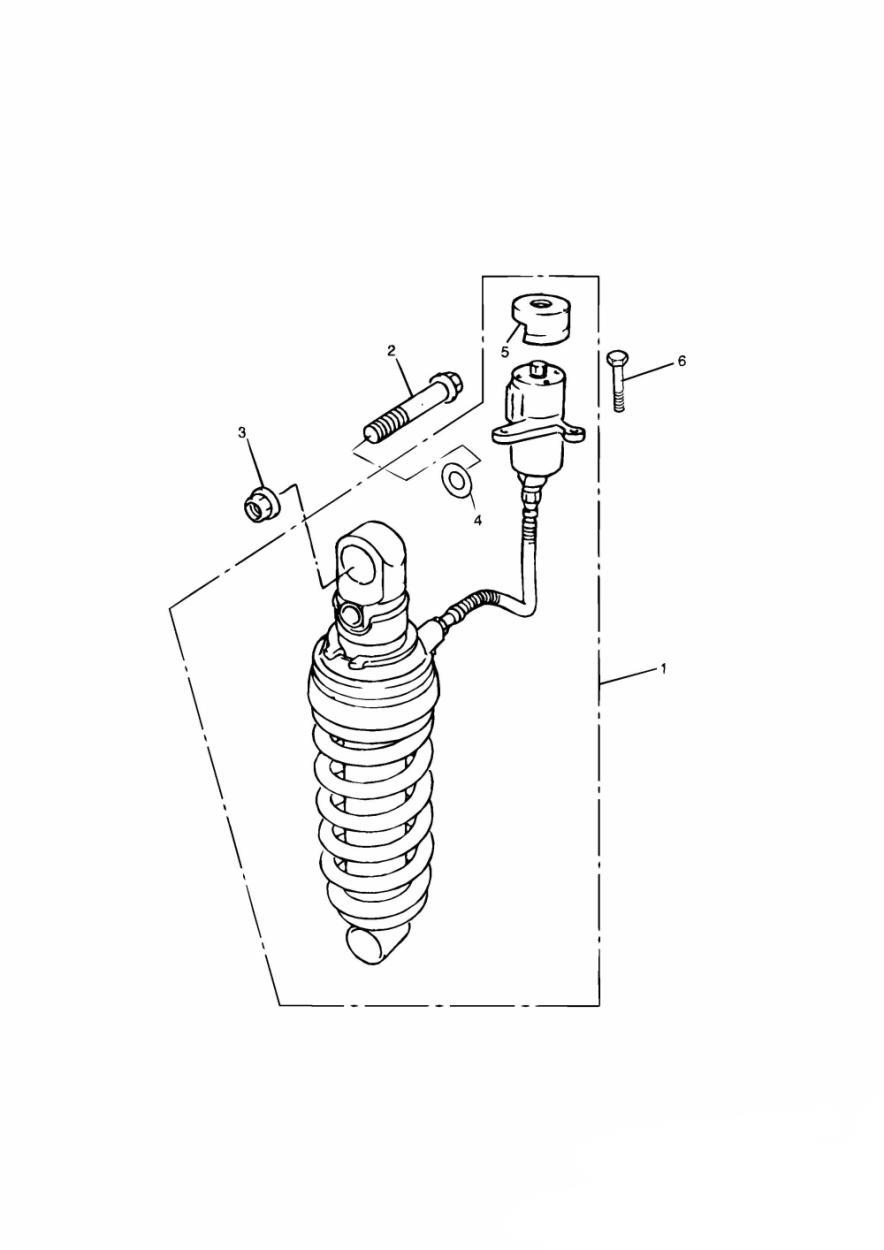

Rear Suspension Unit
16 parts
VIN 29155 and lower

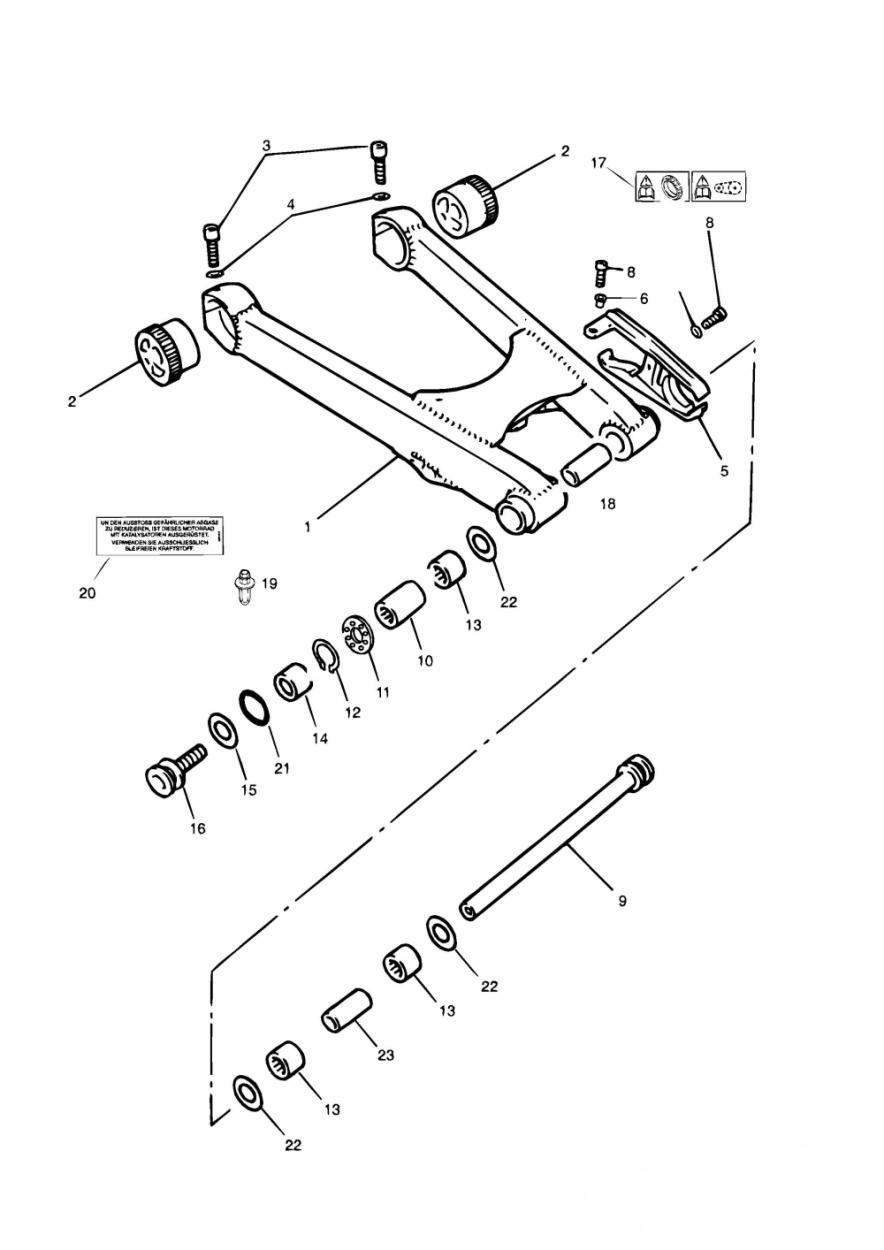

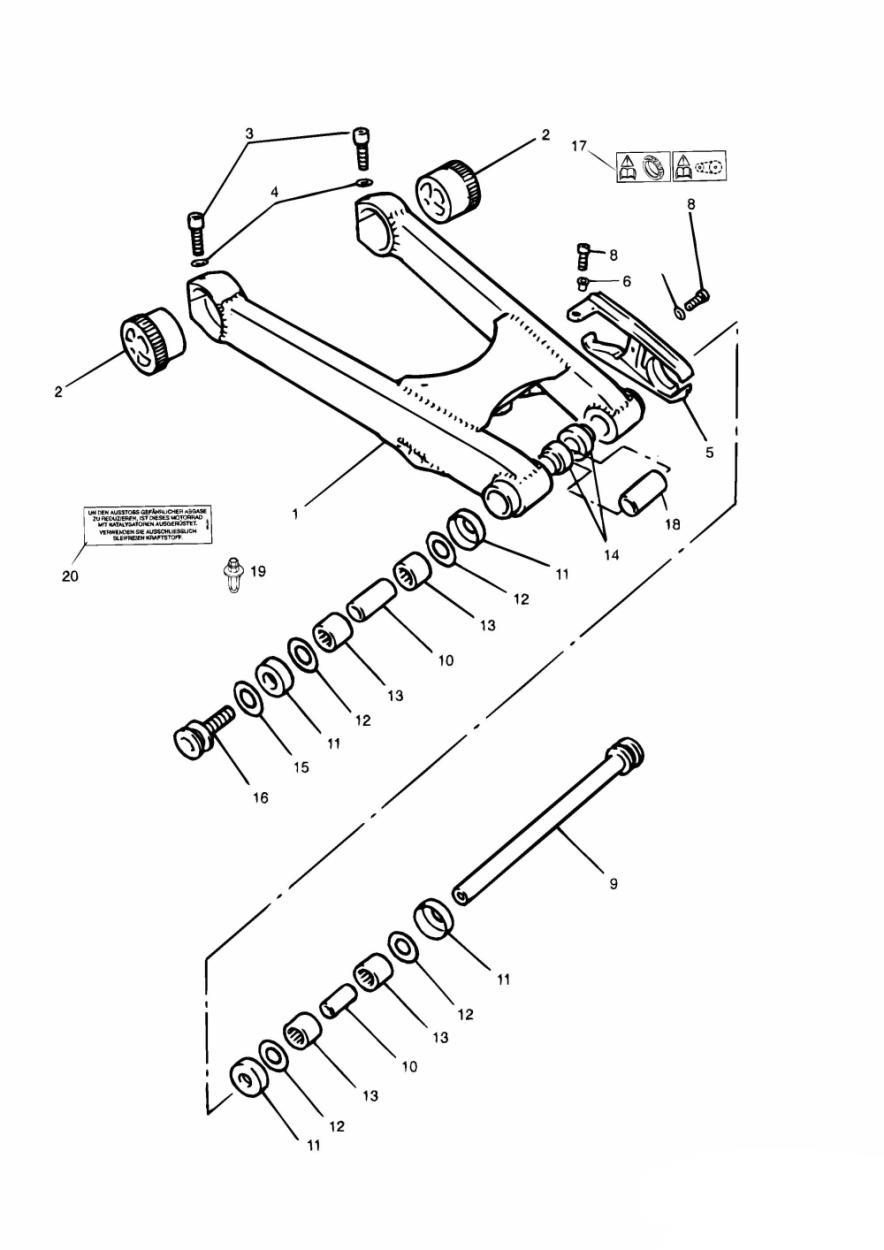

Swinging Arm
25 parts you can order online
Every part below appears in Triumph’s Rear Swinging Arm & Rear Suspension diagrams for the Trophy and is priced and orderable online. Open a part to see what it fits and to buy it.
Rear Suspension Unit VIN 55071 and lower
T3334640 Screw, HHF, M12 x 60
$5.35
AvailableT3350234 Locknut, Flgd, M12 x 1.25
$5.62
AvailableT3550614 Washer, 12 x 23 x 2
$1.99
AvailableSwinging Arm VIN 29155 and lower
T3551283 Washer, M10, 10.5x18x1.6, Slv
$1.99
AvailableT3555004 Washer, 6.4 x 14 x 1.6
Low stock at Triumph
$1.99
Limited availabilityT3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc
$1.99
In stock in BreaT3800014 Roller bearing
Backordered at Triumph · expected Nov 20
$13.26
On backorderT3555032 Washer, 17 x 30 x 3
Low stock at Triumph
$2.93
Limited availability3500010-T0301 Retaining ring
$2.09
AvailableT3900092 Label, Chain & Tyres
$5.27
AvailableSwinging Arm VIN 102931 and lower
Rear Suspension Linkage VIN 29155 and lower
T2057245 Drag link
$153.14
Available3800025-T0301 Needle bearing
$16.81
Available2058001-T0301 Seal
$11.46
AvailableT3334680 Bolt, HHF, M12 x 119, Slv
$7.71
AvailableT3350003 Locknut, Flanged, M6 x 1
$1.99
AvailableT2057935 Spindle, Linkage
$87.14
Available3800024-T0301 Needle bearing
$34.40
Available2059445-T0301 Sleeve
$6.76
AvailableSwinging Arm VIN 102932 and higher
T3800045 Ball bearing
$13.11
AvailableT3500029 Circlip
$3.08
AvailableT3600171 Seal
$10.49
AvailableT3600170 Seal, SD 25 32 04
Backordered at Triumph · expected Nov 6
$12.51
On backorderT2056991 Sleeve
$22.44
Available
