Braking System
Triumph TT600 · 4 diagrams
4 exploded diagrams for the braking system of the Triumph TT600, covering the TT600. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
Front Brake Master Cylinder
22 parts
Rear Brake Disc and Caliper
10 parts
Front Brake Caliper and Disc
11 parts
Rear Brake Master Cylinder
22 parts
41 parts you can order online
Every part below appears in Triumph’s Braking System diagrams for the TT600 and is priced and orderable online. Open a part to see what it fits and to buy it.
Most of these parts are shared with the Speed Four book. 2 parts are specific to the TT600.

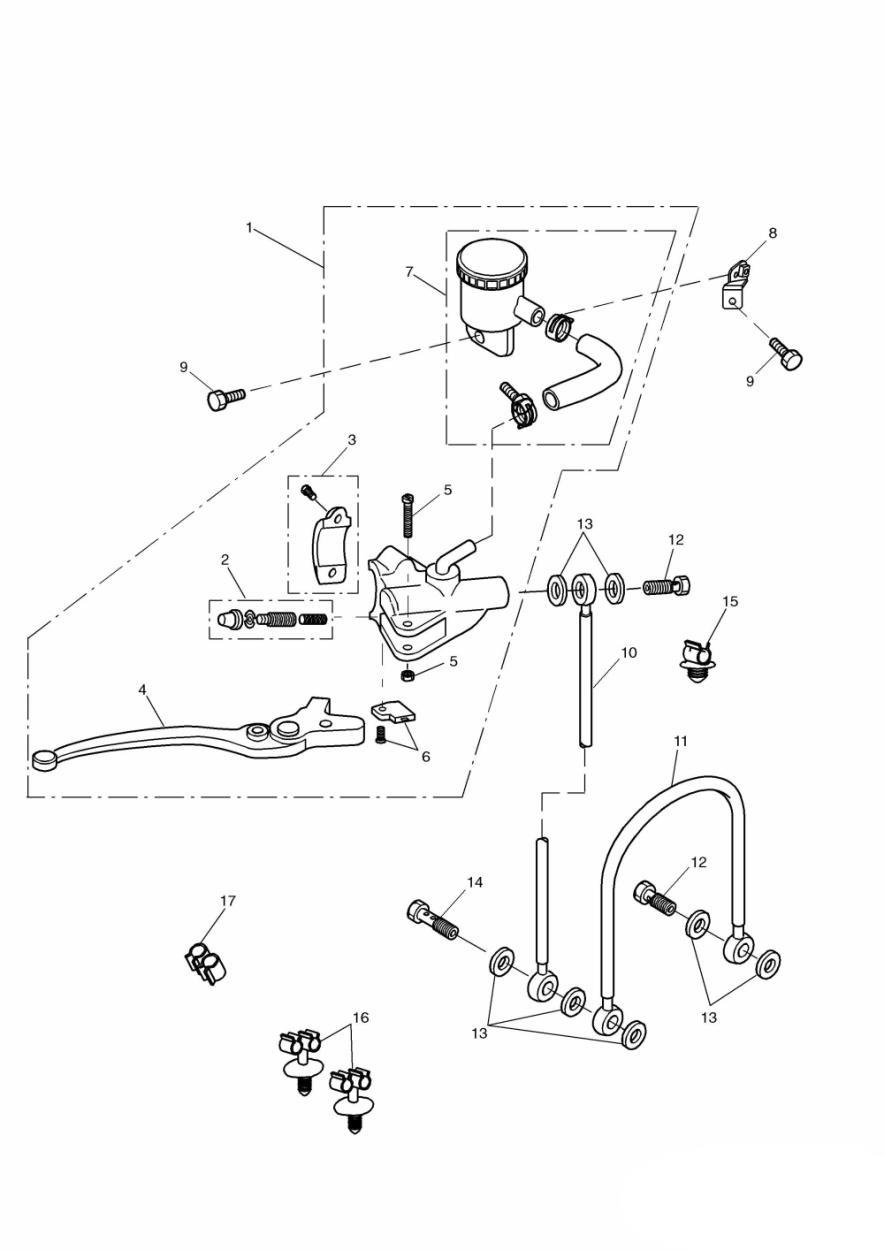

Front Brake Master Cylinder
T2020003 Piston Set, M/Cyl, 14.0
$52.81
AvailableT2025403 Holder Set
$12.51
AvailableT2025441 Lever Assy
Low stock at Triumph
$81.41
Limited availabilityT2020158 Lever, Bolt, Front M/Cyl
$12.56
AvailableT2021217 Switch Set
$22.62
AvailableT2025307 Reservoir assy
$37.07
AvailableT2020772 Brake hose
$73.03
AvailableT3250125 Bolt, Banjo, M10 x 21
$6.50
AvailableT3550229 Washer, 15.2 x 10 x 1, Plated
$1.99
In stock in BreaT3700233 Clip, Brake Hose
$5.45
AvailableT3700061 Clip, Cable Double
$4.91

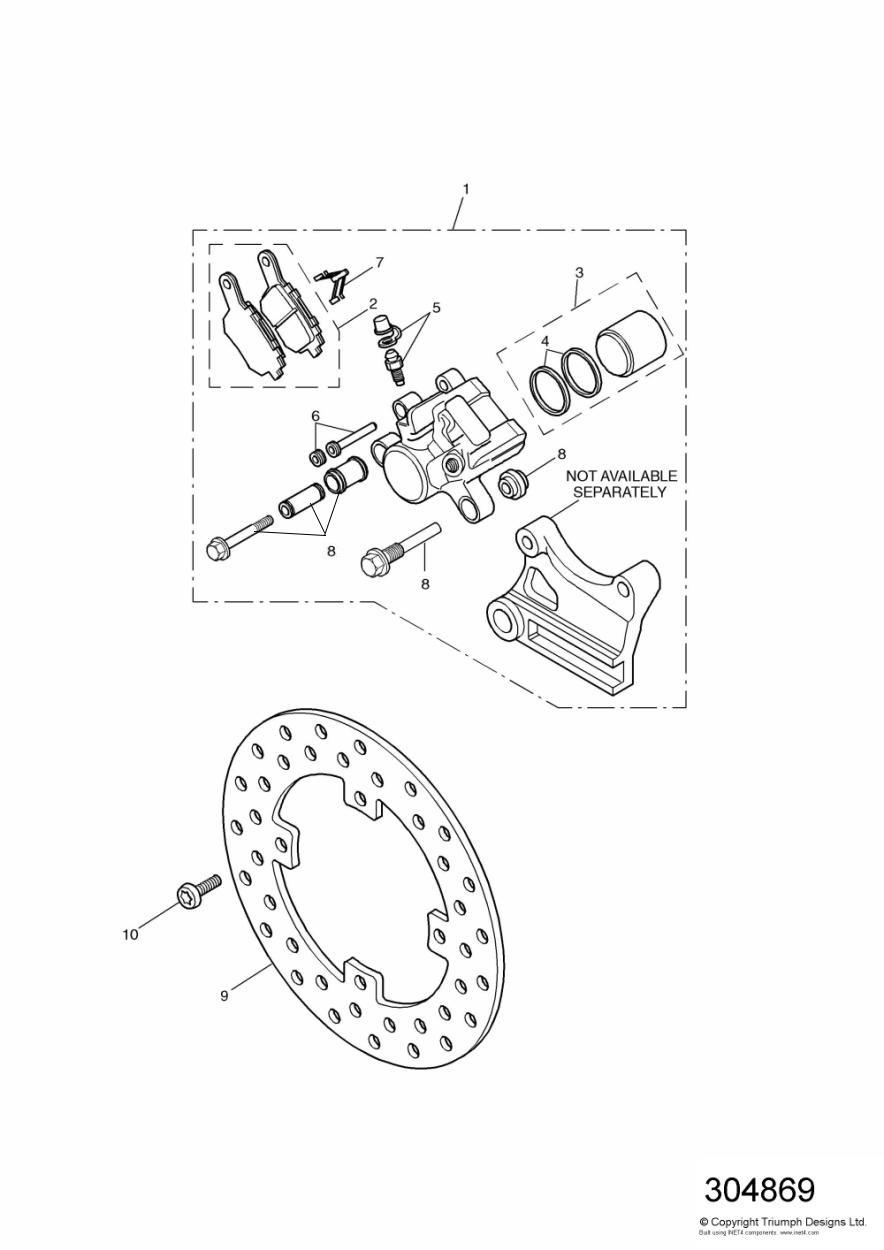

AvailableRear Brake Disc and Caliper
T2020601 Caliper assembly
Backordered at Triumph · we’ll confirm the ship date after you order
$721.76
On backorderT2020602 Brake Pad Set, x 2 Pads
$61.48
In stock in BreaT2020928 Piston Set
Low stock at Triumph
$52.81
Limited availabilityT2020931 Seal Set
$52.81
AvailableT2020014 Bleed Screw
$14.14
AvailableT2020933 Hanger Pin Set
Backordered at Triumph · expected Nov 6
$17.94
On backorderT2020934 Pad Spring
$19.56
AvailableT2020935 Mount Pin Set
Low stock at Triumph
$17.94
Limited availabilityT2025200 Disc, Rear
$222.67

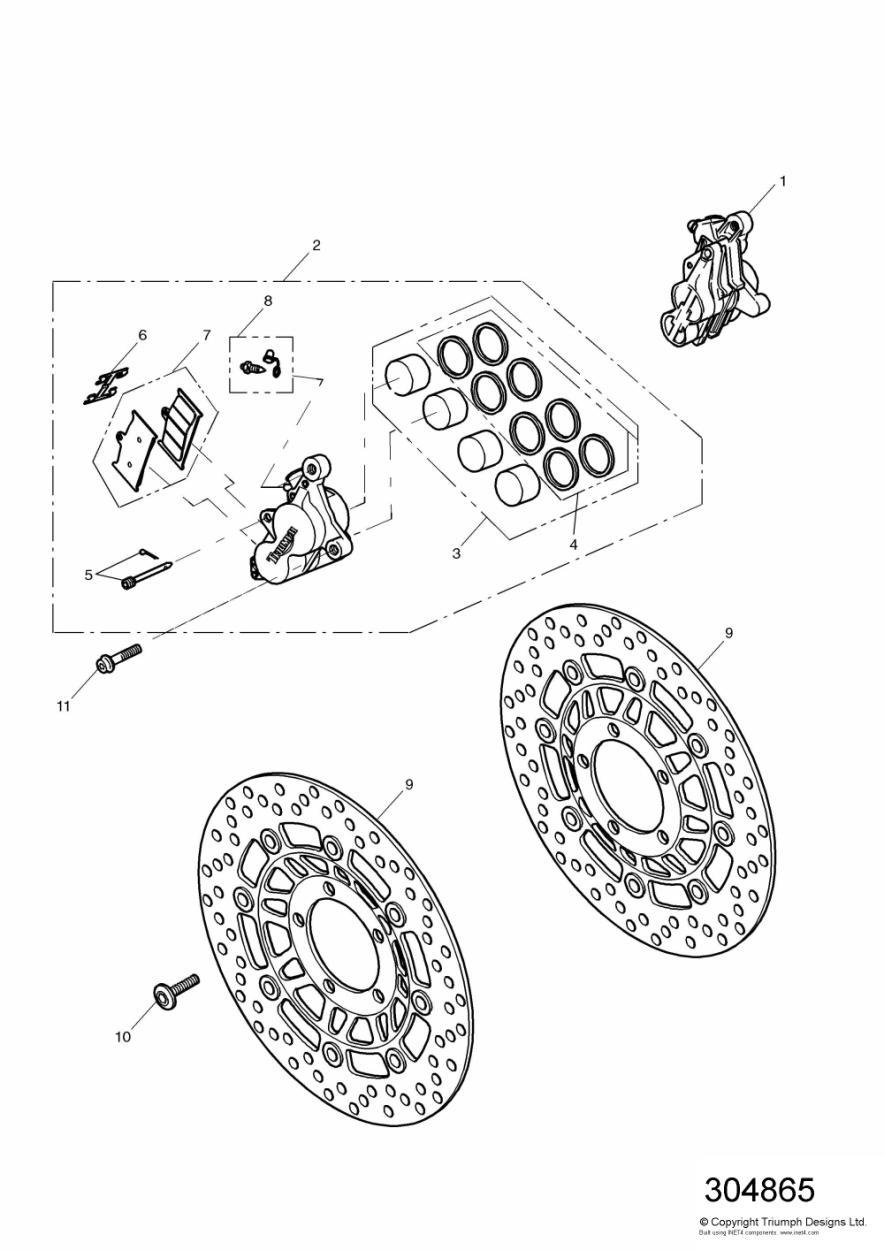

AvailableFront Brake Caliper and Disc
T2020244 Piston set
$105.63
AvailableT2020243 Seal Kit
$105.63
AvailableT2020247 Retainer
$15.58
AvailableT2020258 Pad Spring Set
Low stock at Triumph
$19.56
Limited availabilityT2020245 Brake Pad Set, x 4 Pads
Low stock at Triumph
$146.82
Limited availabilityT2021020 Disc front
Backordered at Triumph · expected Oct 30
$350.10
On backorderT3151033 Bolt, HHF, M10 x 30, Slv
Low stock at Triumph
$6.33

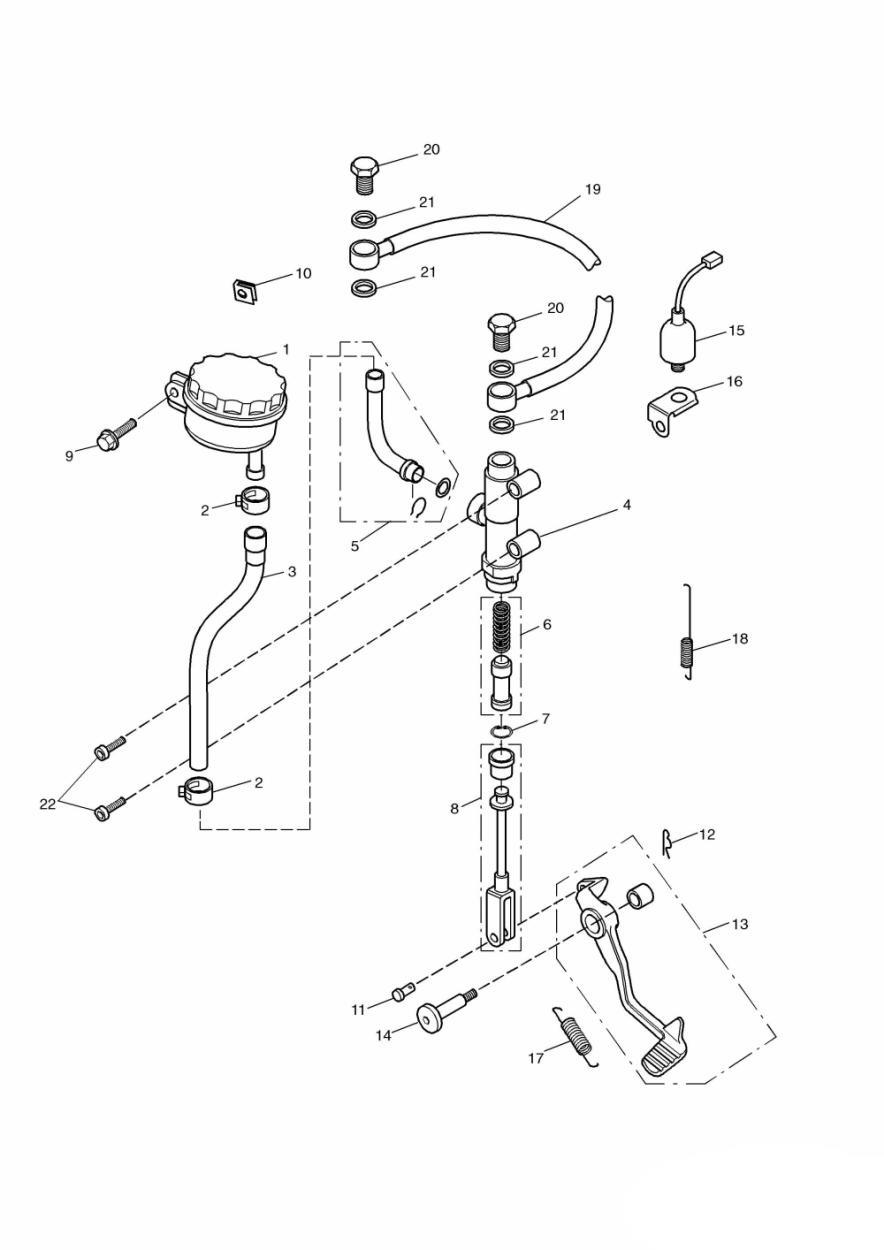

Limited availabilityRear Brake Master Cylinder
T2025306 Reservoir, M/Cyl, Rear
$37.84
Available2020440-T0301 Clip, Reservoir, M/Cyl, Rear
$2.64
Available2020476-T0301 Connector Set, M/Cyl Rear
$19.97
AvailableT2020031 Piston Set
$58.06
AvailableT2020472 Circlip, M'cyl, Rear
$2.53
AvailableT2020477 M/Cyl, Pushrod Assy
$32.73
AvailableT3331234 Screw, Torx, P/H, M6 x 20, Slv
$4.91
In stock in BreaT3351021 Nut, Captive, M6, Slv
$1.99
AvailableT3000301 Pin, Clevis, 8 x 13.7
$3.98
AvailableT3000302 Clip, 8mm, Clevis Pin
$5.62
AvailableT2020139 Brake ped assy
Backordered at Triumph · we’ll confirm the ship date after you order
$132.02
On backorderT3331614 Bolt, Shld, M8, Slv Enc
$9.32
AvailableT2020897 Spring, Brake Lever Return
$2.09
AvailableT3050321 Screw, Cap/Hd, M8 x 20, Slv
$6.87
Available
