Electrical System
Triumph TT600 · 9 diagrams
9 exploded diagrams for the electrical system of the Triumph TT600, covering the TT600. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

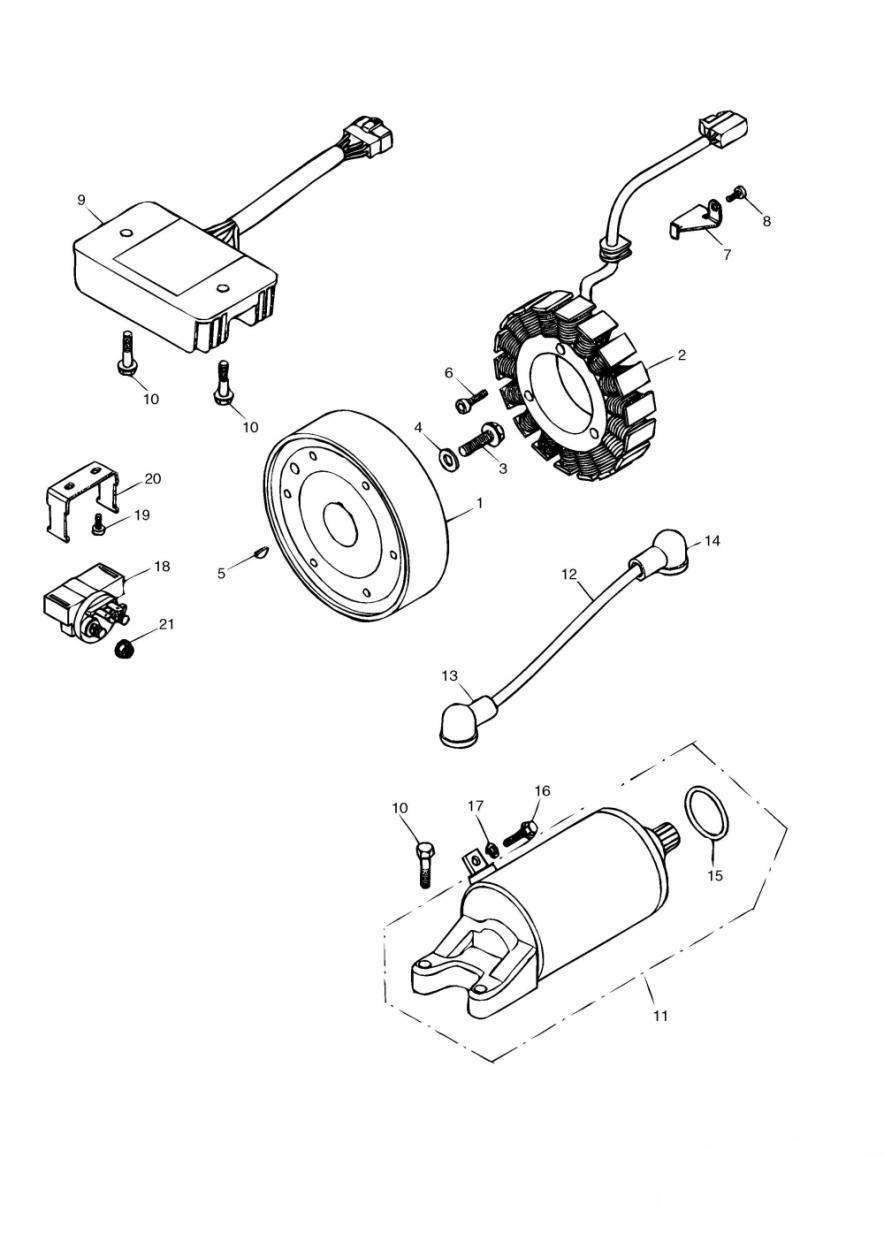

Alternator/Starter
21 parts
VIN 171121 and higher

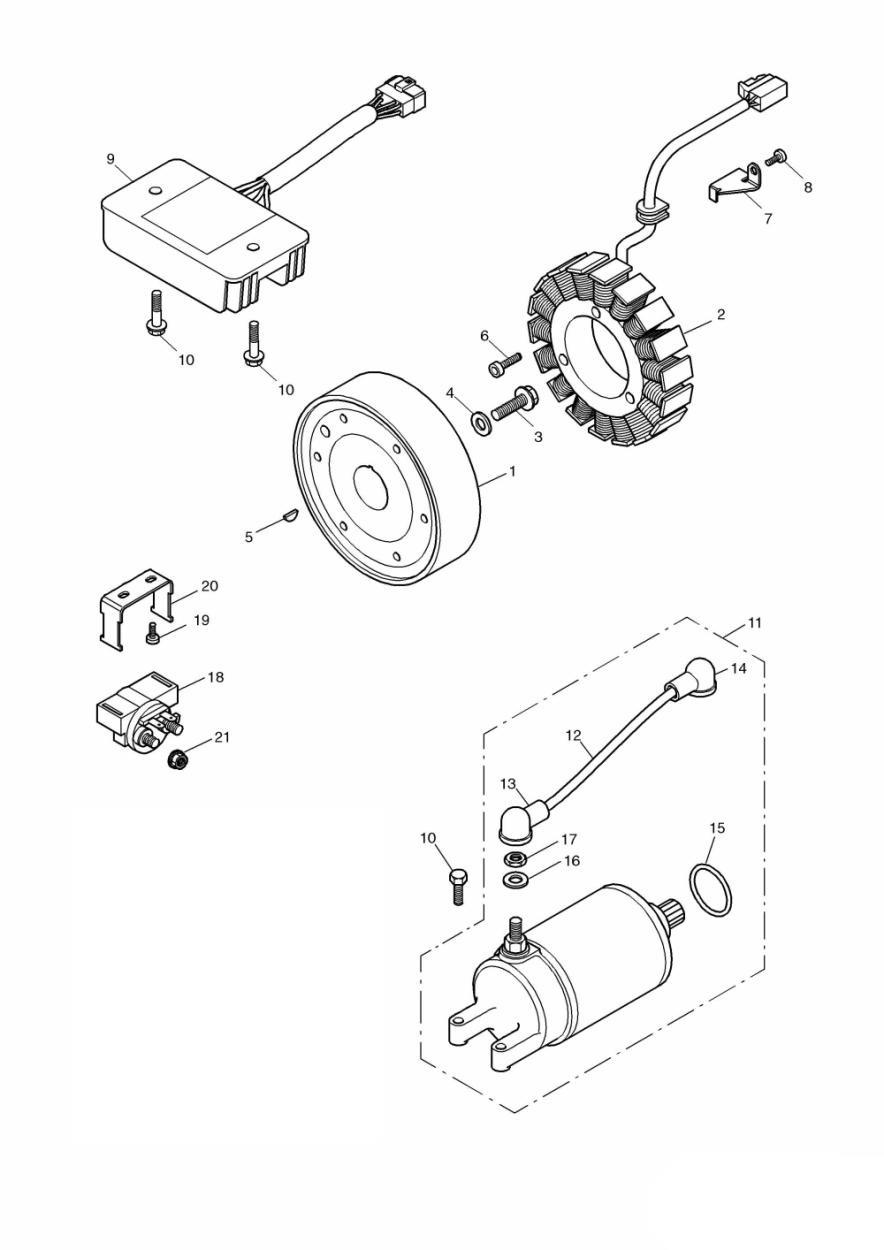

Alternator/Starter
24 parts
VIN 171120 and lower

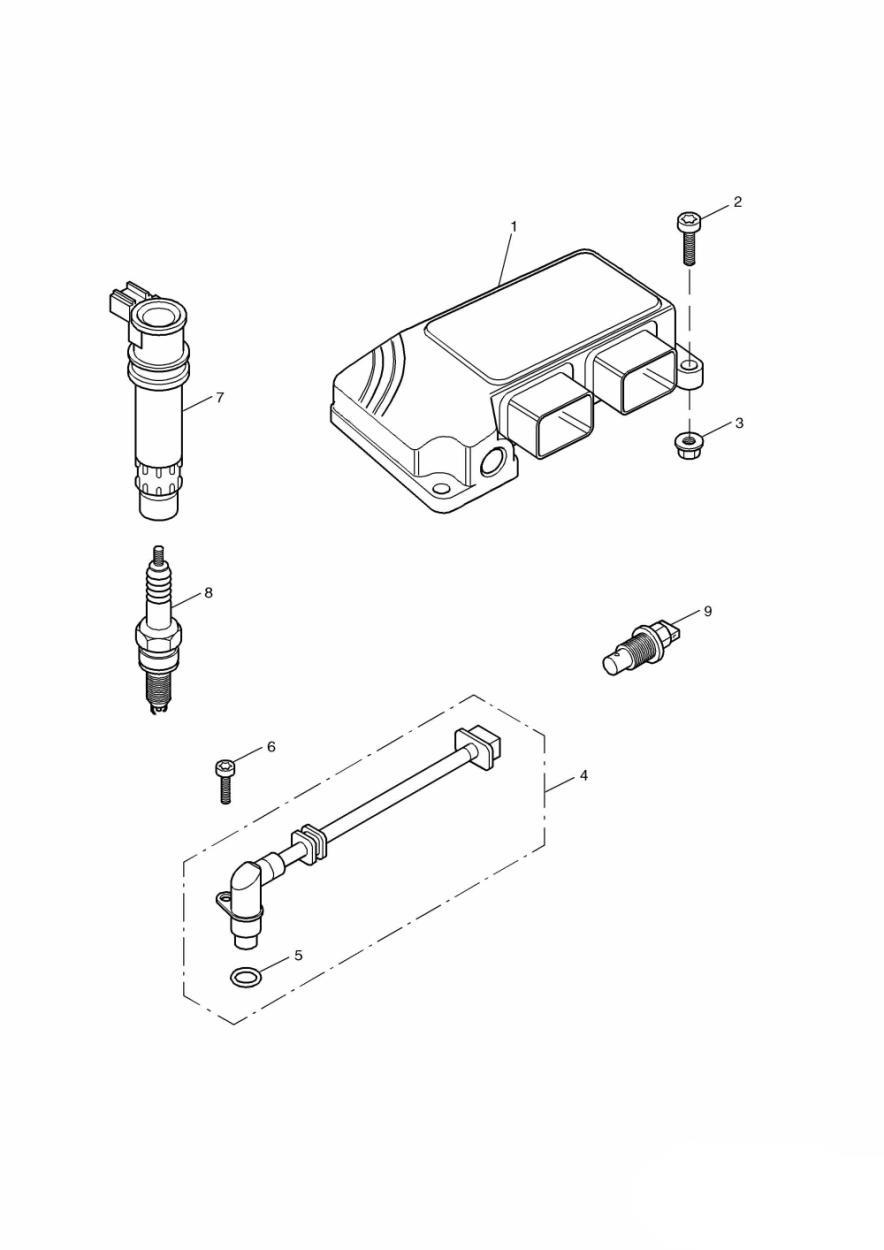

Engine Management System
9 parts

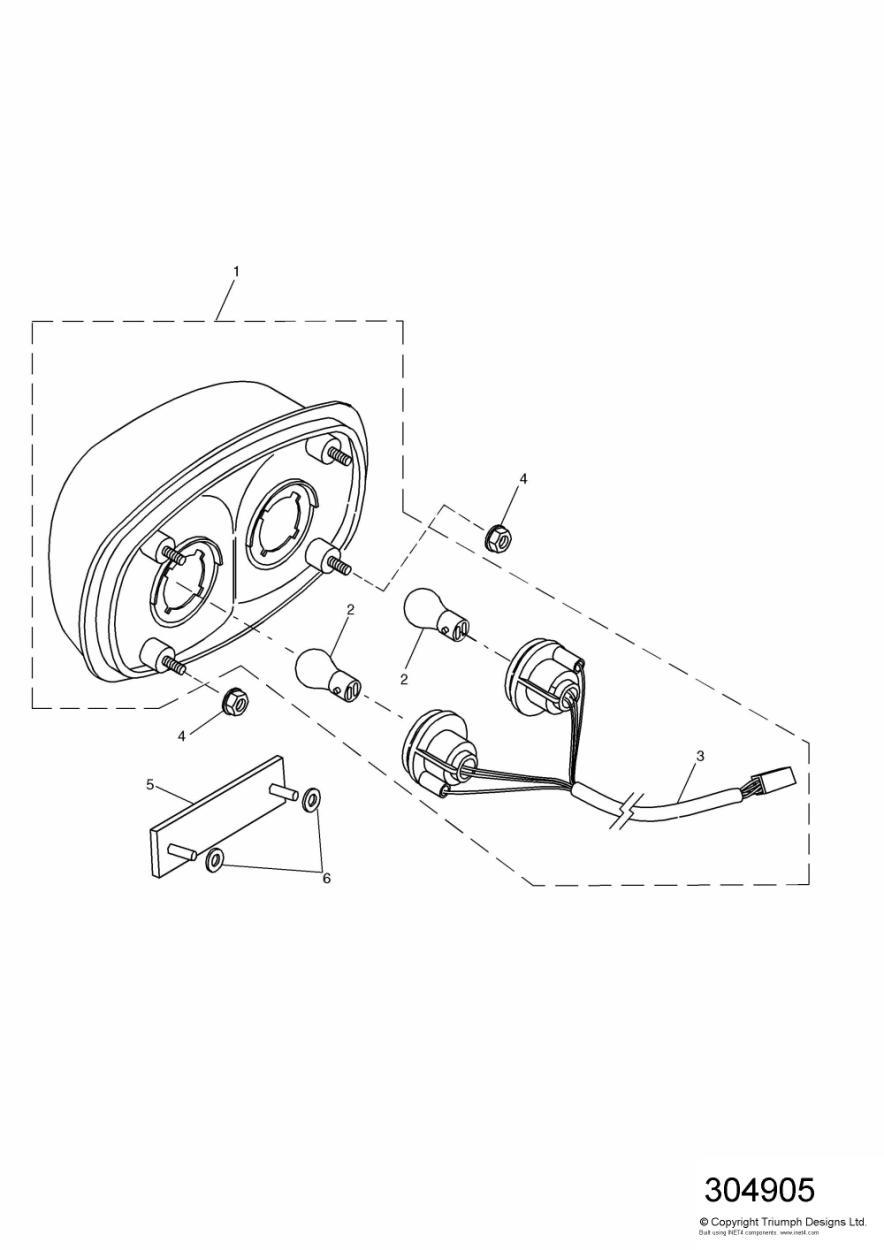

Rear Lamps
7 parts

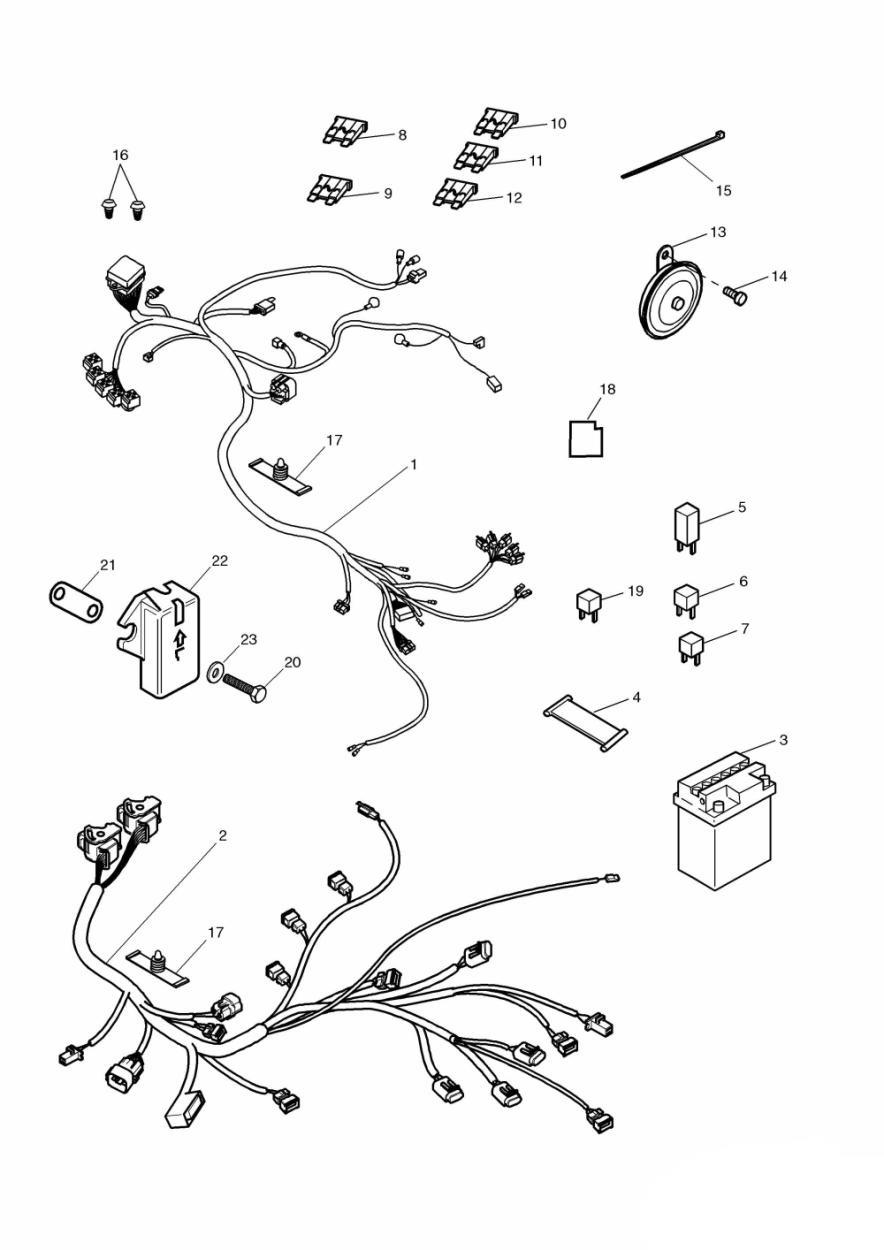

Electrical Equipment
28 parts

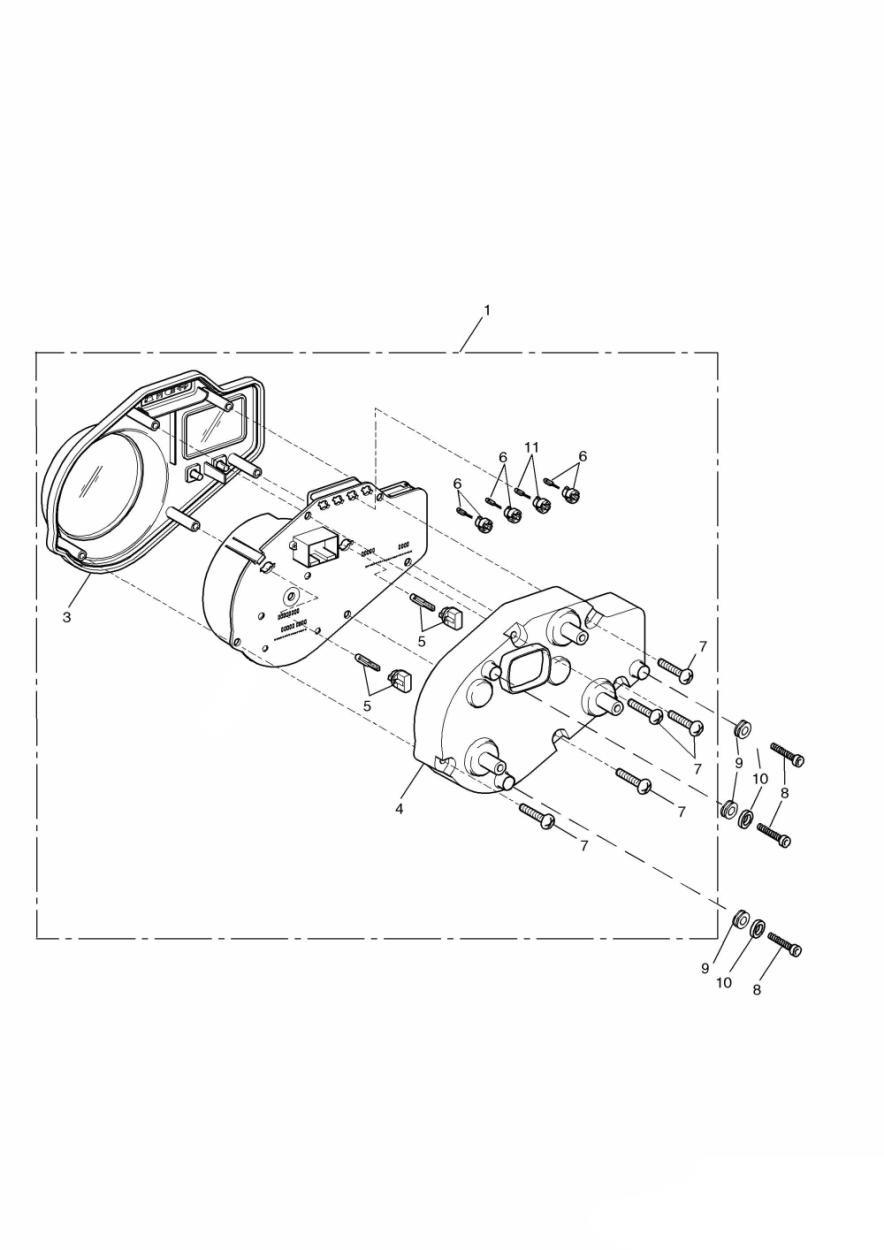

Instruments
10 parts

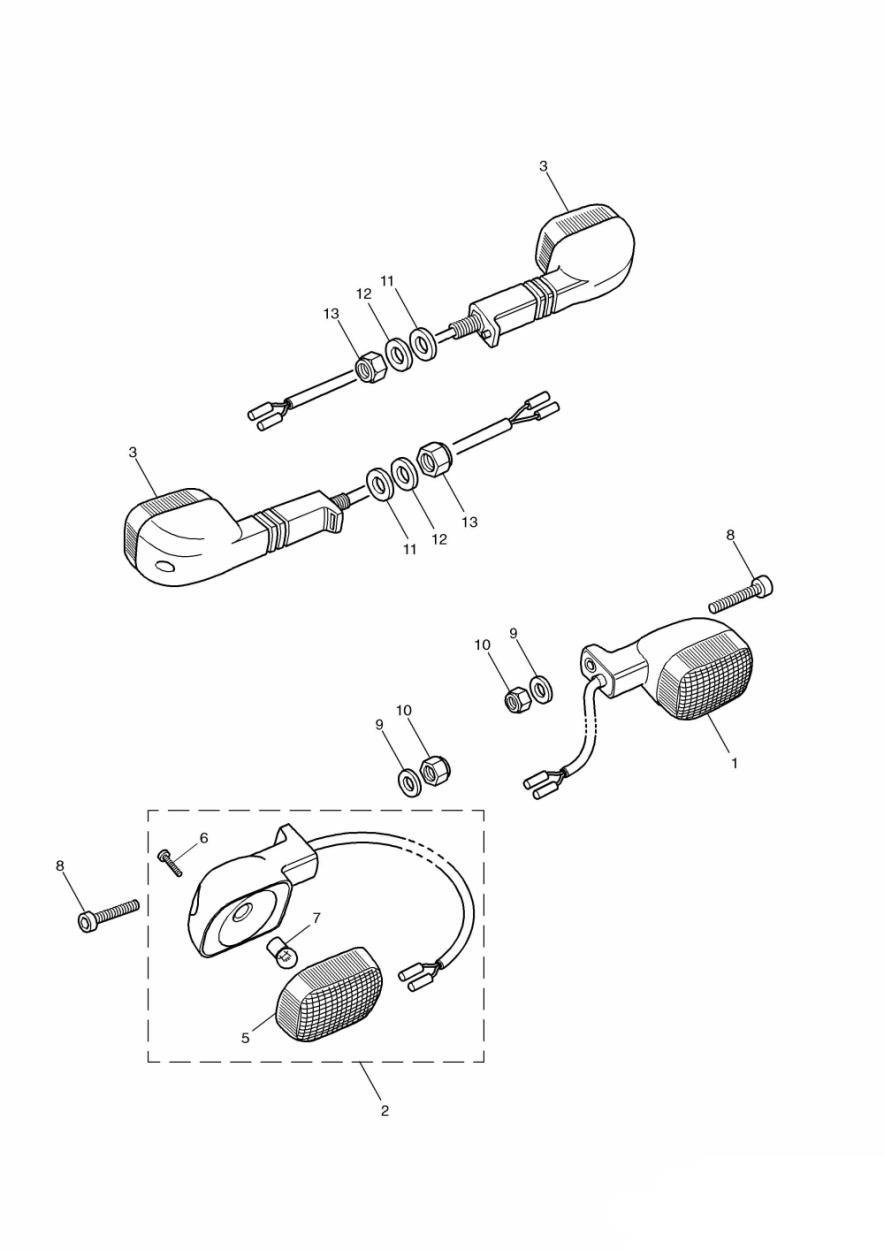

Indicators
13 parts
Ignition Switch & Lock Set
15 parts

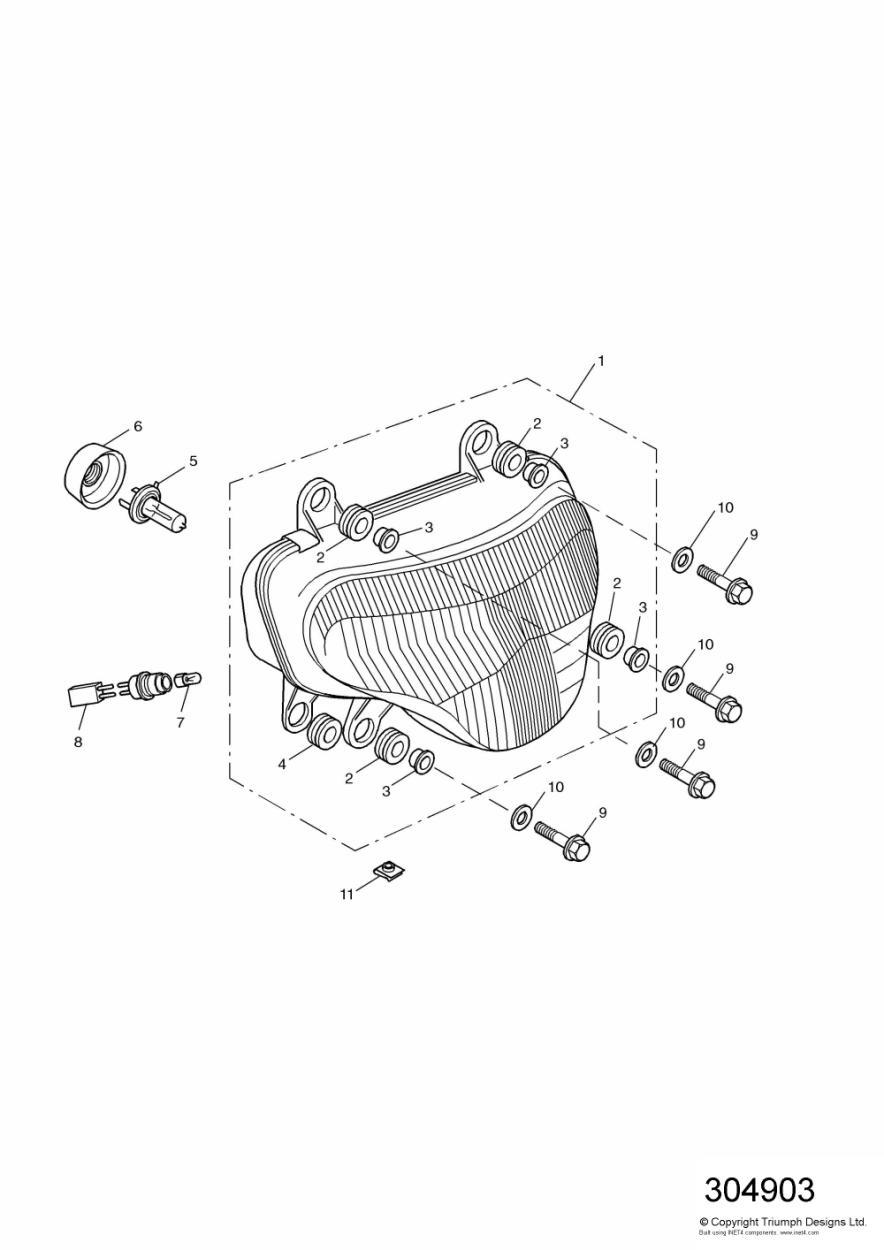

Headlight/Mountings
13 parts
77 parts you can order online
Every part below appears in Triumph’s Electrical System diagrams for the TT600 and is priced and orderable online. Open a part to see what it fits and to buy it.
Alternator/Starter VIN 171121 and higher
T3330836 Bolt, Cap/Hd, M12 x 30, Raw
Backordered at Triumph · expected Nov 6
$6.68
On backorderT3550846 Washer, M12 x 30 x 8
$10.22
AvailableT3051135 Screw, Cap/Hd, M6 x 30, Enc
$1.99
AvailableT3051069 Screw, Cap/Hd, M6 x 10, Enc, Raw
$1.99
AvailableT1300889 Kit, Regulator Rectifier
Low stock at Triumph
$422.46
Limited availabilityT3205067 Bolt, HHF, Lghtd, M6 x 25, Slv
$2.27
AvailableT3600115 O Ring
$3.14
AvailableT3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041
$3.00
AvailableT3555007 Spring Washer, M5
$1.99
AvailableT1310008 Starter Solenoid Assy
$67.75
AvailableT3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc
$1.99
AvailableT1310038 Starter Solenoid, Bracket
$3.71
AvailableT3350003 Locknut, Flanged, M6 x 1
$1.99
AvailableAlternator/Starter VIN 171120 and lower
T3550763 Washer, 10.75 x 30 x 4
$3.49
AvailableT3350300 Nut, M6 x 1.0, Slv
$1.99
In stock in Brea1310009-T0301 Terminal Kit, Starter Solenoid
Backordered at Triumph · expected Nov 6
$11.69
On backorderEngine Management System
T3331234 Screw, Torx, P/H, M6 x 20, Slv
$4.91
In stock in BreaT1290038 Sensor
$179.56
AvailableT1290239 O Ring, Crankshaft Sensor
Low stock at Triumph
$4.91
Limited availabilityT3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc
$1.99
In stock in BreaT1290037 Ignition Coil, Plug Top, 4-Cyl
Low stock at Triumph
$158.43
Limited availabilityT1290023 Spark plug
$16.20
In stock in BreaT1297000 Sensor, Air Temperature
$53.23
AvailableRear Lamps
2700054-T0301 Bulb, 12v 21w/5w
Low stock at Triumph
$6.16
Limited availabilityT2700670 Harness
$47.51
AvailableT2700493 Nut & Washer Assy, M5, Slv
$1.99
AvailableT2707111 Reflex Reflector
$9.15
AvailableT3550253 Washer, Dia 5 mm, Retaining
$1.99
In stock in BreaElectrical Equipment
T2500020 Battery,12V, 10 AH
$114.90
In stock in BreaT2506717 Kit, Battery, EU, YTX12-BS, UK, LHS
Backordered at Triumph · we’ll confirm the ship date after you order
$96.59
On backorderT2501740 Battery Strap
Low stock at Triumph
$9.23
Limited availabilityT2500531 Relay, Indicator, 2 (4) x 10W
$89.79
AvailableT2501705 Relay, Changeover
$18.79
AvailableT2508033 Relay, Efi
Low stock at Triumph
$36.05
Limited availability2500810-T0301 Fuse 10 amp
$1.99
AvailableT2505035 Fuse 40 amp
$1.99
AvailableT2500113 Horn Assembly, Hi Tone
Low stock at Triumph
$38.72
Limited availabilityT3201228 Bolt, HHF, M8 x 14, Slv
$2.53
AvailableT3700015 Cable Tie, 185.7 Long
$1.99
AvailableT3450255 Plug, Retainer, Plastic
Backordered at Triumph · we’ll confirm the ship date after you order
$1.99
On backorderT2500193 Rubber
Backordered at Triumph · expected Oct 30
$4.04
On backorderT3330390 Screw, H/Hd, M4 x 25, Slv, Enc
$2.53
AvailableT3555021 Washer, 4.3X16.0X1.0
$1.99
AvailableT2500259 Relay, Grommet
$3.81
AvailableT2500223 Alternator Fly Lead
$64.23
AvailableInstruments
T2502055 Housing
$76.60
AvailableT3331414 Screw, S/Tap, Tx, 5 x 16
$1.99
In stock in BreaT3020097 Grommet, Instruments
$1.99
In stock in BreaT3551178 Washer, M5 x 15 x 1.6
$1.99
In stock in BreaIndicators
T2705340 Indicator lamp
Low stock at Triumph
$60.64
Limited availabilityT2705345 Indicator lamp
$60.64
AvailableT2705235 Indicator lamp
Low stock at Triumph
$53.16
Limited availabilityT2705236 Indicator lamp
$53.16
AvailableT2700672 Lens
$9.46
AvailableT2700673 Screw
$1.99
AvailableT3050334 Screw, Cap/Hd, M6 x 20, Slv
$1.99
AvailableT3551283 Washer, M10, 10.5x18x1.6, Slv
$1.99
AvailableT3550229 Washer, 15.2 x 10 x 1, Plated
$1.99
In stock in BreaT3551140 Washer, Serrated, Lock, M10
$1.99
AvailableT3350302 Nut, M10, Slv
$1.99
AvailableIgnition Switch & Lock Set
T2500213 Ignition Switch
$246.47
AvailableT2500441 Lock Assy, Seat
$126.74
AvailableT2500440 Key, Uncut
$18.79
AvailableT2500105 Key, Cut
$73.17
AvailableT3330184 Screw, C'sunk Tx, M6 x 25, Slv
$1.99
AvailableT3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv
$2.43
AvailableT3330327 Bolt, Shear, M6 x 22, Enc
$4.85
In stock in BreaT3550436 Washer, M6, Elongated
$4.12
In stock in BreaT3050341 Screw, Cap/Hd, M5 x 10, Slv
Low stock at Triumph
$3.51
Limited availabilityT3050144 Screw, Cap HD, M5x30, SS
Low stock at Triumph
$2.09
Limited availabilityT3050342 Screw, Cap/Hd, M5 x 16, Slv
Low stock at Triumph
$2.64
Limited availabilityHeadlight/Mountings
T3020153 Grommet, 13 x 3 x 10
$1.99
AvailableT3010702 Flanged Sleeve, 6.4 x 10 x 8.5
$5.35
AvailableT2700001 Bulb, H4 60/55W, 12V, Type 1, Clear
$16.38
AvailableT2700938 Bulb, W5W, 5W, 12V, Clear
$3.98
AvailableT3331299 Screw, Pan/HD, Tx, M6 x 40, Slv
$3.42
AvailableT3351052 Nut, Captive, 4-5.5mm
$4.04
Available
