Fuel & Exhaust Systems

Triumph TT600 · 6 diagrams

6 exploded diagrams for the fuel & exhaust systems of the Triumph TT600, covering the TT600. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.

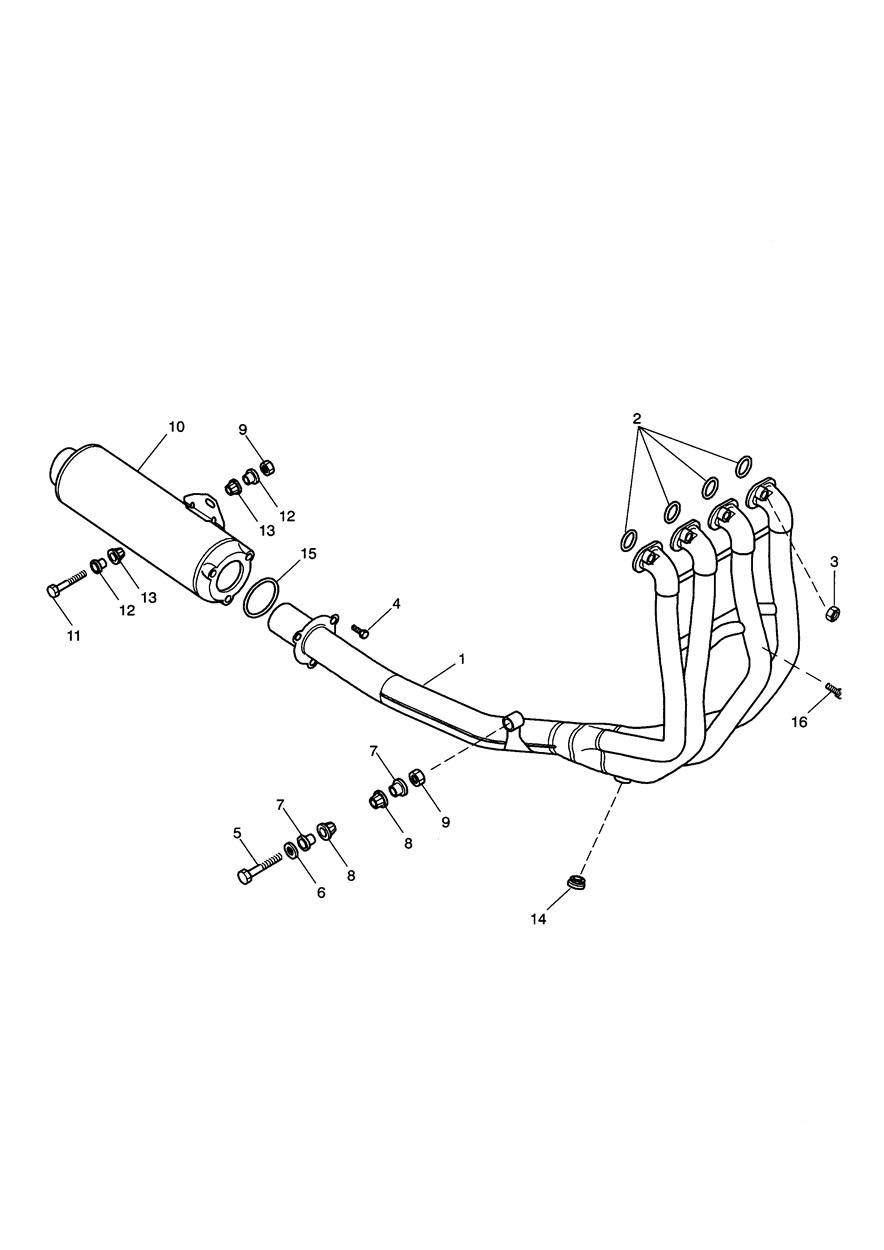

Exhaust System exploded diagram
Exhaust System
20 parts

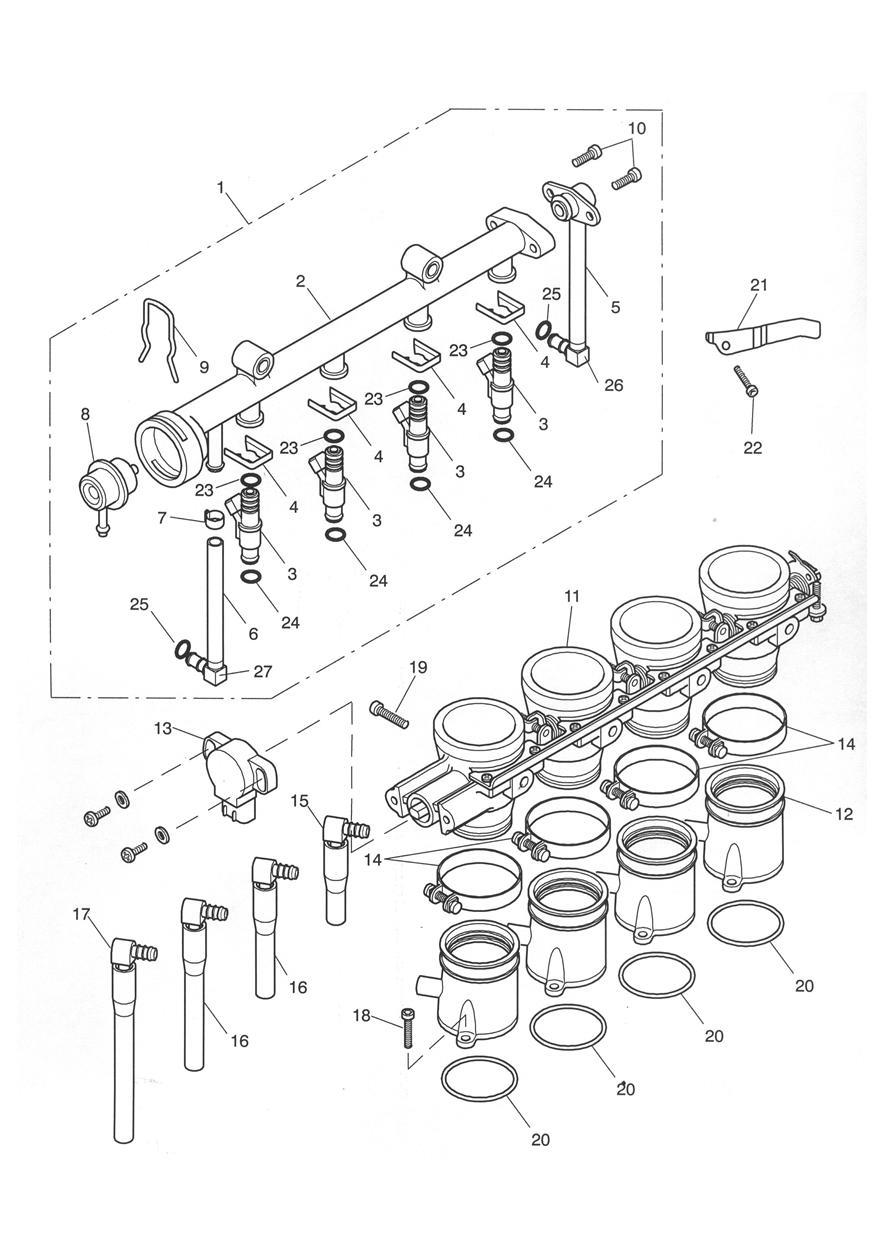

 Throttle/Injector and Fuel Rail exploded diagram
Throttle/Injector and Fuel Rail
30 parts

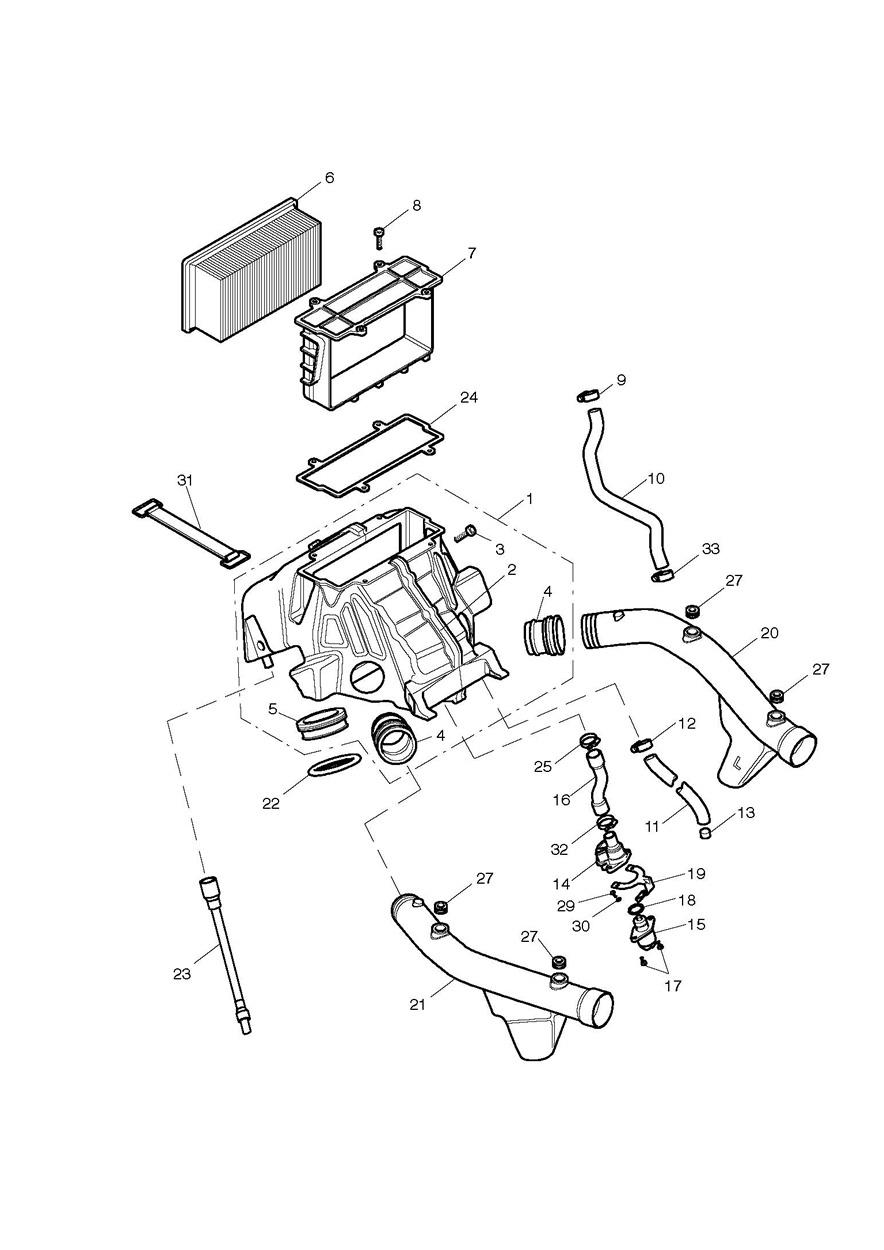

 Airbox exploded diagram
Airbox
39 parts

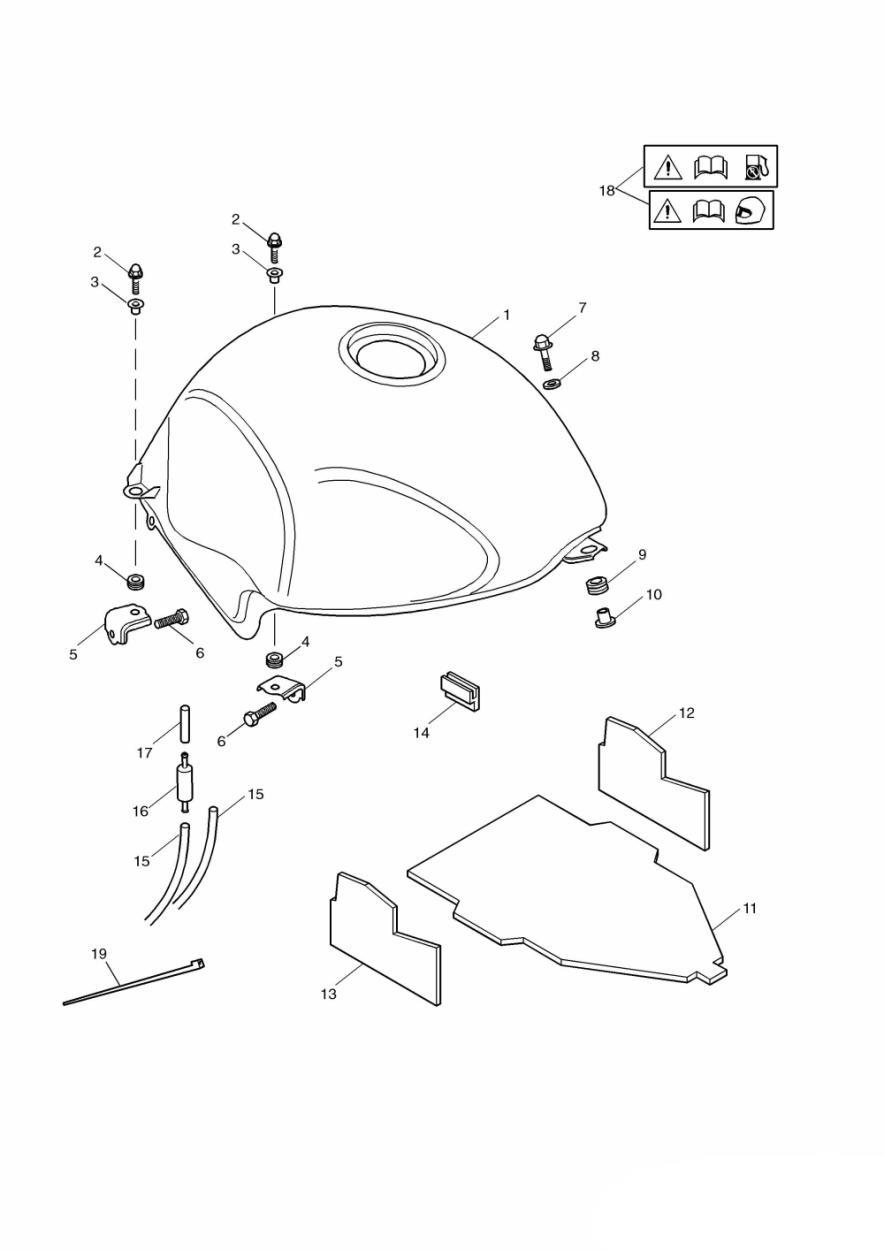

 Fuel Tank and Fittings exploded diagram
Fuel Tank and Fittings
29 parts

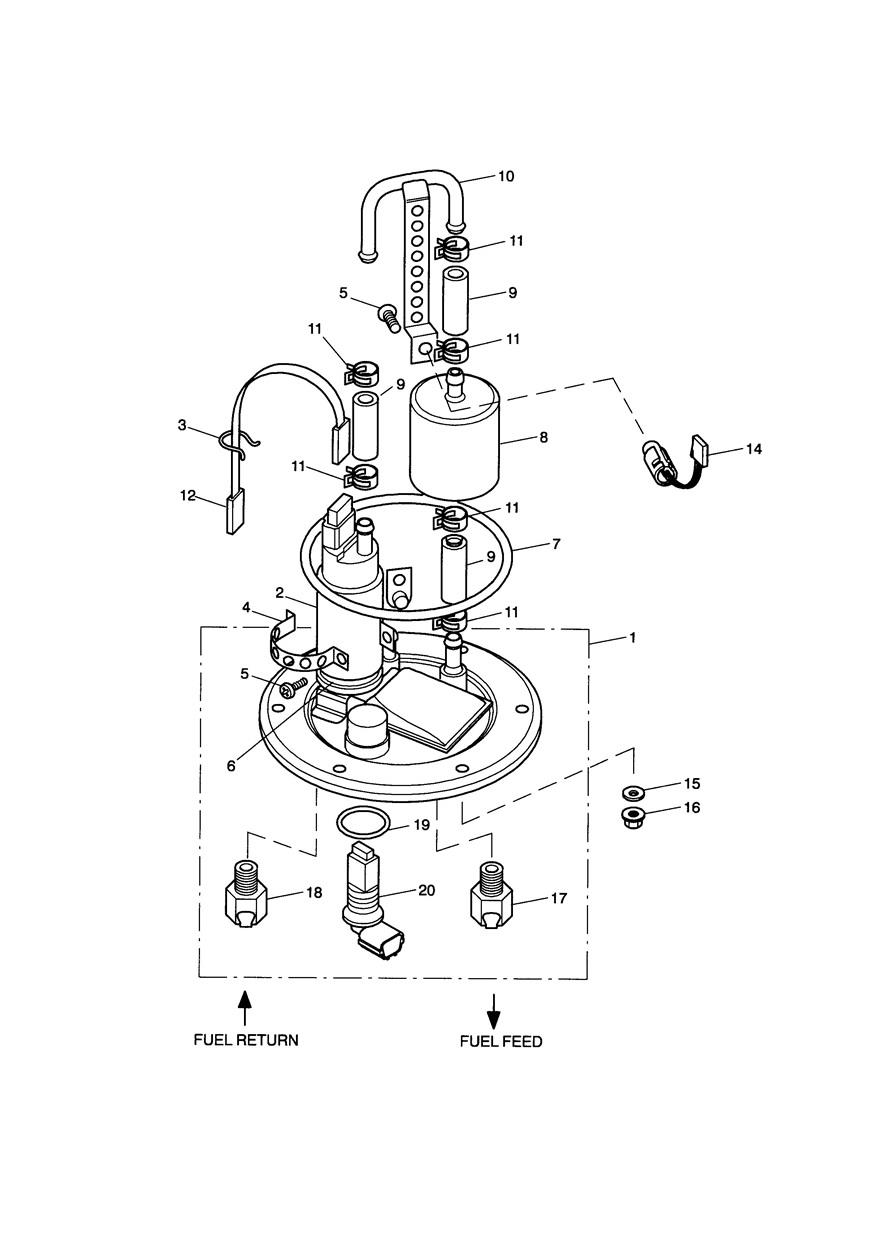

 Fuel Pump and Filter exploded diagram
Fuel Pump and Filter
21 parts

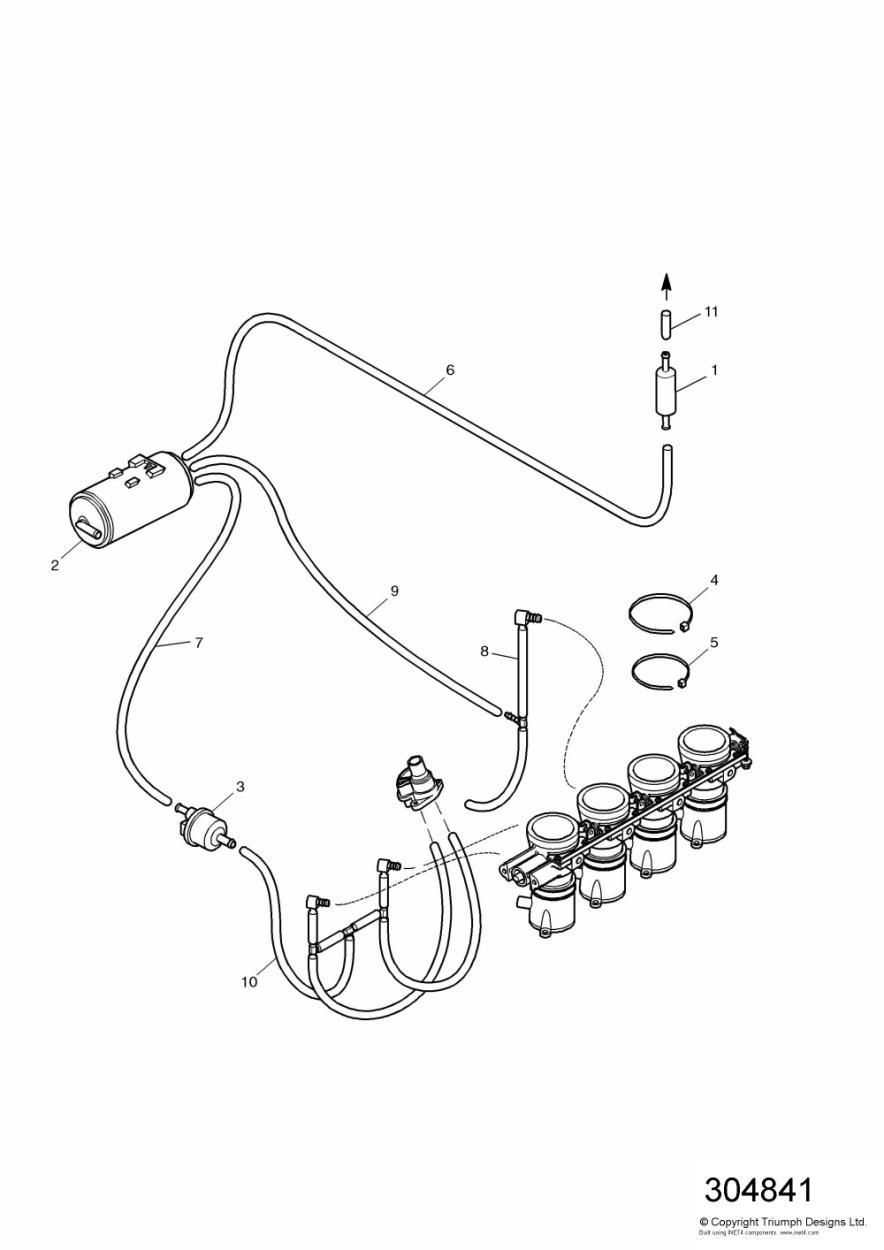

 Evaporative Loss Equipment exploded diagram
Evaporative Loss Equipment
11 parts
