Rear Swinging Arm & Rear Suspension
Triumph TT600 · 3 diagrams
3 exploded diagrams for the rear swinging arm & rear suspension of the Triumph TT600, covering the TT600. Every part number is Triumph’s own, with SCM’s price and what is on the shelf in Brea.
26 parts you can order online
Every part below appears in Triumph’s Rear Swinging Arm & Rear Suspension diagrams for the TT600 and is priced and orderable online. Open a part to see what it fits and to buy it.
Most of these parts are shared with the Daytona 600 & 650 and Speed Four books. 1 part is specific to the TT600.

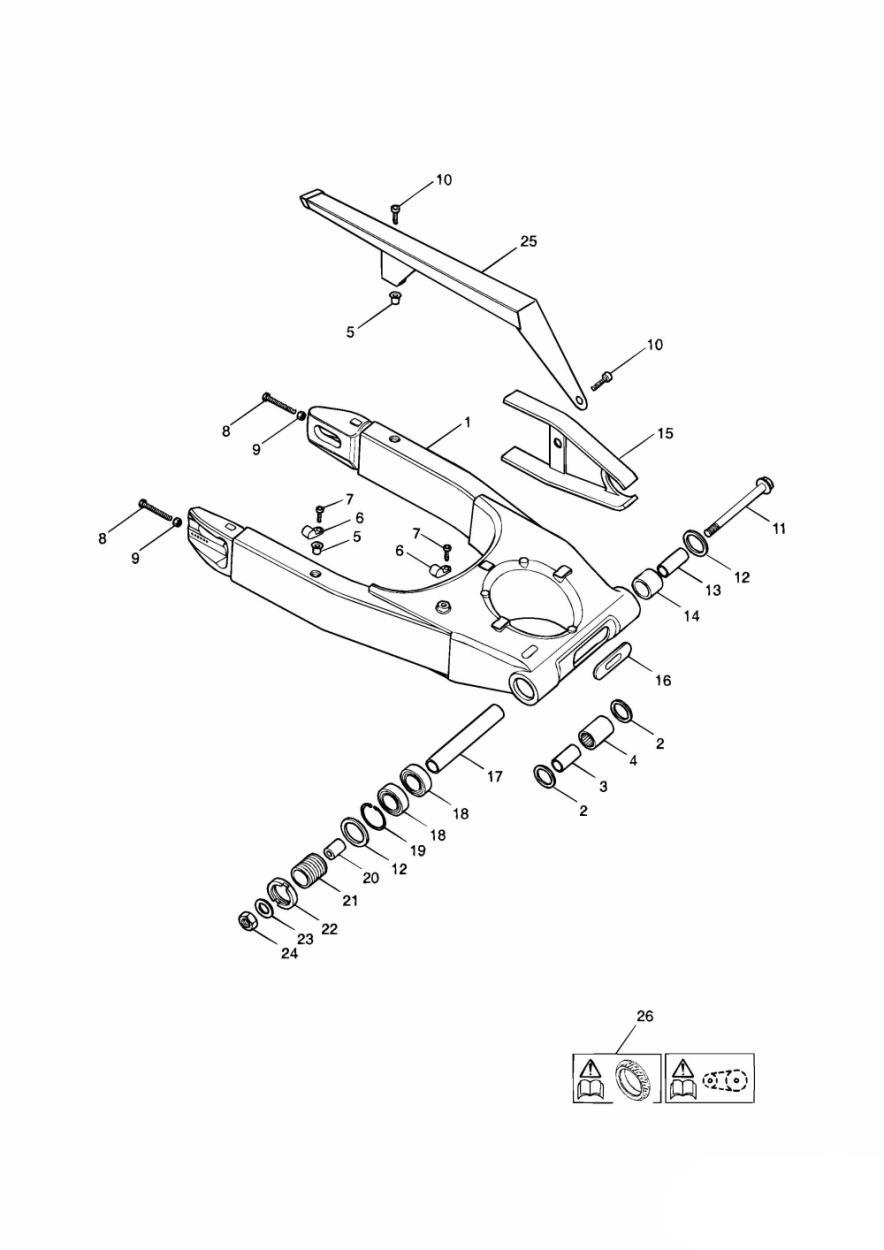

Swinging Arm
T3600066 Oil Seal, 24 17 5
Low stock at Triumph
$7.90
Limited availabilityT2050019 Sleeve
$37.24
AvailableT3800152 Needle bearing
$34.40
AvailableT3350210 Threaded Insert, M6, Open Ended
Backordered at Triumph · expected Oct 23
$1.99
On backorderT3700191 P Clip, ID 10mm
Low stock at Triumph
$3.00
Limited availabilityT3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv
$2.43
AvailableT3203204 Screw, H/Hd, M8 x 55, Slv
$2.17
AvailableT3350303 Nut, M8, Silver
$1.99
AvailableT3330727 Screw, But/Hd, M6 x 20, Slv
$3.14
AvailableT2054050 Spindle
$69.55
AvailableT3600044 Oil Seal, 35 25 4
Low stock at Triumph
$9.67
Limited availabilityT2053188 Sleeve, Ground, 25 x 17 x 37
Low stock at Triumph
$8.82
Limited availabilityT3800014 Roller bearing
Backordered at Triumph · expected Nov 20
$13.26
On backorderT2058300 Rubbing Strip
$48.42
AvailableT3800506 Bearing, Ball, 17 x 35 x 10
$17.86
AvailableT3500204 Circlip, Int, 35 x 1.5
$1.99
AvailableT2054063 Spacer, 25 x 17 x 8.5
$7.41
AvailableT3555032 Washer, 17 x 30 x 3
Low stock at Triumph
$2.93
Limited availabilityT3350155 Locknut, Thin, M16
Low stock at Triumph
$8.71

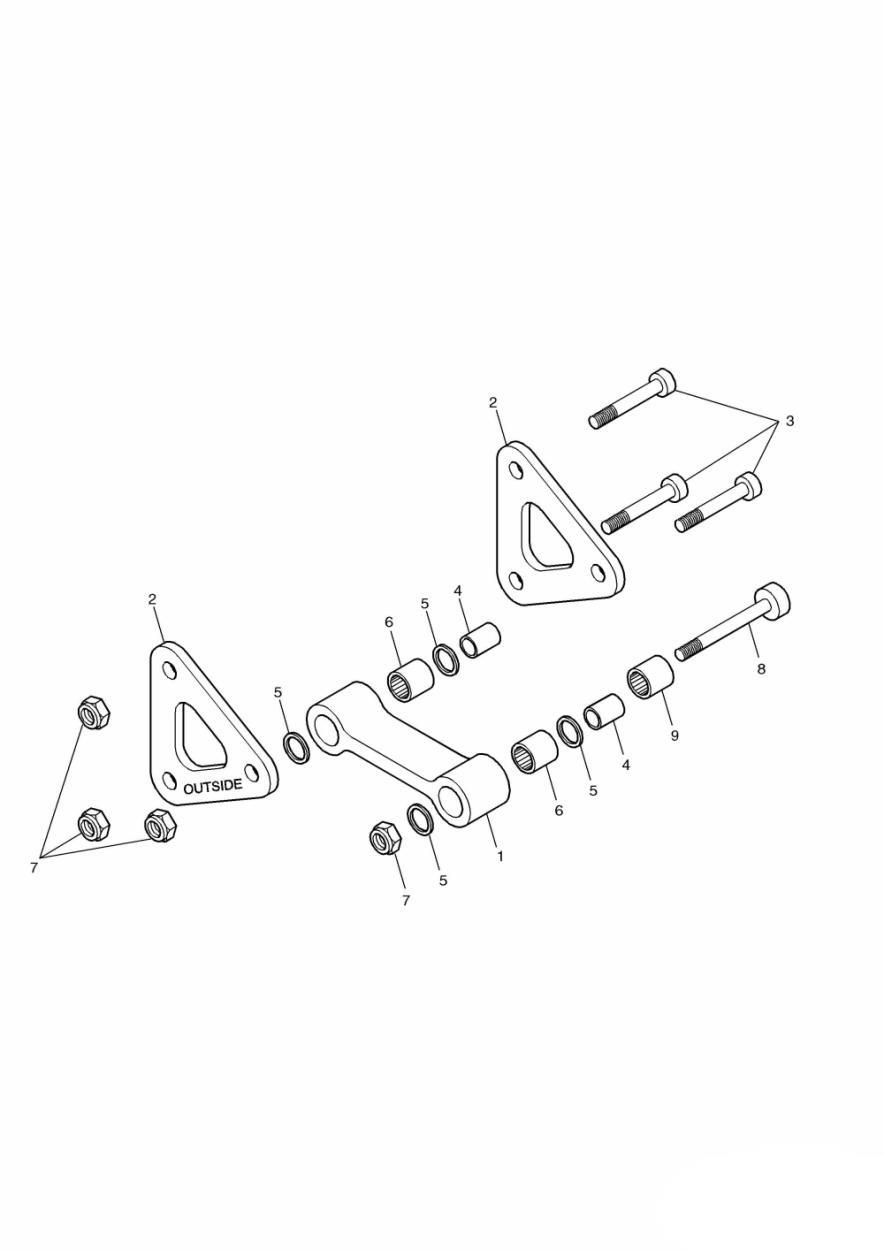

Limited availabilityRear Suspension Linkage
T3202329 Bolt, Torx, M10 x 65, Slv
Backordered at Triumph · expected Nov 6
$7.83
On backorderT3350250 Locknut, Flanged, M10
$3.85
In stock in BreaT2052104 Kit Sleeve and Bolt
$20.24
AvailableT3330331 Bolt, Skt HD, M10 x 88
$8.10
AvailableT2052101 Sleeve, Linkage Bolt, 17.9 Lg
$12.20
Available
